The items described above provide sufficient security for a typical MAS
system. For more highly-sensitive applications, system designers should
consider employing application level encryption into their polling protocols
to further protect their systems. Third party software tools are available for
adding encryption, and these should be considered as part of any advanced
encryption scheme.

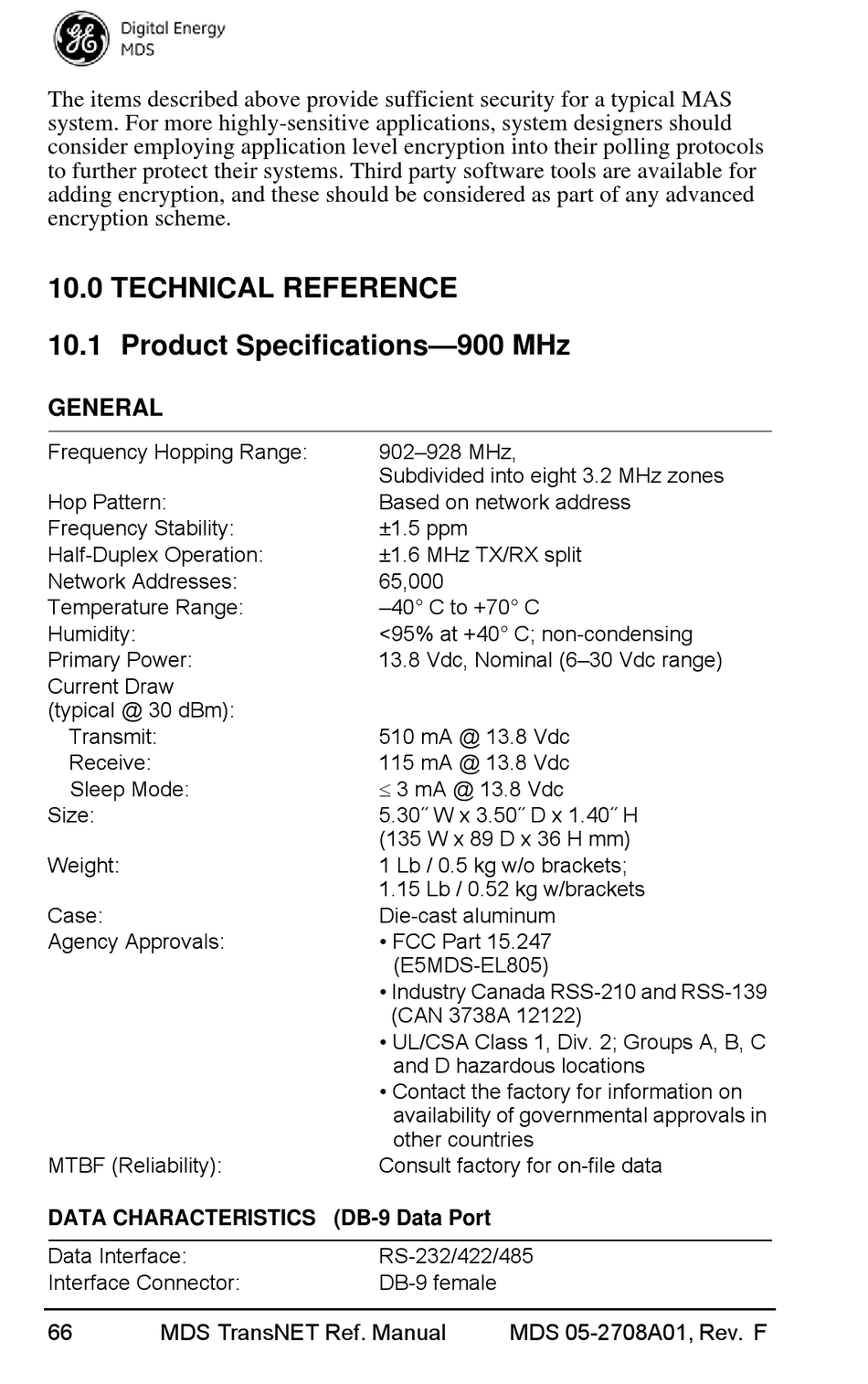

10.0 TECHNICAL REFERENCE

10.1 Product Specifications—900 MHz
GENERAL
Frequency Hopping Range:
Hop Pattern:
Frequency Stability:
Half-Duplex Operation:
Network Addresses:
Temperature Range:
Humidity:
Primary Power:
Current Draw
(typical @ 30 dBm):
Transmit:
Receive:
Sleep Mode:
Size:
Weight:
Case:
Agency Approvals:
MTBF (Reliability):
DATA CHARACTERISTICS (DB-9 Data Port
Data Interface:
Interface Connector:
66 MDS TransNET Ref. Manual
902–928 MHz,
Subdivided into eight 3.2 MHz zones
Based on network address
±1.5 ppm
±1.6 MHz TX/RX split
65,000
–40° C to +70° C
<95% at +40° C; non-condensing
13.8 Vdc, Nominal (6–30 Vdc range)
510 mA @ 13.8 Vdc
115 mA @ 13.8 Vdc
 3 mA @ 13.8 Vdc
5.30˝ W x 3.50˝ D x 1.40˝ H
(135 W x 89 D x 36 H mm)
1 Lb / 0.5 kg w/o brackets;
1.15 Lb / 0.52 kg w/brackets
Die-cast aluminum
• FCC Part 15.247
(E5MDS-EL805)
• Industry Canada RSS-210 and RSS-139
(CAN 3738A 12122)
• UL/CSA Class 1, Div. 2; Groups A, B, C
and D hazardous locations
• Contact the factory for information on
availability of governmental approvals in
other countries
Consult factory for on-file data
RS-232/422/485
DB-9 female
MDS 05-2708A01, Rev. F
