REMOVING THE CABINET FRONT AND DOOR SWITCH

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.

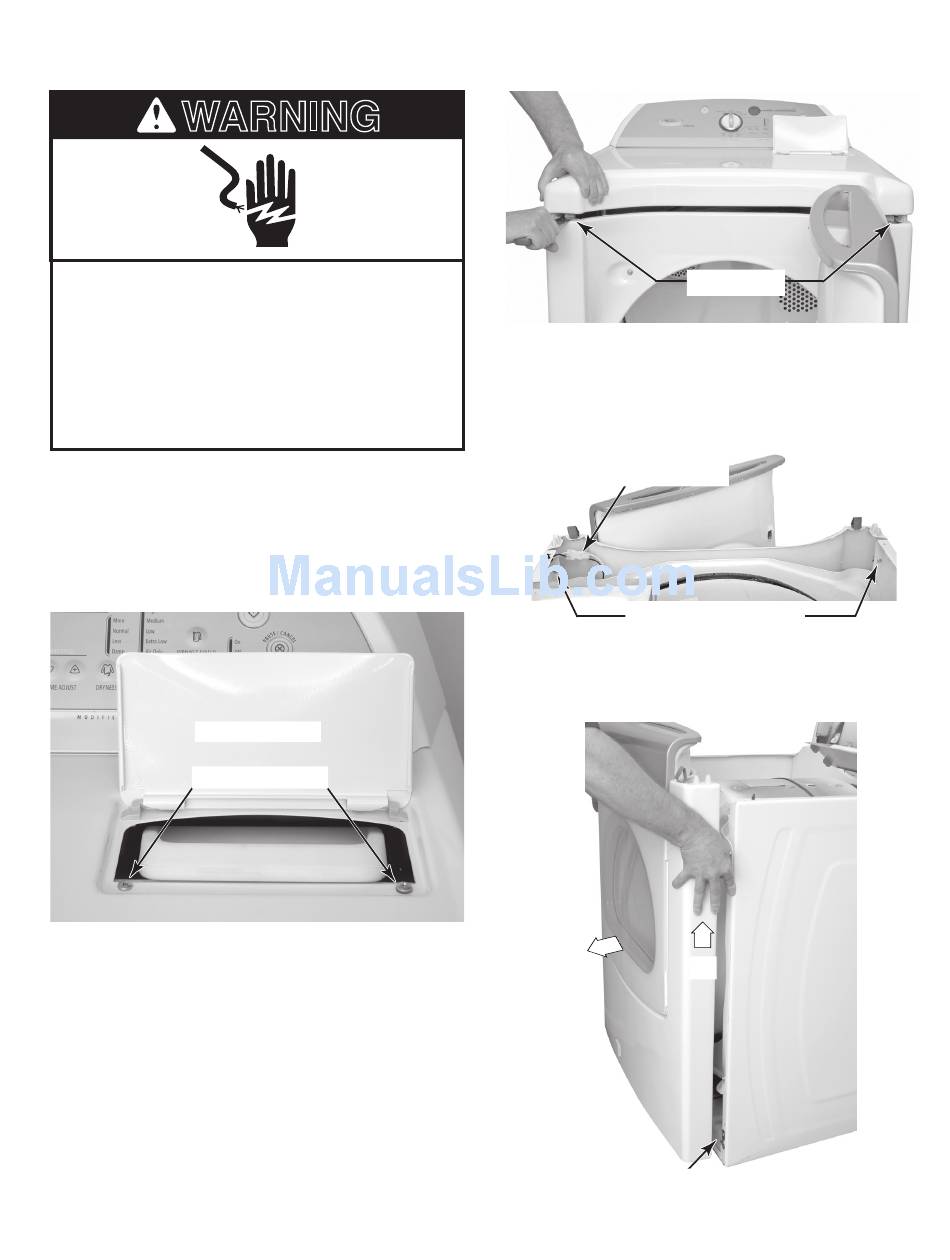

3. Raise the lint screen lid and remove the
two screws from the top of the lint screen
air duct.
Lint Screen Lid
Top Duct Screws
4. Partially open the dryer door.
5. To remove the cabinet front:
a) While lifting the front corners of the
cabinet top, (see the top right photo),
press a putty knife against the left and
right top locks and release them from
the top. Rotate the cabinet top up and
rest it against a wall.
b) Disconnect the door switch connector
from the harness connector.
c) Remove the two 5/16˝ hex-head screws
from the cabinet front.
Door Switch Connector
Cabinet Front Screws
d) Lift the front panel of the cabinet, un-
hook it from the bottom two hangers,
and remove it.
Pull
Out
Hanger
Continued on the next page.
4-5
Top Locks
Lift
