Whirlpool WED6400SB0 Parts List

29" electric dryer
Hide thumbs


Advertisement

Quick Links

CABINET PARTS
29"ELECTRIC DRYER
For Model: WED6400SW0, WED6400SB0, WED6400SG0
(White/Grey)
(Black)
(Biscuit/Gold)
11−07 Litho in U.S.A. (LT.)
Part No. 8181367 Rev.A.
1

Advertisement

loading

  Related Manuals for Whirlpool WED6400SB0

  Summary of Contents for Whirlpool WED6400SB0

  • Page 1 CABINET PARTS 29"ELECTRIC DRYER For Model: WED6400SW0, WED6400SB0, WED6400SG0 (White/Grey) (Black) (Biscuit/Gold) 11−07 Litho in U.S.A. (LT.) Part No. 8181367 Rev.A.
  • Page 2: Cabinet Parts

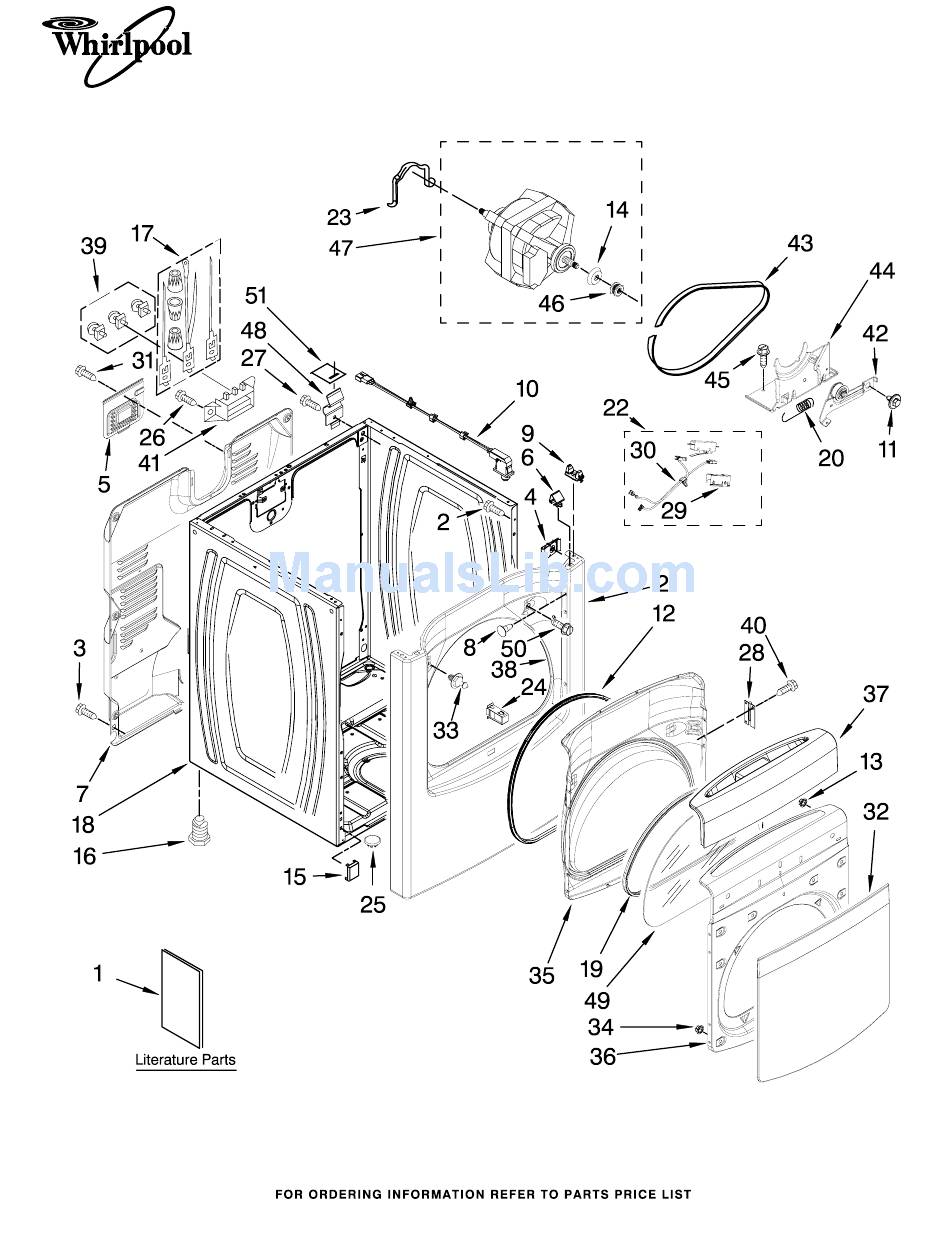

    For Model: WED6400SW0, WED6400SB0, WED6400SG0 Illus. Part DESCRIPTION Literature Parts W10054150 Tech Sheet W10054090 Guide, Quick Start W10054070 Use & Care Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT677818 Dryer 343641 Screw, 10−16 x 1/2 693995 Screw, 8−18 x 3/8...
  • Page 3 TOP AND CONSOLE PARTS For Model: WED6400SW0, WED6400SB0, WED6400SG0 (White/Grey) (Black) (Biscuit/Gold) 8181367...
  • Page 4 TOP AND CONSOLE PARTS For Model: WED6400SW0, WED6400SB0, WED6400SG0 (White/Grey) (Black) Illus. Part DESCRIPTION 1 W10106830 Screw 8558863 Bracket, Console 237446 Washer (Top/Chute) 8563974 User Interface Panel, Console W10110325 White W10110330 Black W10110328 Biscuit 3196537 Screw, 8−18 x 5/8 8564265 Cover, Rear 8 W10003770 Screw, 6−19 x 3/64...
  • Page 5 BULKHEAD PARTS For Model: WED6400SW0, WED6400SB0, WED6400SG0 (White/Grey) (Black) (Biscuit/Gold) 8181367...
  • Page 6 BULKHEAD PARTS For Model: WED6400SW0, WED6400SB0, WED6400SG0 (White/Grey) (Black) Illus. Part DESCRIPTION 8544805 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3387459 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 8573836 Shield, Exhaust 8566498 Thermostat, HI−Limit 9 W10169881 Kit, Thermal Cut−Off (Includes Illus.
  • Page 7 OPTIONAL PARTS (NOT INCLUDED) For Model: WED6400SW0, WED6400SB0, WED6400SG0 8181367 (White/Grey) (Black) (Biscuit/Gold) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair W10071550 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.)

This manual is also suitable for:

Wed6400sg0Wed6400sw0
