Whirlpool WED6400SB1 Parts List

Whirlpool WED6400SB1 Parts List

29" electric dryer
Hide thumbs Also See for WED6400SB1:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

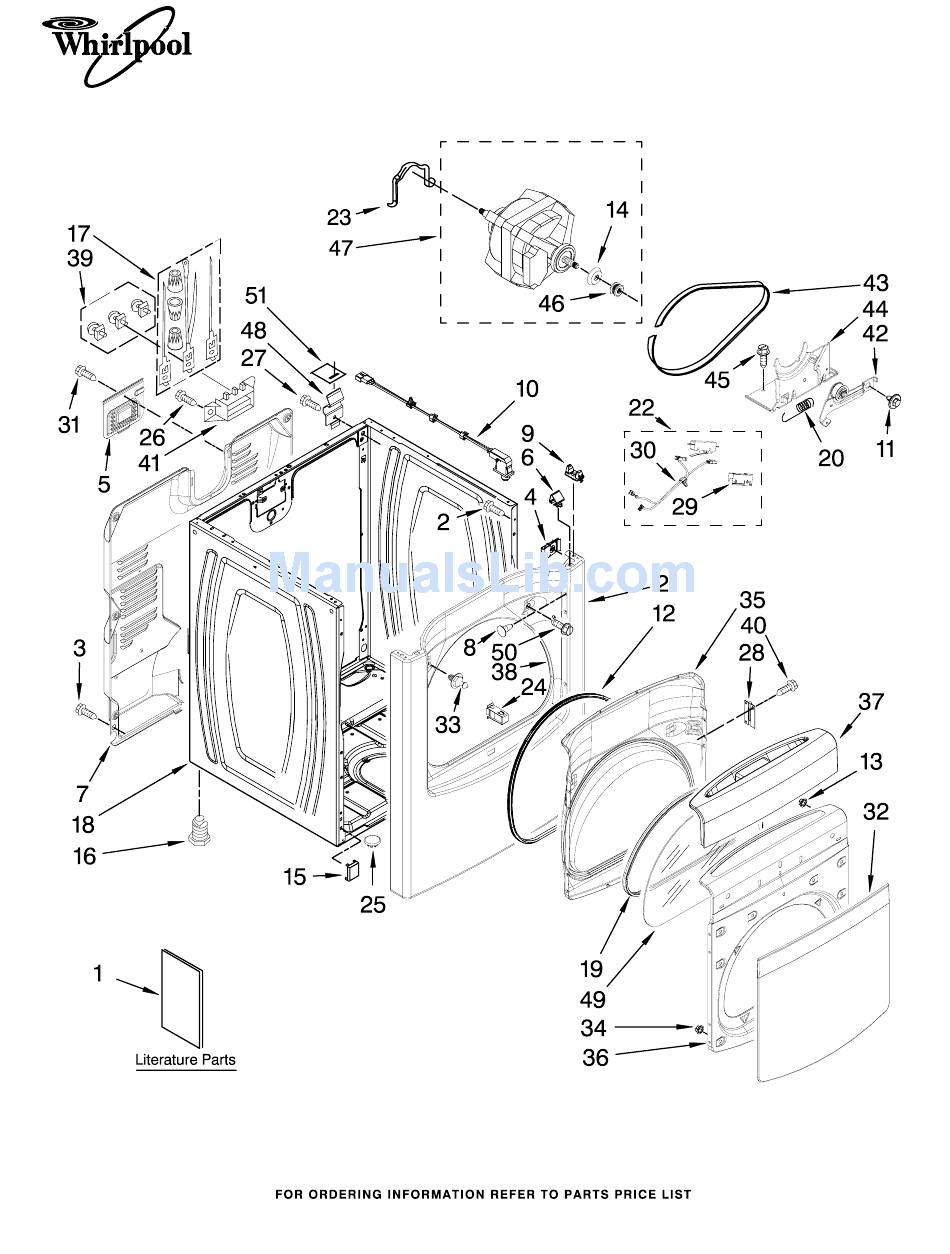

CABINET PARTS
29"ELECTRIC DRYER
For Model: WED6400SW1, WED6400SB1, WED6400SG1
(White/Grey)
(Black)
(Biscuit/Gold)
Part No. W10118947 Rev. A
2−07 Litho in U.S.A. (LT.)
1
