4

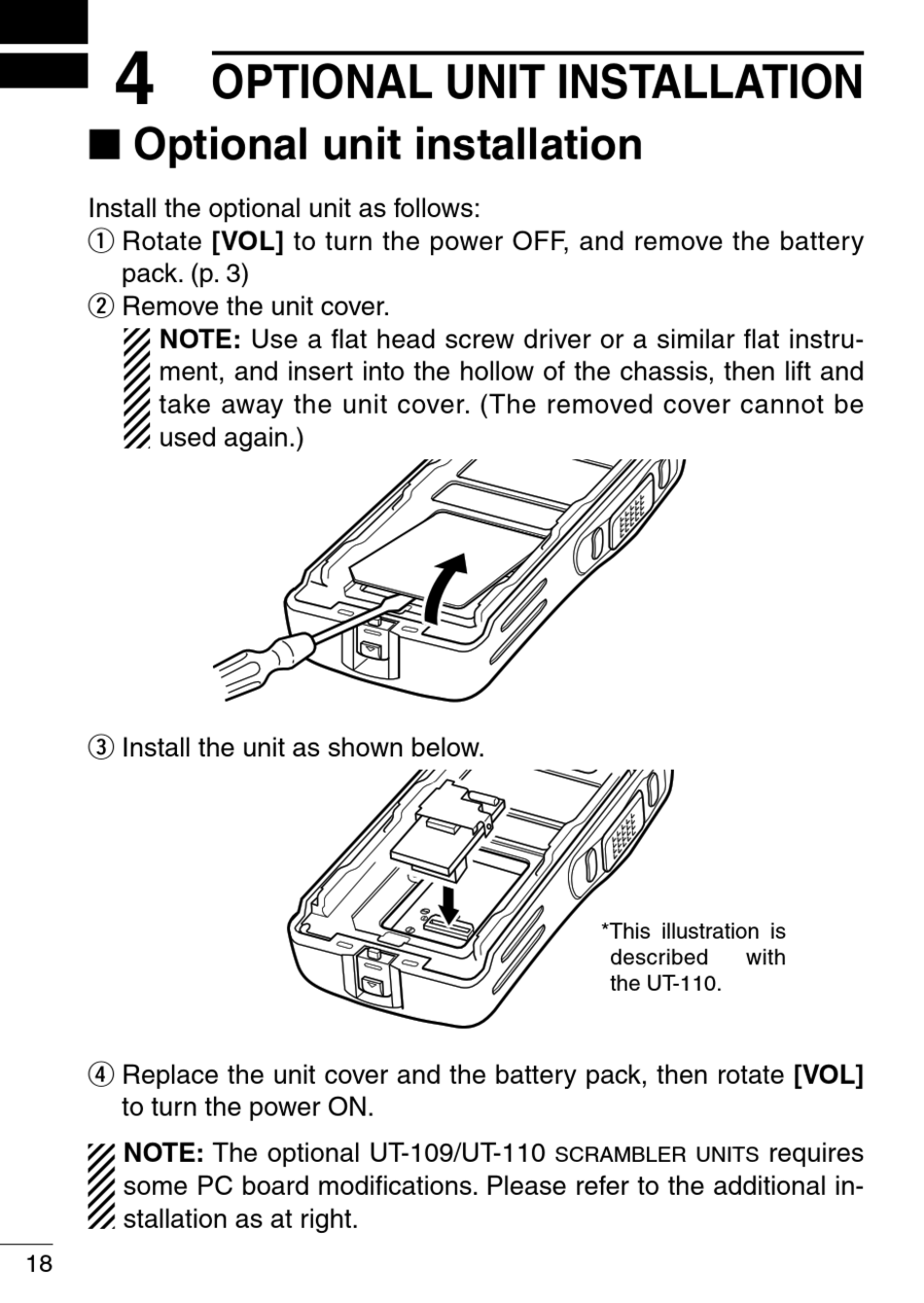

■ Optional unit installation

Install the optonal unt as follows:
q Rotate [VOL] to turn the power OFF, and remove the battery
pack. (p. 3)
w Remove the unt cover.
NOTE: Use a flat head screw drver or a smlar flat nstru-
ment, and nsert nto the hollow of the chasss, then lft and
take away the unt cover. (The removed cover cannot be
used agan.)
e Install the unt as shown below.
r Replace the unt cover and the battery pack, then rotate [VOL]
to turn the power ON.
NOTE: The optonal UT-109/UT-110
some PC board modficatons. Please refer to the addtonal n-
stallaton as at rght.
18
OPTIONAL UNIT INSTALLATION
*This illustration is
described
the UT-110.
scrambler units
with
requres
