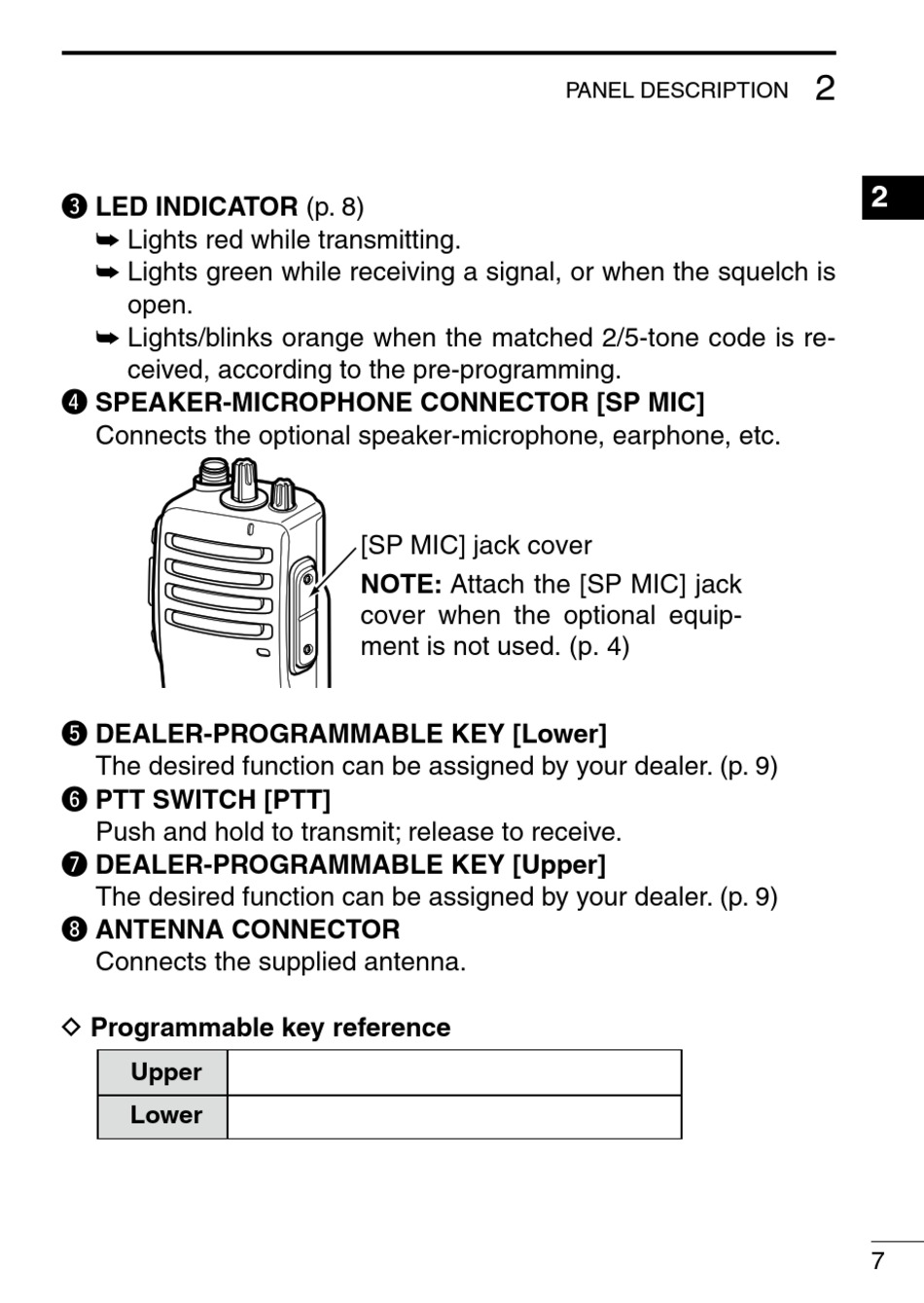

Icom IC-F15 Instruction Manual page 11

e LED INDICATOR (p. 8)
➥ Lghts red whle transmttng.
➥ Lghts green whle recevng a sgnal, or when the squelch s
open.
➥ Lghts/blnks orange when the matched 2/5-tone code s re-
ceved, accordng to the pre-programmng.
r SPEAKER-MICROPHONE CONNECTOR [SP MIC]
Connects the optonal speaker-mcrophone, earphone, etc.
t DEALER-PROGRAMMABLE KEY [Lower]
The desred functon can be assgned by your dealer. (p. 9)
y PTT SWITCH [PTT]
Push and hold to transmt; release to receve.
u DEALER-PROGRAMMABLE KEY [Upper]
The desred functon can be assgned by your dealer. (p. 9)
i ANTENNA CONNECTOR
Connects the suppled antenna.
D Programmable key reference
Upper
Lower
[SP MIC] jack cover
NOTE: Attach the [SP MIC] jack
cover when the optonal equp-
ment s not used. (p. 4)
PANEL DESCRIPTION
