Controls and Indicators

Control Lamps

Display

16

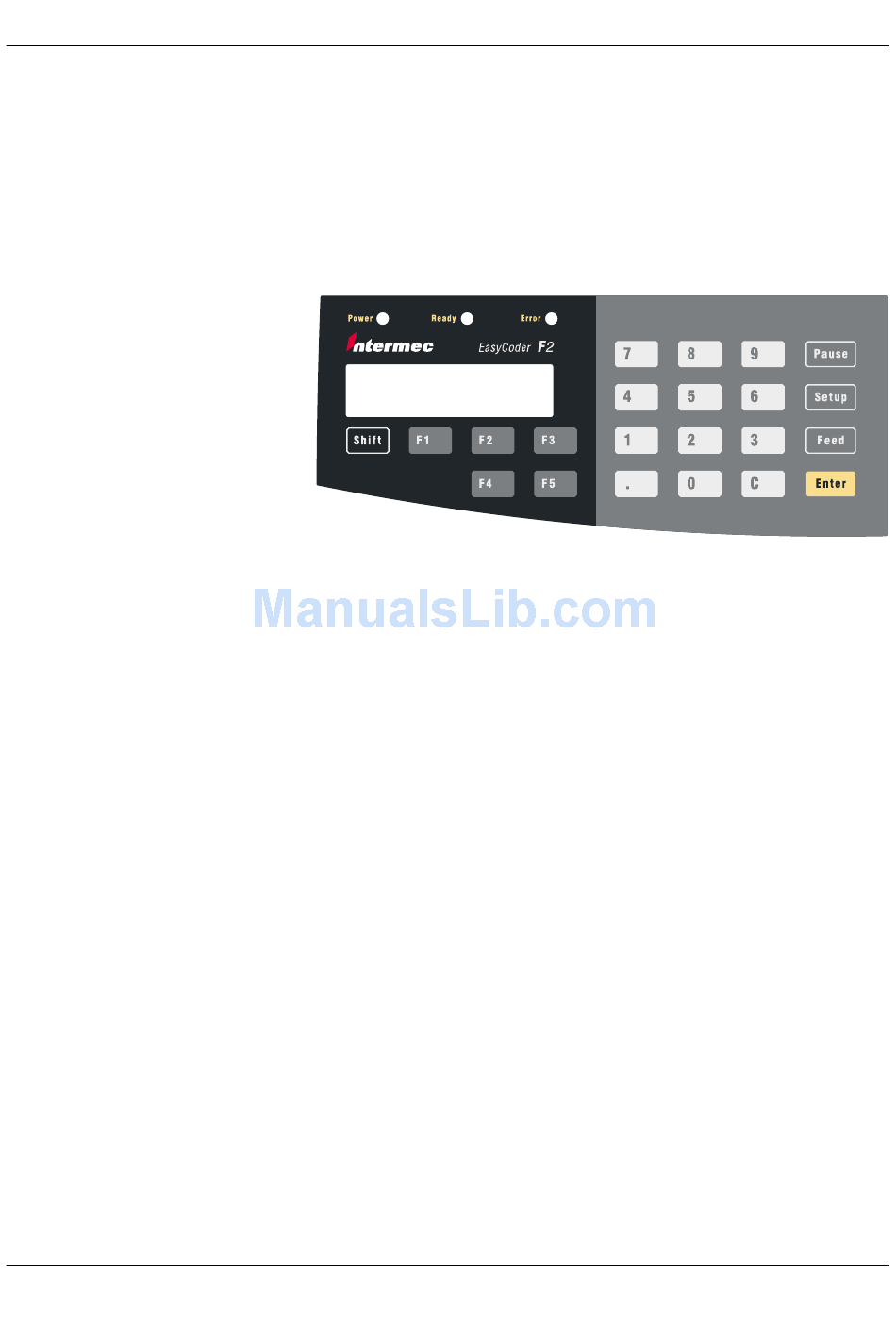

The EasyCoder F2 has several ways of communicating directly
with its operator: three control lamps, a display window, a mem-
brane-switch keyboard with 22 keys, a big "Feed" button on
the printer's front, and a beeper. Only some of the keys are used
with IPL.
The control lamps are colored LEDs (Light Emitting Diodes)
and indicate the following conditions:
• Power (green):
On
Off
• Ready (green):
On
Flashing
Off
• Error (red):
On
Flashing
Off
The display window contains an LCD (Liquid Crystal Display)
with background illumination and two lines of text, each with
16 characters. It guides the operator through upgrading, startup,
and setup.
Power on
Power off
Media fault detected
Printer offl ine
Printer online
System fault detected
Printer overtemperature
OK
