Chapter 2: Installation

2.5 Jumper Settings

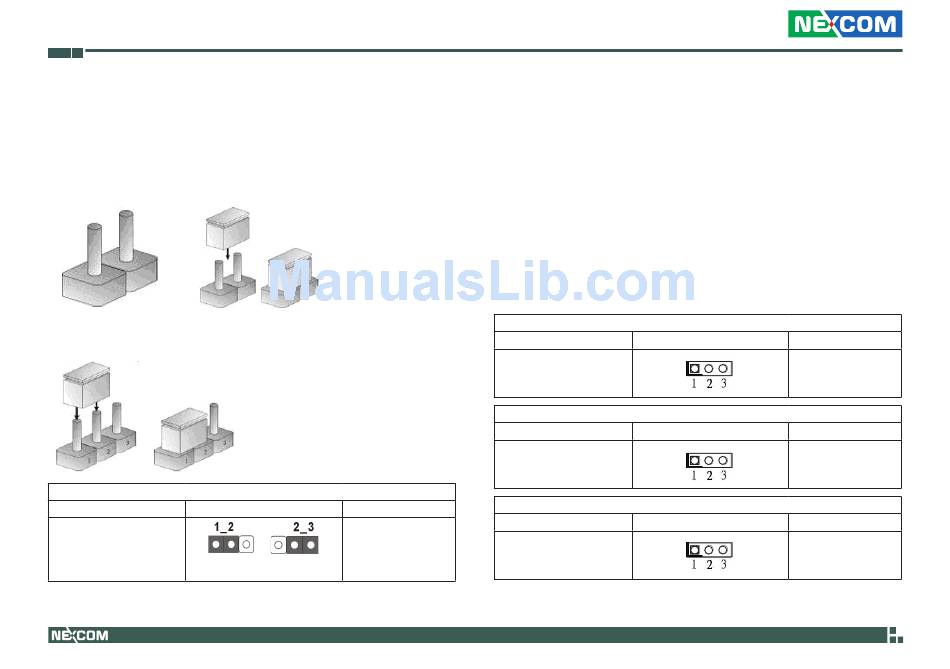

The illustration shows how jumpers are setup. When the jumper cap is
placed on pins, the jumper is "Short". If no jumper cap is placed on pins,
the jumper is"Open". The illustration shows a 3-pin jumper whose pin1
and pin2 are"Short"when jumper cap is placed on these 2 pins.
Three-Pin Jumpers: Pins 1 and 2 Are Short
Clear CMOS Jumper
Jumper
(3-pinCLRCMOS1)
(see p.8, No. 28)
Default
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
Setting Description
Clear CMOS
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and
reset the system parameters to default setup, please turn off
the computer and unplug the power cord from the power supply.
After waiting for 15 seconds, use a jumper cap to short pin2
and pin3 on CLRCMOS1 for 5 seconds. However, please do not
clear the CMOS right after you update the BIOS. If you need to
clear the CMOS when you just finish updating the BIOS, you
must boot up the system first, and then shut it down before you
do the clear-CMOS action. Please be noted that the password,
date, time, user default profile and MAC address will be cleared
only if the CMOS battery is removed.
Panel Power Selection
Jumper
(3-pin PNL_PWR1)
(see p.8, No. 2)
Backlight Power Selection
Jumper
(3-pin BKT_PWR1)
(see p.8, No. 3)
ATX/ AT Mode Selection
Jumper
(3-pin PWR_JP1)
(see p.8, No. 41)
10
Setting Description
1-2 : +3V
2-3 : +5V
Setting Description
1-2 : +5V
2-3 : +12V
Setting Description
1-2 : AT Mode
2-3 : AXT Mode
