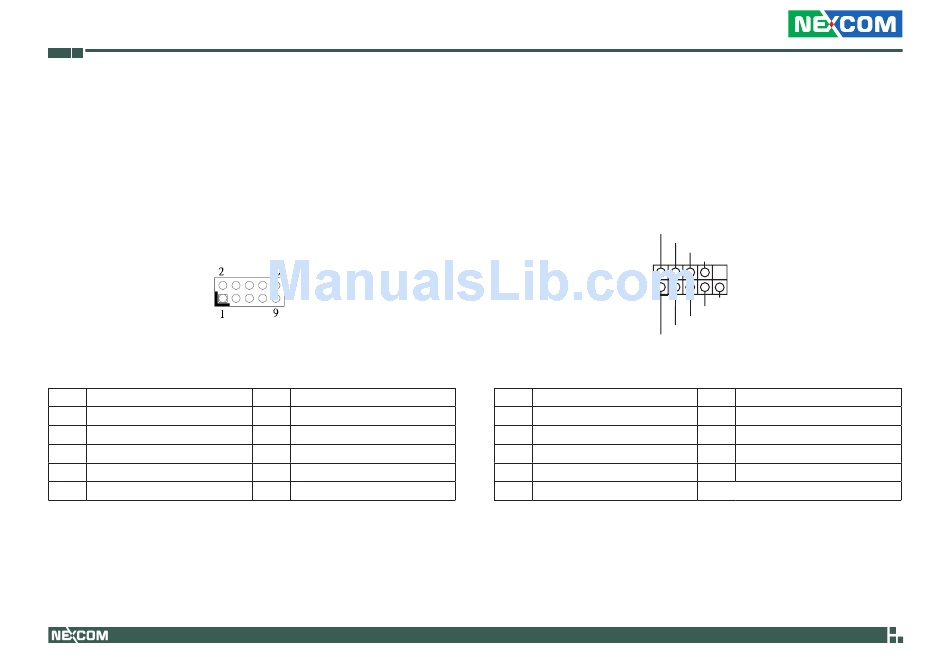

Digital Input/ Output Pin Header
(9-pin JGPIO1)
(see p.8, No.16)
Please connect the CPU fan cable to the connector and match the
black wire to the ground pin.
Pin Signal Name
1 Digital Output 0
3 Digital Output 1
5 Digital Output 2
7 Digital Output 3
9 JGPIO_PWR1
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Signal Name
2 Digital Input 0
4 Digital Input 1
6 Digital Input 2
8 Digital Input 3
10 GND
System Panel Header
(9-pin PANEL1)
(see p.8, No.22)
This header accommodates system front panel functions.
1
Pin Signal Name
1 HDLED+
3 GND
5 DUMMY
7 PLED-
9 GND
15
PLED+
PLED-
PWRBTN#
GND
DUMMY
RESET#
GND
HDLED-
HDLED+
Pin Signal Name
2 HDLED-
4 RESET#1
6 PLED+
8 PWRBTN#
