Chapter 2: Installation

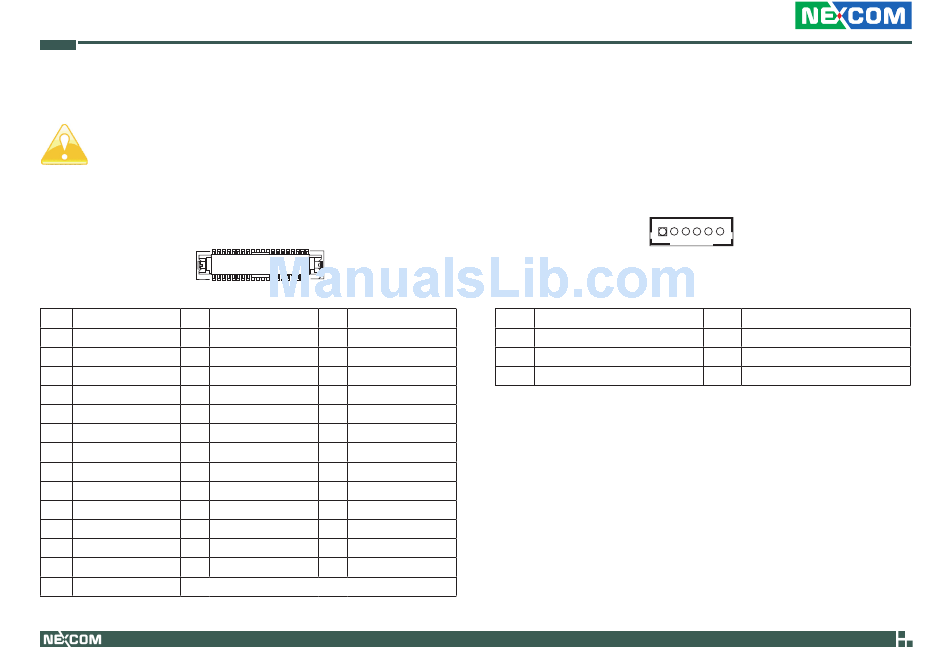

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT
place jumper caps over these headers and connectors. Placing
jumper caps over the headers and connectors will cause perma-
nent damage of the motherboard!
LVDS Panel Connector
(40-pin LVDS1)
1
(see p.8, No.1)
2
Pin Definition Pin
1 R_LVDD 2 R_LVDD
4 LDDC_CLK 5 LDDC_DATA
7 LVDS_A_DATA0 8 GND
10 LVDS_A_DATA1 11 GND
13 LVDS_A_DATA2 14 GND
16 LVDS_A_DATA3 17 GND
19 LVDS_A_CLK 20 GND
22 LVDS_B_DATA0 23 GND
25 LVDS_B_DATA1 26 GND
28 LVDS_B_DATA2 29 DPLVDD_EN
31 LVDS_B_DATA3 32 GND
34 LVDS_B_CLK 35 GND
37 CON_LBKLT_CTL_R 38 LCD_BLT_VCC
40 LCD_BLT_VCC
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
39
40
Definition Pin Definition
3 +3V
6 LVDS_A_DATA0#
9 LVDS_A_DATA1#
12 LVDS_A_DATA2#
15 LVDS_A_DATA3#
18 LVDS_A_CLK#
21 LVDS_B_DATA0#
24 LVDS_B_DATA1#
27 LVDS_B_DATA2#
30 LVDS_B_DATA3#
33 LVDS_B_CLK#
36 CON_LBKLT_EN_R
39 LCD_BLT_VCC
Inverter Power Control Wafer
(6-pin BLT_PWR2)
(see p.8, No.4)
Pin Signal Name
1 GND
3 CON_LBKLT_CTL
5 LCD_BLT_VCC
12
1
Pin Signal Name
2 GND
4 CON_LBKLT_EN
6 LCD_BLT_VCC
