Chapter 2 : Installation

2.5 Jumpers Setup

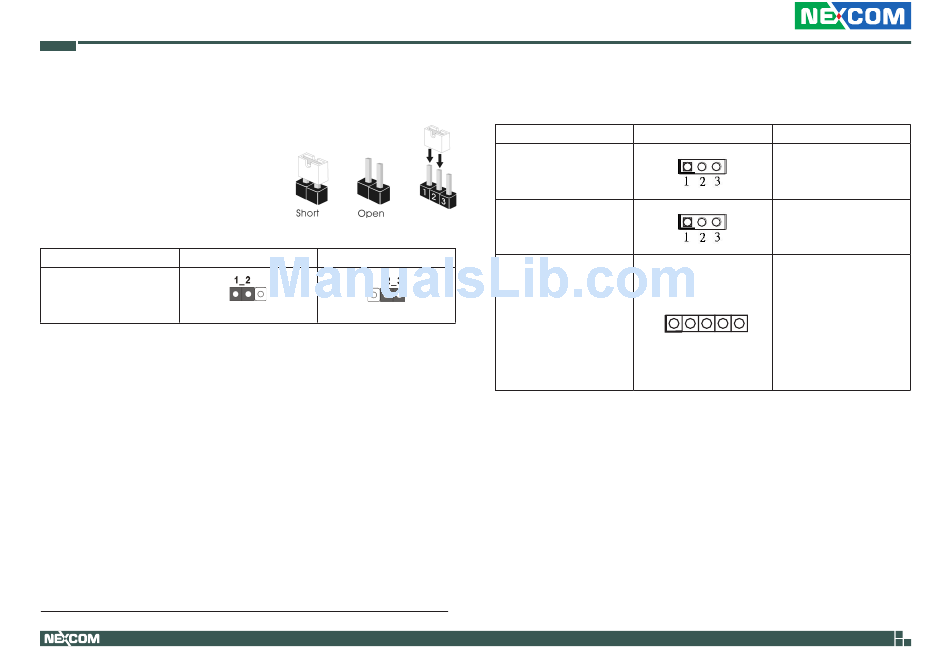

The illustration shows how jumpers are
setup. When the jumper cap is placed
on pins, the jumper is "Short". If no
jumper cap is placed on pins, the jumper
is "Open". The illustration shows a 3-pin
jumper whose pin1 and pin2 are "Short"
when jumper cap is placed on these 2 pins.
Jumper
Clear CMOS Jumper
(3-pin CLRCMOS1)
(see p.8, No. 39)
Note:
CLRCMOS1 allows you to clear the data in CMOS. To clear and
reset the system parameters to default setup, please turn off the
computer and unplug the power cord from the power supply. After
waiting for 15 seconds, use a jumper cap to short pin2 and pin3
on CLRCMOS1 for 5 seconds. However, please do not clear the
CMOS right after you update the BIOS. If you need to clear the
CMOS when you just finish updating the BIOS, you must boot up
the system first, and then shut it down before you do the clear-
CMOS action. Please be noted that the password, date, time, user
default profile and MAC address will be cleared only if the CMOS
battery is removed.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Setting
Description
Default
Clear CMOS
Jumper
ATX/AT Mode Selection
(3-pin PWR_JP1)
(see p.8, No. 22)
ATX/AT Mode Selection
(3-pin PWR_JP1)
(see p.8, No. 20)
COM Port Signal/Power
Setting Jumpers
(5-pin SET_CM2: see p.8, No. 2)
(5-pin SET_CM1: see p.8, No. 1)
(5-pin SET_CM6: see p.8, No. 15)
(5-pin SET_CM5: see p.8, No. 18)
(5-pin SET_CM4: see p.8, No. 16)
(5-pin SET_CM3: see p.8, No. 17)
12
Setting
Description
1-2 : AT Mode
2-3 : ATX Mode
1-2 : +12V
2-3 : +5V
1-2 : +12V
2-3 : +5V
1
4-5 : RI#
NEX 980 User Manual
