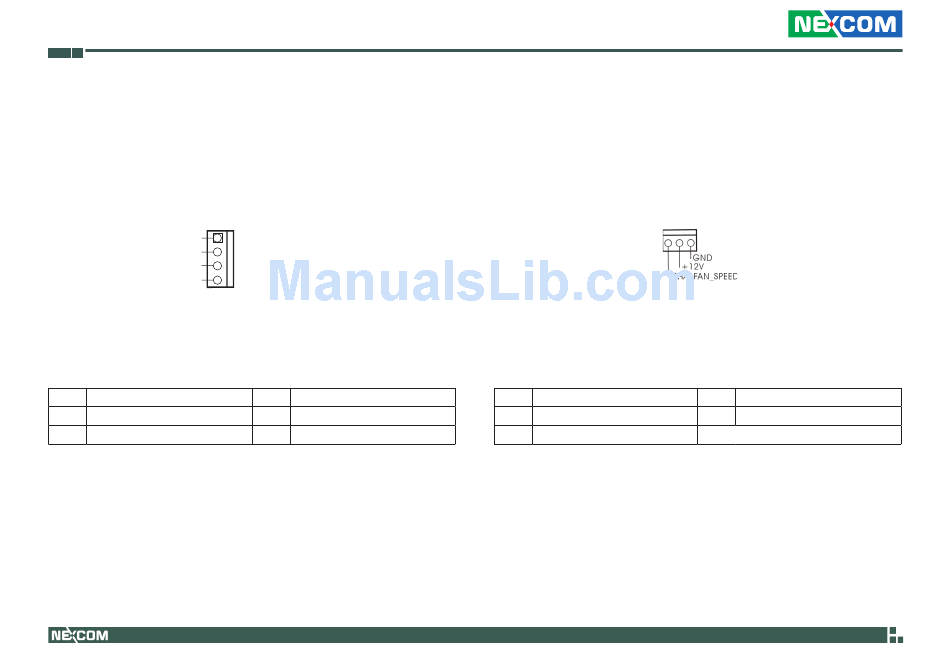

Chapter 2: Installation
SATA Power Connectors
(4-pin JPWR1: see p.8, No. 40)
(4-pin JPWR2: see p.8, No. 42)
+5V
GND
GND
+12V
Pin
Signal Name
1
+5V
3
GND
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin
Signal Name
2
GND
4
+12V
Chassis Fan Connector
(3-pin CHA_FAN1)
(see p.8, No. 43)
Please connect the fan cable to the fan connector and match the black
wire to the ground pin.
Pin
Signal Name
1
CHA FAN SPEED
3
GND
20
Pin
Signal Name
2
+12V
