3.3 Advanced Screen

In this section, you may set the configurations for the following items:
CPU Configuration, Northbridge Configuration, Southbridge
Configuration, Storage Configuration, Intel
Intel(R) Smart Connect Technology, AMT Configuration, Super IO Configu-
ration, ACPI Configuration and USB Configuration.

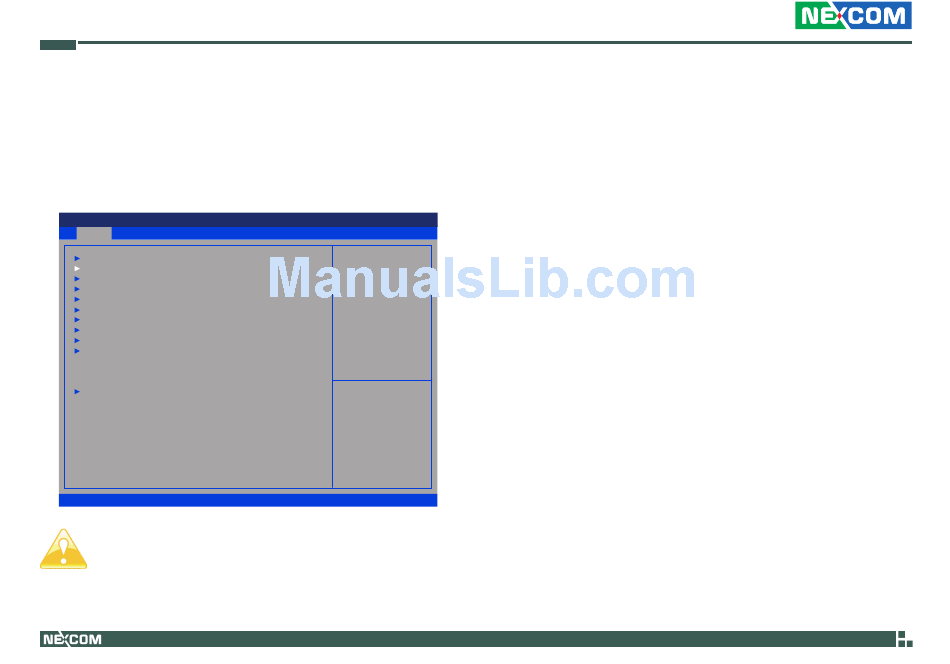

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
H/W Monitor
Main Advanced
CPU configuration
North Bridge Configuraton
South Bridge Configuration
Storage Configuration
Intel(R) Rapid Start Technology
Intel(R) Smart Connect Technology
AMT Configuration
Super IO Configuration
ACPI Configuration
USB Configuration
UEFI Update Utility
Instant Flash
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Setting wrong values in this section may cause the system to
malfunction.
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
Rapid Start Technology,
®
Exit
Boot Security
Configure North Bridge Settings.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F7: Discard Changes
F9: Load UEFI Defaults
F10: Save & Exit
F12: Print Screen
ESC: Exit
Instant Flash
Instant Flash is a UEFI flash utility embedded in Flash ROM. This conve-
nient UEFI update tool allows you to update system UEFI without entering
operating systems first like MS-DOS or Windows
and save the new UEFI file to your USB flash drive, floppy disk or hard
drive, then you can update your UEFI only in a few clicks without preparing
an additional floppy diskette or other complicated flash utility. Please be
noted that the USB flash drive or hard drive must use FAT32/16/12 file sys-
tem. If you execute Instant Flash utility, the utility will show the UEFI files
and their respective information. Select the proper UEFI file to update your
UEFI, and reboot your system after UEFI update process completes.
