Serial ATA Connections

Serial ATA Ports

There are six Serial ATA Ports (I-
SATA0~I-SATA 5) located on the
motherboard. These por ts, sup-
ported by the Intel ICH10R South
Bridge, provide serial-link signal con-
nections, which are faster than the
connections of Parallel ATA. See the
table on the right for pin defi nitions.
Note: For more information on SATA HostRAID confi guration, please refer
to the Intel SATA HostRAID User's Guide posted on our website @ http://
www.supermicro.com/support/manuals/.

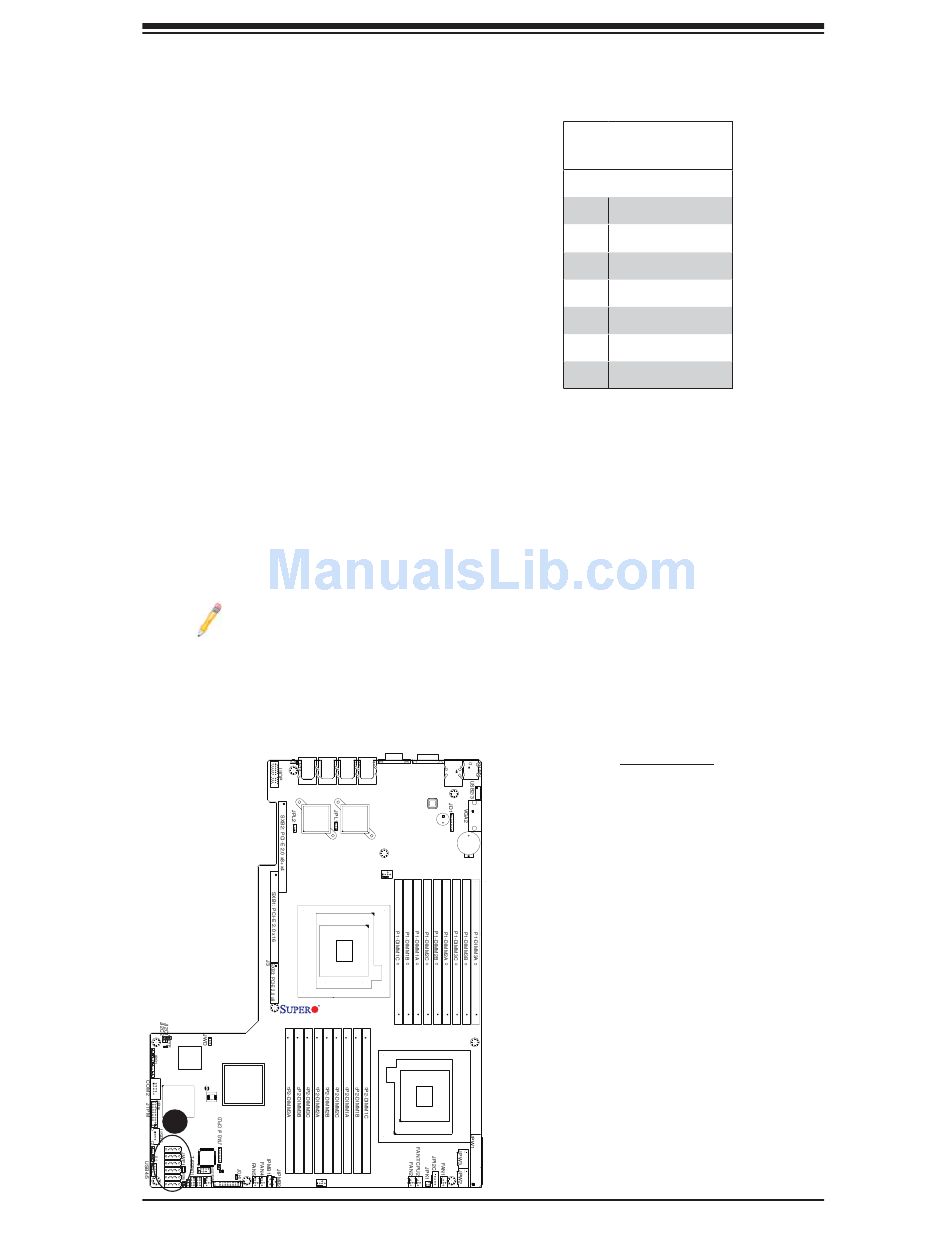

LAN4 LAN3
UID
J1
LAN2
J2
X8DTU-LN4F+
Rev. 2.0
D20
Winbond
BMC
Intel
COMS
Clear
IOH-36D
JBT1
Intel
ICH10R BIOS
A
SATA0~5
LE1
FAN3
FPCTRL
T-SGPIO2
VGA1 COM1
LAN2 LAN1
USB0/1
IPMI_LAN
PHY
LAN1
SP1
JBT1
FAN8/CPU1
CPU1
CPU2
3-39
Chapter 3: Installation
Serial ATA
Pin Defi nitions
Pin# Defi nition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA0~5
