X8DTU-LN4F+

3-8

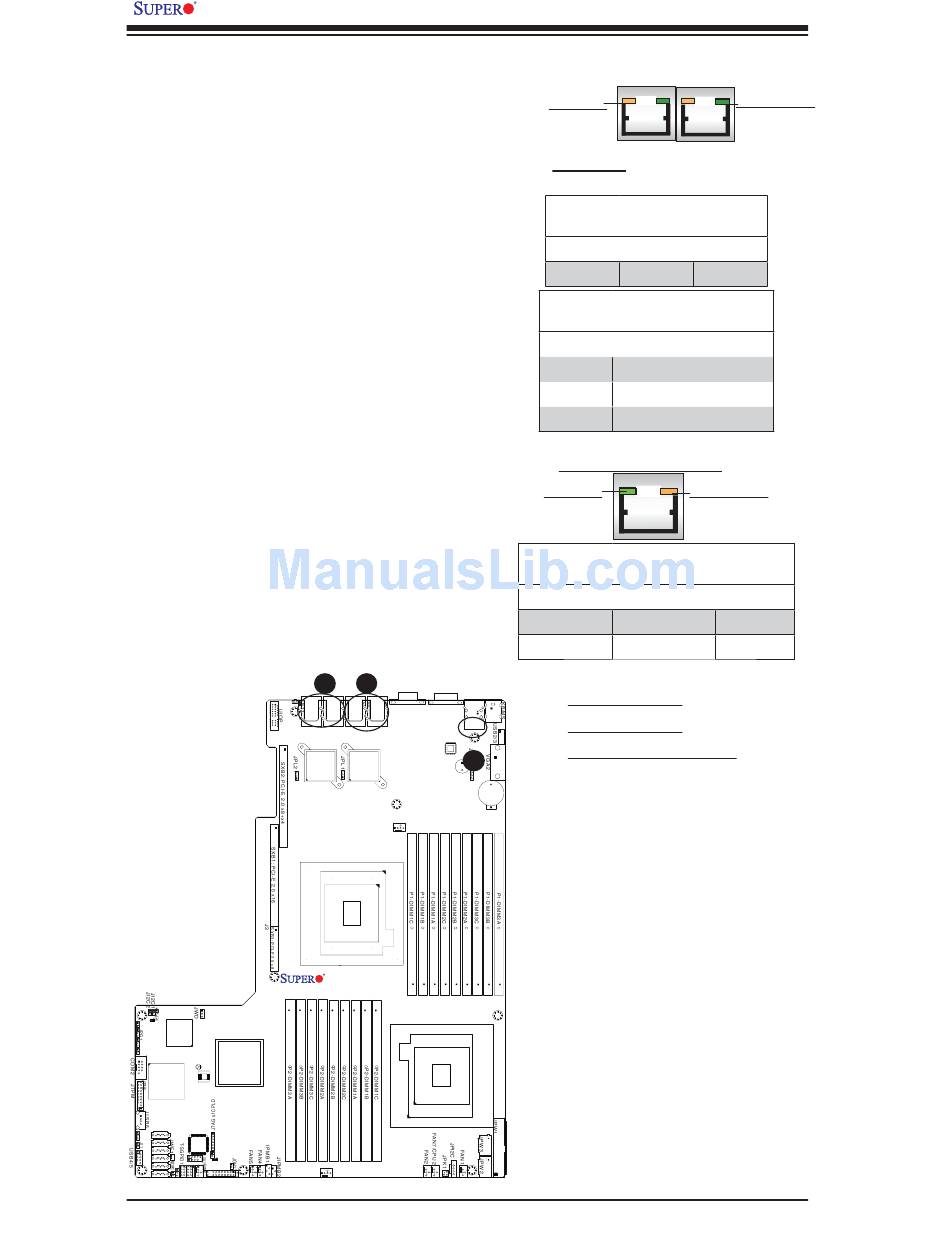

Onboard LED Indicators

GLAN LEDs

Four LAN ports (LAN 1/LAN 2/LAN3/LAN4)
are located on the I/O Backplane of the
motherboard. Each Ethernet LAN port has
two LEDs. The Green LED indicates activ-
ity, while the other Link LED may be green,
amber or off to indicate the speed of the
connections. See the tables at right for
more information.

IPMI Dedicated LAN LEDs

In addition to LAN 1~LAN 4, an IPMI Dedi-
cated LAN is also located on the I/O Back-
plane. The amber LED on the right indicates
activity, while the green LED on the left
indicates the speed of the connection. See
the tables at right for more information.
LAN4
UID
J1
J2
D20
Winbond
BMC
Intel
COMS
Clear
IOH-36D
JBT1
Intel
BIOS
ICH10R
SATA0~5
LE1
FPCTRL
T-SGPIO2
Motherboard
User's Manual
B A
VGA1
COM1
LAN3 LAN2 LAN1
USB0/1
IPMI_LAN
PHY C
LAN2 LAN1
SP1
JBT1
FAN8/CPU1
CPU1
X8DTU-LN4F+
Rev. 2.0
CPU2
FAN3
3-36
Link LED
Rear View (when facing the
rear side of the chassis)
LAN 1/2 Activity LED (Right)
LED State
Color Status Defi nition
Green Flashing Active
LAN 1/2 Link LED (Left)
LED State
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
IPMI LAN (F models only)
Link LED Activity LED
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State
Link (Left) Green: Solid
Activity (Right) Amber: Blinking
A. LAN1/2 LEDs
B. LAN3/4 LEDs
C. Dedicated LAN LEDs
Activity LED
Defi nition
100 Mbps
Active
