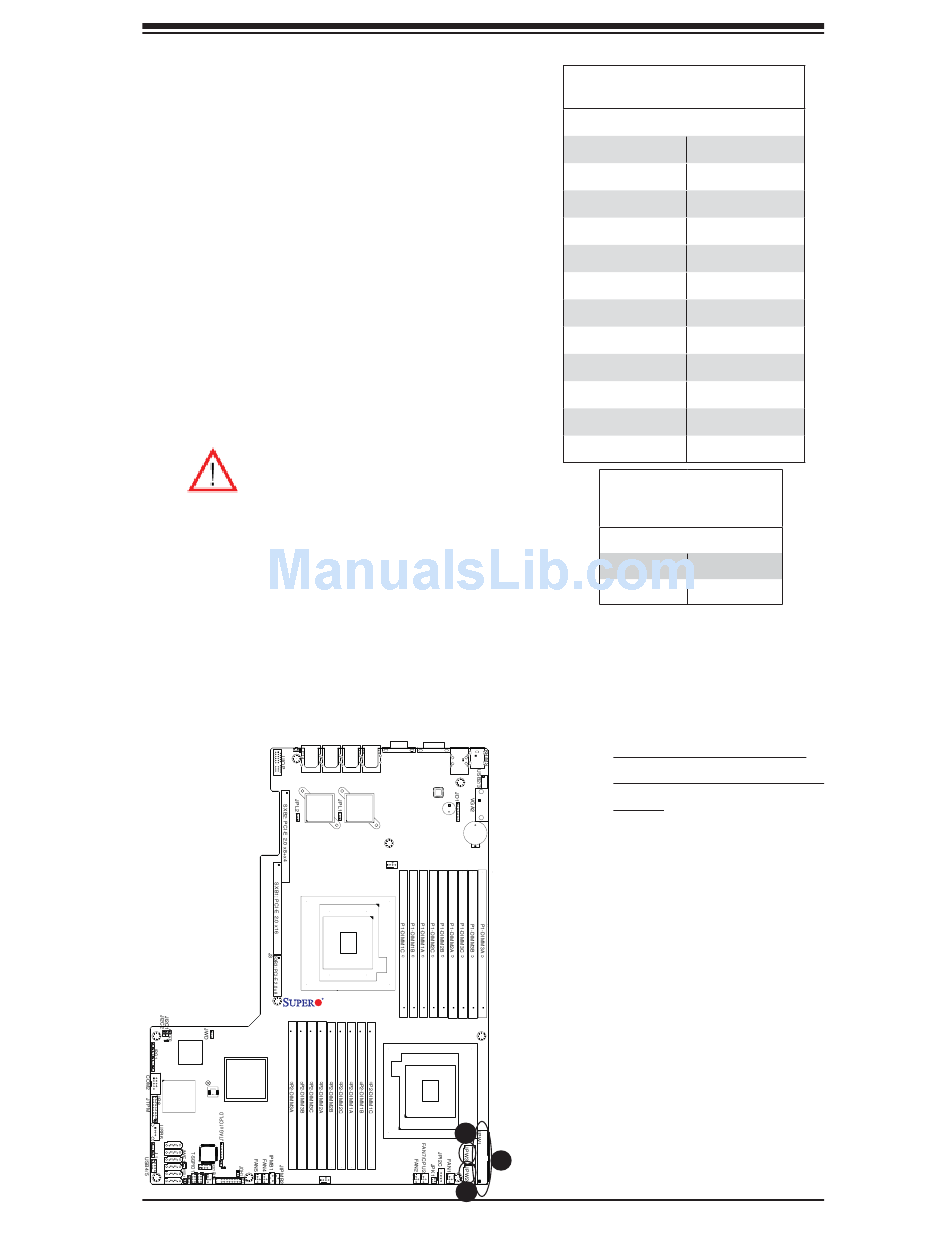

Connecting Cables

Power Connectors

A 24-pin main power supply connector (JPW1)
and two 8-pin CPU PWR connectors (JPW2/
JPW3) are located on the motherboard. These
power connectors meet the SSI EPS 12V
specifi cation. In addition to the 24-pin ATX
power connector, the 12V 8-pin CPU PWR
connectors at JPW2/JPW3 must also be con-
nected to your power supply. See the table on
the right for pin defi nitions.
Warning! To avoid damaging the
power supply or motherboard, please
use a power supply that contains a
24-pin and two 8-pin power connec-
tors. Be sure to connect these con-
nectors to the 24-pin (JPW1) and the
two 8-pin (JPW2, JPW3) power con-
nectors on the motherboard. Failure
to do so will void the manufacturer
warranty on your power supply and
motherboard.
LAN4
UID
J1
LAN2
J2
D20
Winbond
BMC
Intel
COMS
Clear
IOH-36D
JBT1
Intel
ICH10R BIOS
SATA0~5
LE1
FAN3
FPCTRL
T-SGPIO2
VGA1 COM1
LAN3 LAN2 LAN1
USB0/1
IPMI_LAN
PHY
LAN1
SP1
JBT1
FAN8/CPU1
CPU1
X8DTU-LN4F+
Rev. 2.0
CPU2
C
A
B
3-25
Chapter 3: Installation
ATX Power 24-pin Connector
Pin Defi nitions
Pin# Defi nition Pin # Defi nition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
12V 8-pin PWR Con-
nector
Pin Defi nitions
Pins Defi nition
1 through 4 Ground
5 through 8 +12V
(Required)
A. 24-pin ATX PWR (Req'd)
B/C.8-pin Processor PWR
(Req'd)
