Motherboard
X8DTU-LN4F+

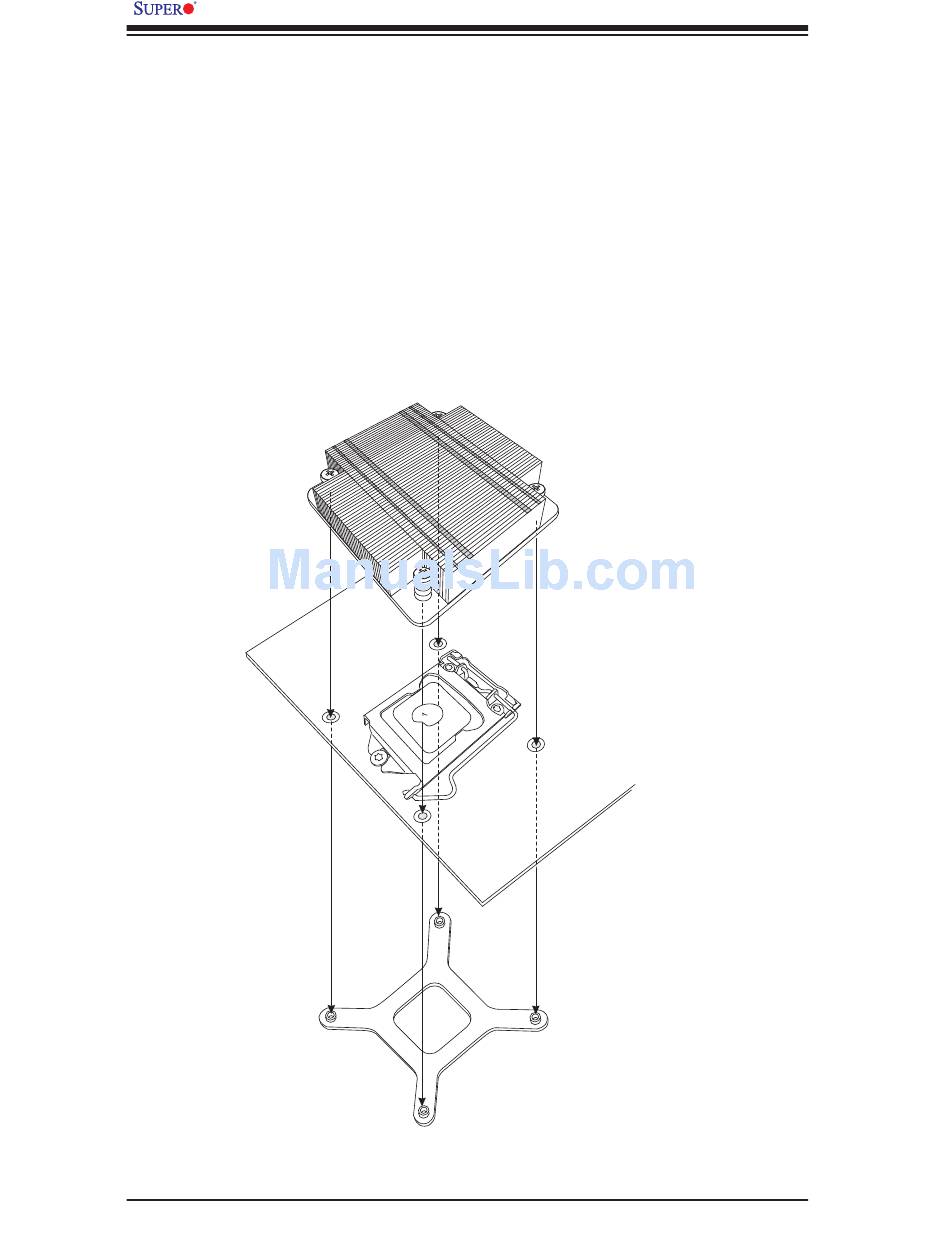

Installing a Passive CPU Heatsink
1.
Do not apply any thermal grease to the heatsink or the CPU die because the
required amount has already been applied.
2.
Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the retention mechanism.
3. Install two diagonal screws (e.g. the #1 and the #2 screws) and tighten them
until just snug (-do not fully tighten the screws to avoid possible damage to
the CPU.)
4. Finish the installation by fully tightening all four screws.
User's Manual
3-4
