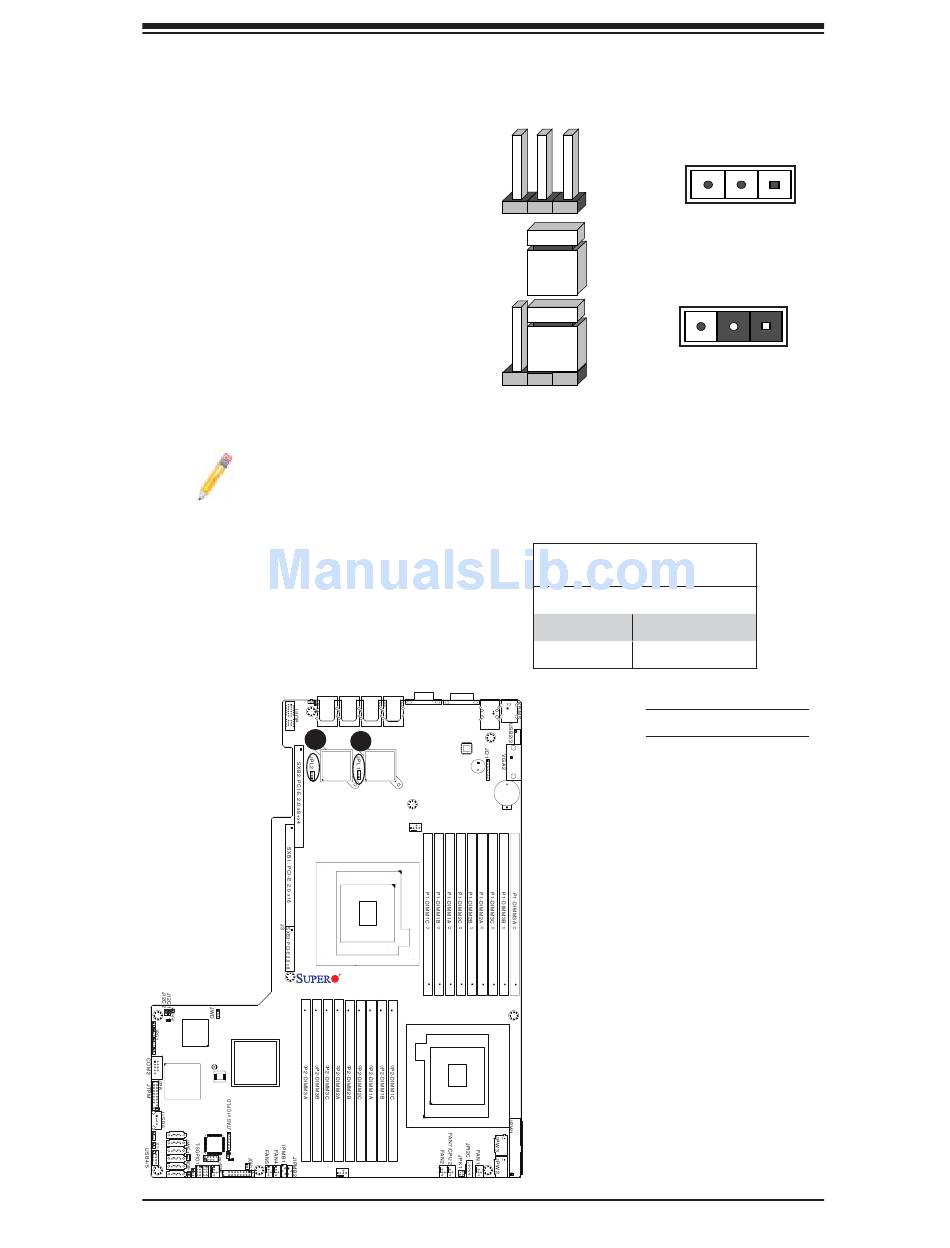

Jumper Settings

Explanation of Jumpers

To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers cre-
ate shorts between two pins to change
the function of the connector. Pin 1
is identifi ed with a square solder pad
on the printed circuit board. See the
motherboard layout pages for jumper
locations.
Note: On two pin jumpers,
"Closed" means the jumper
is on and "Open" means the
jumper is off the pins.

GLAN Enable/Disable

JPL1/JPL2 enables or disables the
GLAN Port1/GLAN Port2 on the moth-
erboard. See the table on the right for
jumper settings. The default setting is
Enabled.
