Installing the Memory Modules

A

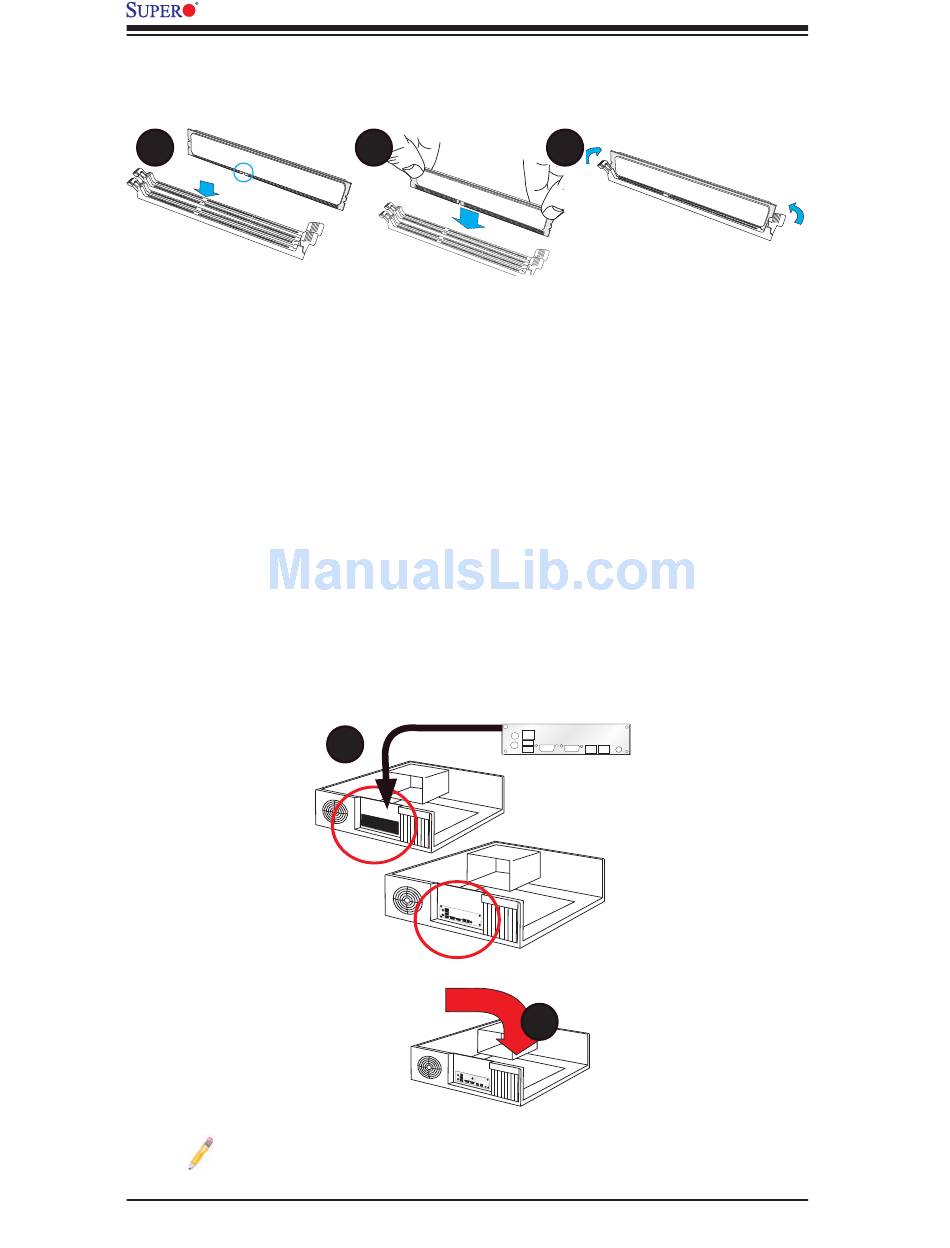

A. Align the key on the DIMM module
against that of the DIMM socket.
B. Insert the DIMM module straight down
to the DIMM socket.
1-4

Installing the I/O Shield (if needed)

Note: Chassis and I/O plate images are for illustration only. They may be
different from what you have.
Motherboard
User's Manual
B
A
1-2
C
C. Press the notches on the ends of
the DIMM module inwards to lock it.
B
