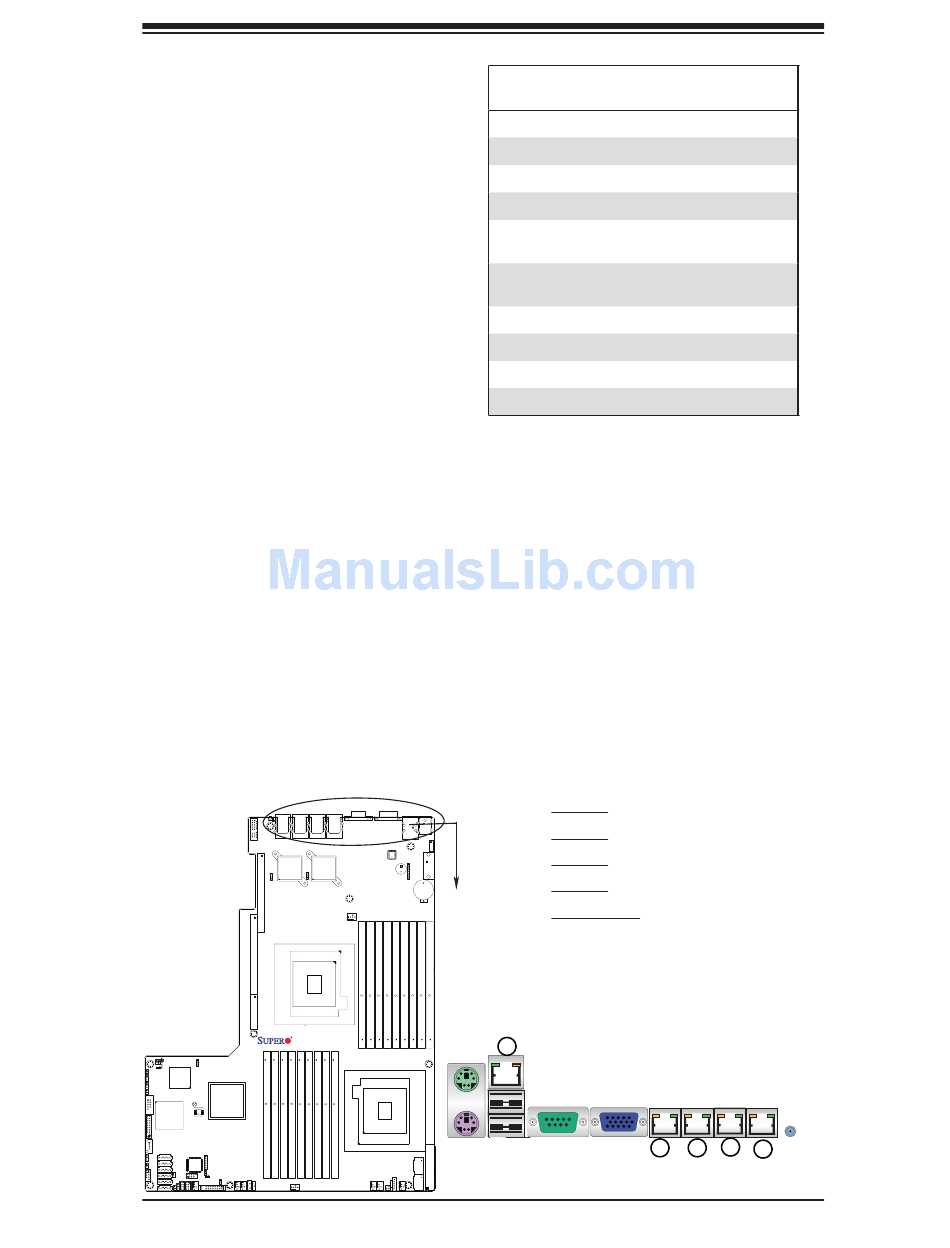

Ethernet Ports

Four Ethernet ports (LAN1/LAN2/
LAN3/LAN4) are located on the I/O
backplane. In addition, an IPMI_Dedi-
cated LAN is located on top of the
back panel USB ports (USB 0/1) to
provide KVM support for IPMI 2.0.
All these ports accept RJ45 type
cables. (Note: Please refer to the
LED Indicator Section for LAN LED
information.)
X8DTU-LN4F+
Rev. 2.0
LAN Ports
Pin Defi nition
Pin# Defi nition
1 P2V5SB 10
2 TD0+ 11
3 TD0- 12
4 TD1+ 13
5 TD1- 14
6 TD2+ 15
7 TD2- 16
8 TD3+ 17
9 TD3- 18
(NC: No Connection)
1. LAN1
2. LAN2
3. LAN3
4. LAN4
5. IPMI_LAN
5
3-19
Chapter 3: Installation
SGND
Act LED
P3V3SB
Link 100 LED (Yel-
low, +3V3SB)
Link 1000 LED
(Yellow, +3V3SB)
Ground
Ground
Ground
Ground
3
1 2
4
