Uio Power Connector; Nic3/Nic4 Led Headers - Supermicro X8DTU-LN4F+ User Manual

Motherboard
X8DTU-LN4F+

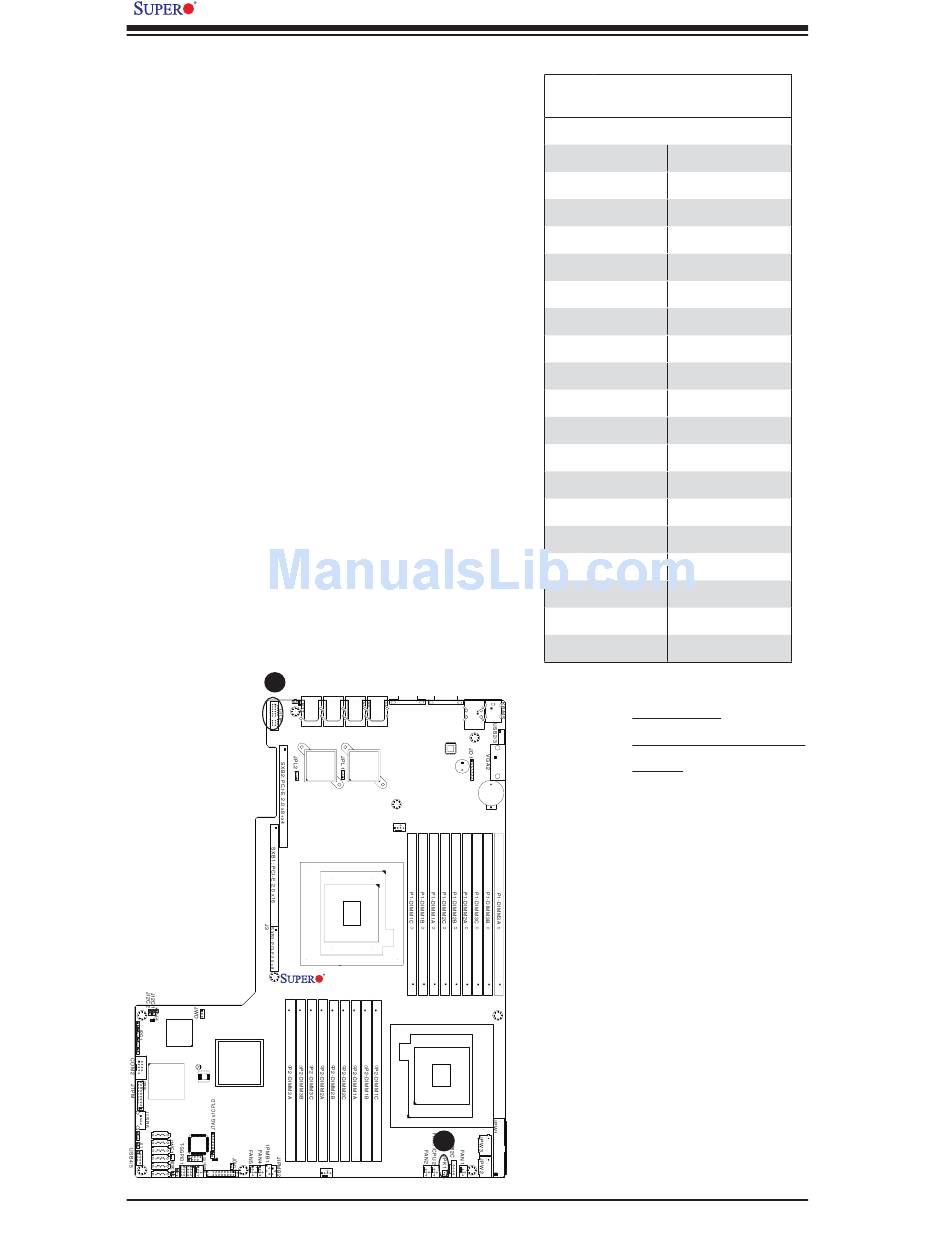

UIO Power Connector

A Universal I/O (UIO) Power connec-
tor is located next to the UID switch.
Connect this connector to the power
supply to provide adequate power to
the UIO device installed on the slot for
this device to function properly. See
the layout below for the location.

NIC3/NIC4 LED Headers

LAN3 (NIC3) LED and LAN4 (NIC4)
LED header is located at JPK1. Con-
nect the appropriate cables here to
provide LAN3 and LAN4 LED indica-
tions on your motherboard.
A
LAN4 LAN3
UID
J1
LAN2
J2
X8DTU-LN4F+
Rev. 2.0
D20
Winbond
BMC
Intel
COMS
Clear
IOH-36D
JBT1
Intel
BIOS
ICH10R
SATA0~5
LE1
FAN3
FPCTRL
T-SGPIO2
User's Manual
VGA1
COM1
LAN2 LAN1
USB0/1
IPMI_LAN
PHY
LAN1
SP1
JBT1
FAN8/CPU1
CPU1
CPU2
B
3-30
Universal I/O Power Header
Pin Defi nitions
Pins# Defi nition Pin # Defi nition
B1 +5V A1
B2 +5V A2
B3 +5V A3
B4 +5V A4
B5 +5V A5
B6 +5V A6
B7 +5V A7
B8 +5V A8
B9 +5V A9
B10 +5V A10
B11 -12V A11
Key Key
B12 +3.3VSb A12
B13 +3.3VSb A13
B14 GND A14
B15 GND A15
B16 GND A16
B17 GND A17
B18 GND A 18
A. UIO PWR
B . N I C 3 / N I C 4 L E D
Header
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+12V
+12V
+12V
+12V
+12V
GND
