Motherboard
X8DTU-LN4F+

DOM Power Connector

A power connector for SATA DOM
(Disk_On_Module) Devices is located
at JWF1. Connect the appropriate
cable here to provide power support
for your DOM devices.

Overheat LED/Fan Fail

The JOH1 header is used to connect
an LED indicator to provide warnings
of chassis overheating or fan failure.
This LED will blink when a fan failure
occurs. Refer to the table on right for
pin defi nitions.

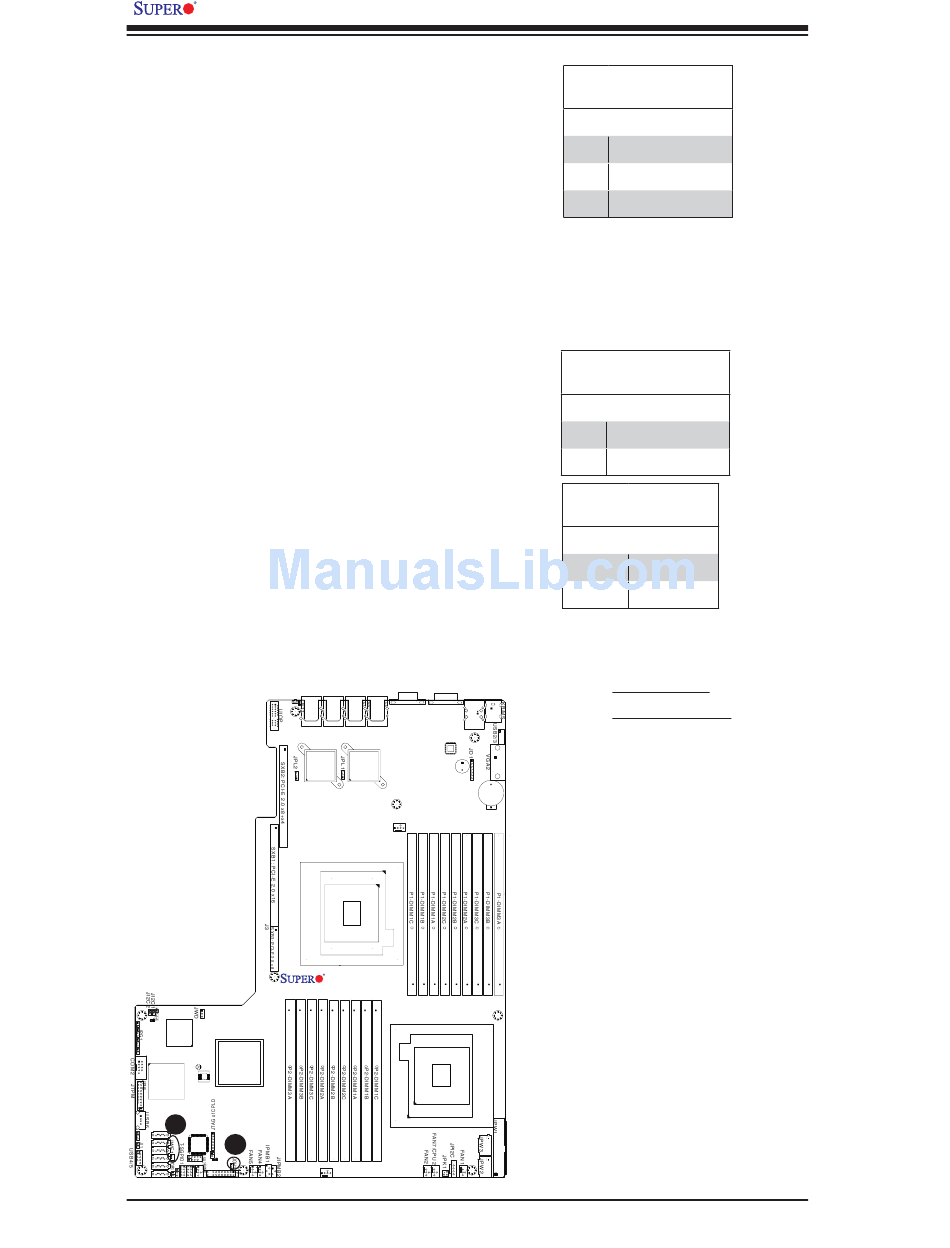

LAN4 LAN3
UID
J1
LAN2
J2
X8DTU-LN4F+
Rev. 2.0
D20
Winbond
BMC
Intel
COMS
Clear
IOH-36D
JBT1
Intel
BIOS
ICH10R
A
SATA0~5
B
LE1
FAN3
FPCTRL
T-SGPIO2
User's Manual
VGA1
COM1
LAN2 LAN1
USB0/1
IPMI_LAN
PHY
LAN1
SP1
JBT1
FAN8/CPU1
CPU1
CPU2
3-28
DOM PWR
Pin Defi nitions
Pin# Defi nition
1 +5V
2 Ground
3 Ground
Overheat LED
Pin Defi nitions
Pin# Defi nition
1 5vDC
2 OH Active
OH/Fan Fail LED
Status
State Message
Solid Overheat
Blinking Fan Fail
A. DOM PWR
B. Overheat LED
