3.9
PCI Box Slot Configuration
Each QBB can have two I/O risers supporting up to two PCI boxes. A
cable connects a local I/O riser (in the QBB) to a remote I/O riser (in the
PCI box). Each PCI box can have up to two remote I/O risers in place.
Cable connectors for the two remote I/O risers are shown as Riser 0
and Riser 1 in Figure 3–11. PCI slots and logical hoses are listed in
Table 3–2.

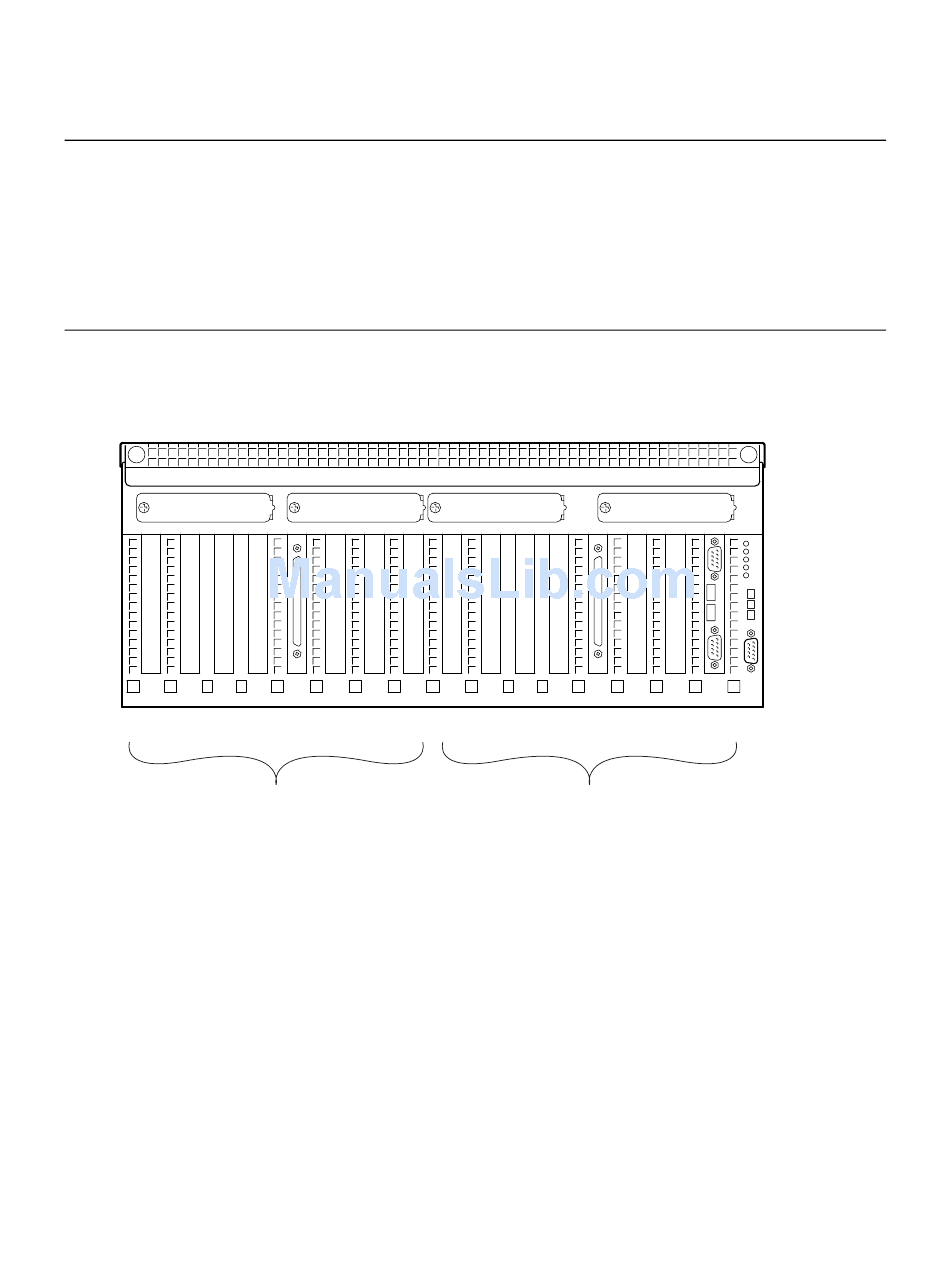

Figure 3–11 PCI Slot Locations
Slot
7
6
5
4
3
2
1
7
6
5
4
3
2
1
1
Riser
Riser 0
PK-0643-99
3-20
AlphaServer GS80/160/320 User's Guide
