Clock Splitter Module - Compaq AlphaServer 160 User Manual

2.3.7

Clock Splitter Module

The clock splitter module converts one global signal to identical copies
of a signal that is then distributed to master phase lock loops
associated with the ASICs and the system processors within a QBB. It
also generates independent clock signals for the I/O domain.

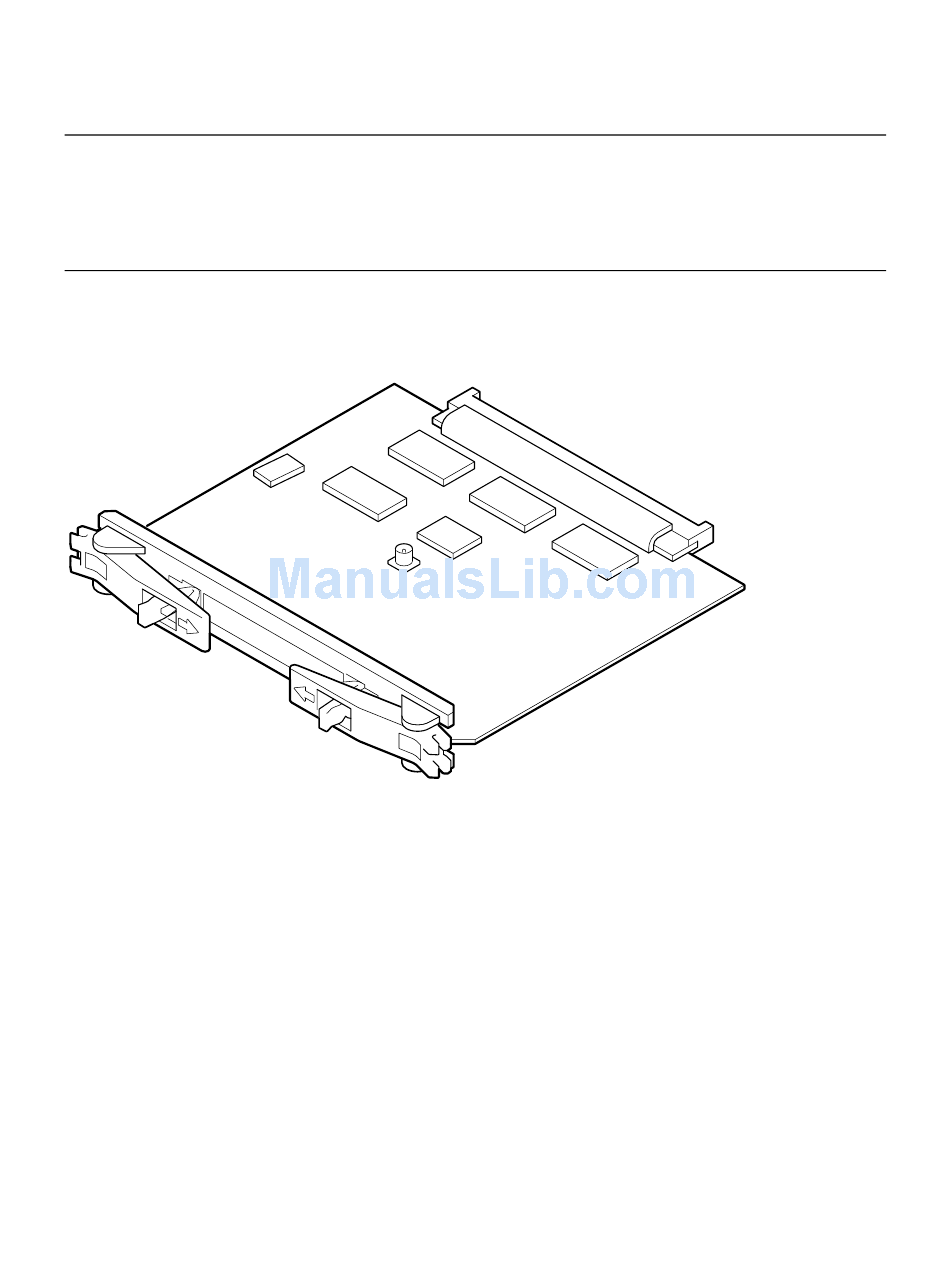

Figure 2–11 Clock Splitter Module
PK2222
GS160/320 System Overview 2-15
