PCI I/O

The power cabinet contains at least one PCI master box, and may
contain PCI expansion boxes.

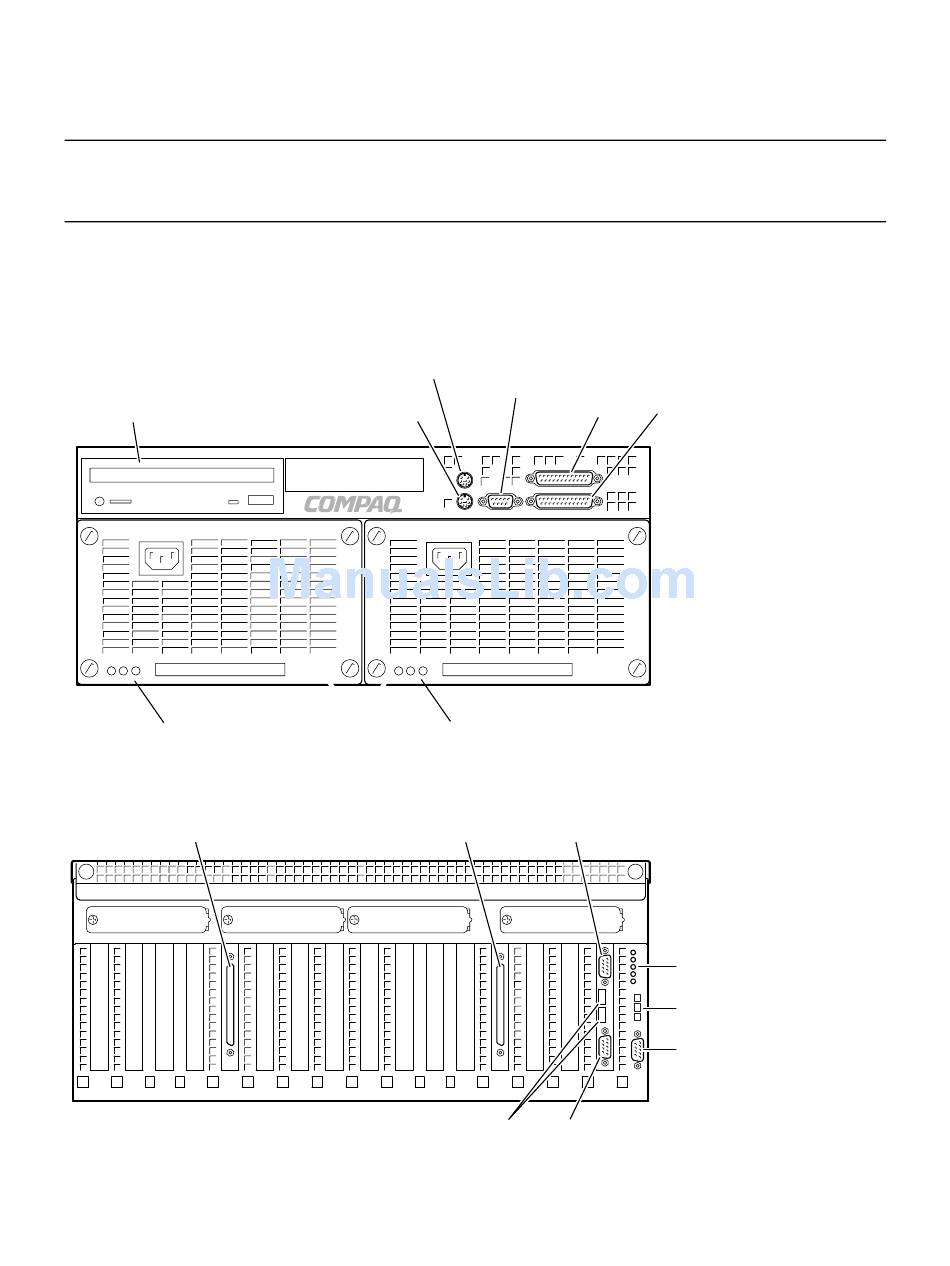

Figure 2–19 PCI Master Box
Front
DVD/CD-ROM
Power Supply LEDs
Rear
Remote I/O
Riser Module
2-26 AlphaServer GS80/160/320 User's Guide
COM 2
Keyboard
Serial Port
Mouse
Power Supply LEDs
Remote I/O Local Terminal
Riser Module
USB Modem
Ports Port
Operator
Parallel
Control
Port
Panel
Port
LEDs
CSB Node
ID Switch
CSB
PK0656
