GLOBAL MENU
TRIG LEVEL selects the level of trigs sent, measured in volts. The standard logic level of +5 V
is enough to trig most equipment, but some might need higher voltages to react.
TRIG LENGTH selects the length of trig signals sent. Some equipment might not trig correctly
on the shortest pulses, so try different lengths if you experience problems when trying to trig.
VALUE MIN sets the lowest allowed voltage level that can be sent from the CV/Gate output.
VALUE MAX sets the highest allowed voltage level that can be sent from the CV/Gate output.
Normally it is not dangerous to connect voltages within +/- 15 V to analog equipment, but use
these limitations if you are unsure.

SYSEX DUMP

In the SYSEX DUMP menu, kits, Sounds, patterns, songs and global slots can be sent and received. Select a
menu option using [UP]/[DOWN] or the LEVEL knob. Press [YES/SAVE] to open the highlighted menu selec-
tion.
When receiving or sending SysEx data, the MIDI ports or the USB port of the Analog Four should be connected
to the external sending/receiving device. If the external device is a computer, we recommend using our free
SysEx utility C6, which can be downloaded from the Elektron website.
•
If the Analog Four is sending or receiving SysEx data through the MIDI ports, use the Elektron TM-
1 USB MIDI interface for up to 10x transfer speeds.

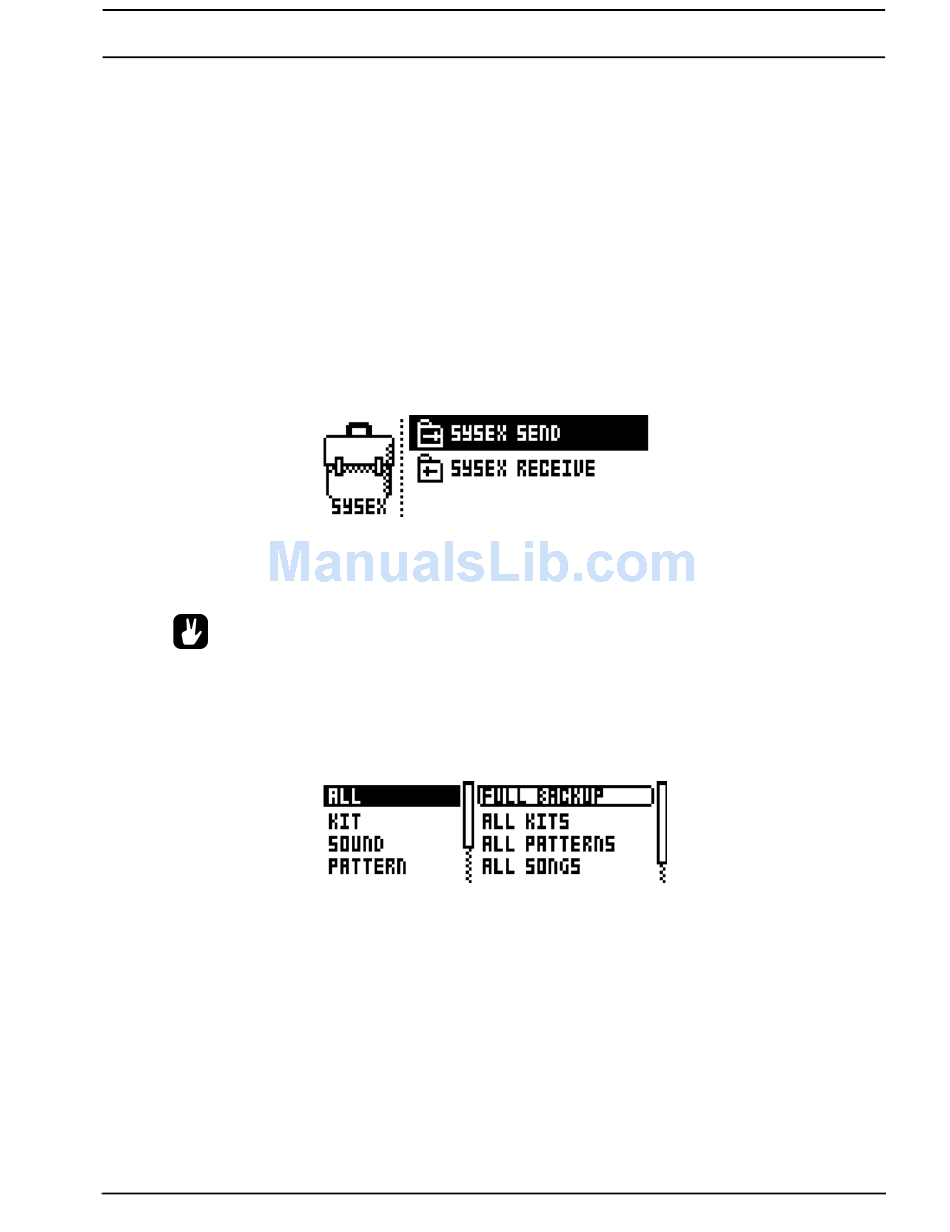

SYSEX SEND

Here kits, Sounds, patterns, songs and global slots can be sent to an external device via the MIDI OUT port or
the USB port of the Analog Four.
The column to the left selects what should be backed up. Select the column using the [LEFT] arrow key. Use the
[UP]/[DOWN] keys or the LEVEL knob to navigate in the column. The SysEx data send alternatives located in
the column to the right will change depending on the selection made in the left column. Press the [RIGHT] arr-
row key to access this column. Use the [UP]/[DOWN] keys or the LEVEL knob to select what should be sent.
Press [YES/SAVE] to initiate the SysEx send procedure.
ALL offers the possibility to do complete backups of various data.
• FULL BACKUP will send all kits, Sounds, patterns, songs and global slots to the
receiving device.
• ALL KITS will send all kits to the receiving device.
• ALL PATTERNS will send all patterns to the receiving device.
