GLOBAL MENU

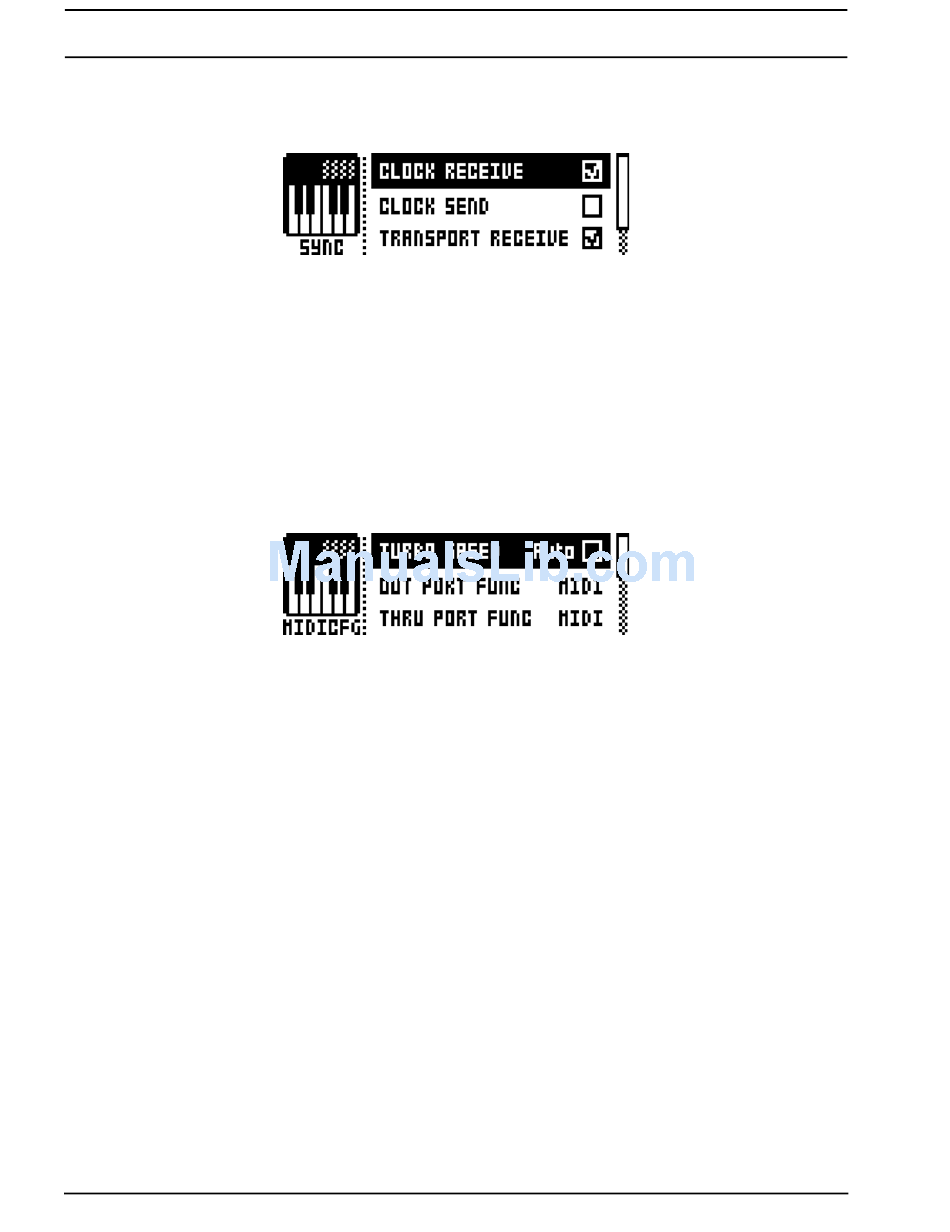

MIDI SYNC

Controls how the Analog Four receives and sends MIDI clock and transport commands. Change settings by
using the [LEFT]/[RIGHT] arrow keys.
CLOCK RECEIVE will when active make the Analog Four respond to MIDI clock sent from
external devices.
CLOCK SEND will when active make the Analog Four transmit MIDI clock.
TRANSPORT RECEIVE will when active make the Analog Four respond to system realtime
messages like play, stop, continue and song position pointer.
TRANSPORT SEND will when active make the Analog Four send out system realtime mes-
sages like play, stop, continue and song position pointer.

MIDI PORT CONFIG

MIDI port related settings are found in this menu. Change settings by using the [LEFT]/[RIGHT] arrow keys.
TURBO SPEED selects the multiplier of the MIDI transfer rate that should be used when the
Analog Four MIDI IN/OUT ports are connected to the MIDI OUT/IN ports of a turbo protocol
compatible device. The [LEFT]/[RIGHT] arrow keys are used to select the multiplier. If AUTO
is chosen, press [YES/SAVE] to start the turbo speed negotiation.
OUT PORT FUNCTIONALITY selects what type of signal the MIDI OUT port should send.
THRU PORT FUNCTIONALITY selects what type of signal the MIDI THRU port should send.
The same settings as for OUT PORT FUNCTIONALITY exist.
INPUT FROM selects the source the Analog Four should receive MIDI data from.
36
• MIDI makes it possible for the port to send out MIDI data.
• DIN 24 will make the port send DIN 24 sync messages. No MIDI data can be sent
when this option is selected.
• DIN 48 will make the port send DIN 48 sync messages. No MIDI data can be sent
when this option is selected.
• DISABLED will make the Analog Four disregard any incoming MIDI data.
• MIDI will make the Analog Four listen only to MIDI data sent to the MIDI IN port.
• USB will make the Analog Four listen only to MIDI data sent to the USB port.
