Appendix C: CV TRACK PARAMETERS

In this appendix, the CV/Gate track parameters are explained.

CV A-D

The CV A-D pages control the signals sent from the 2 dual CV/Gate outputs. Depending on the CV type chosen in the
CV CONFIG menu, the available parameters will change.
CV
TUN (Coarse Tune) sets the coarse tuning of the CV in semi-
tones. Applicable when the chosen CV type is PITCH V/OCT or
PITCH HZ/V.
FIN (Fine Tune) sets the fine tuning of the CV. Applicable when
the chosen CV type is PITCH V/OCT or PITCH HZ/V.
VAL (Value) sets the voltage level of the CV. Applicable when the
chosen CV type is VALUE LIN.
SRC (Source Track) selects the track whose notes should be
used for sending CV signals. The CV track, FX track and synth
tracks 1-4 can be used as source. Applicable when the chosen
CV type is PITCH V/OCT PITCH HZ/V, TRIG or GATE.

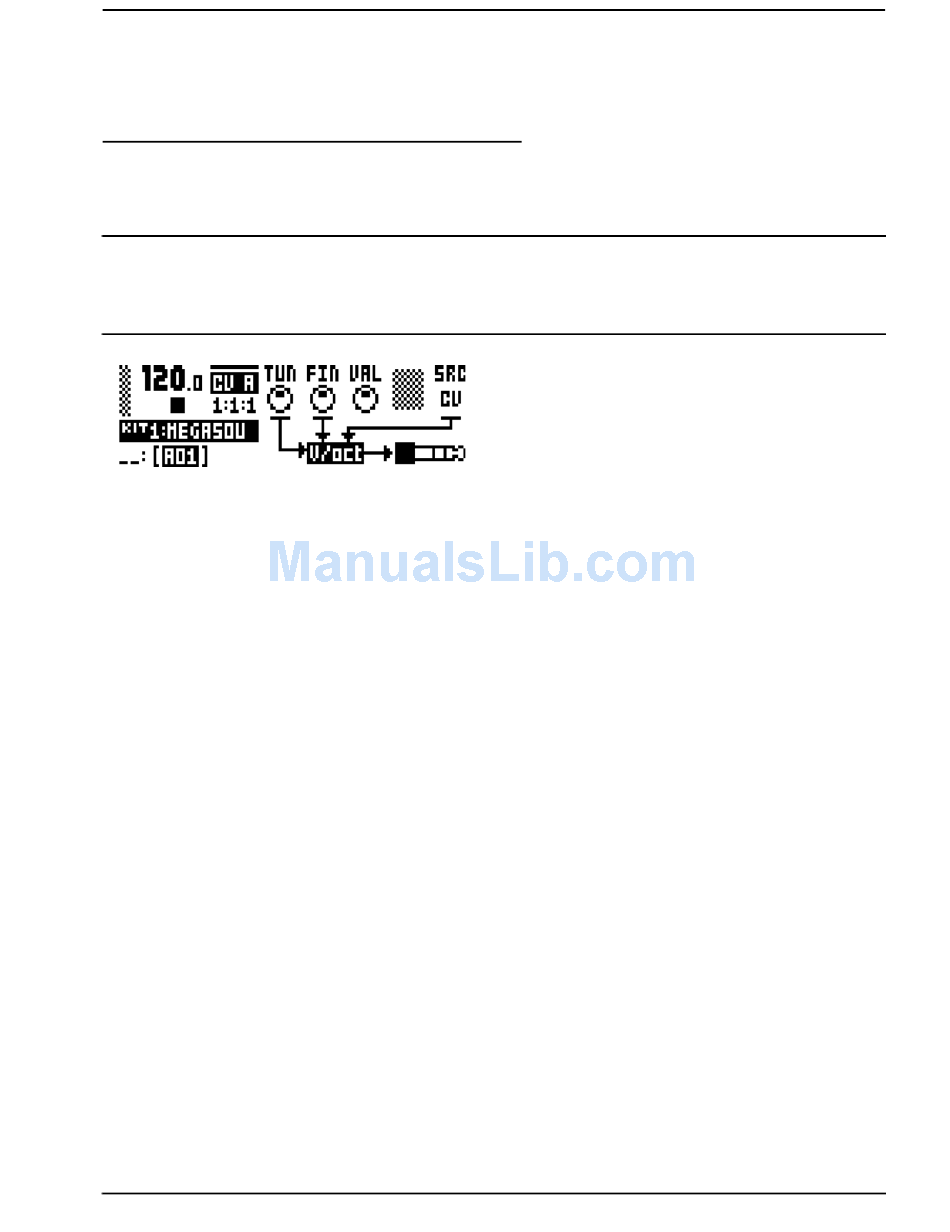

A note about the LCD graphics: The audio plug graphics in the
CV A-D PARAMETER pages flashes, indicating whether tip or
ring of the audio cable plug is used for sending the CV/Gate sig-
nals the active PARAMETER page controls.
