FRONT PANEL

2 3
1
34
33
32
31 30 29 28

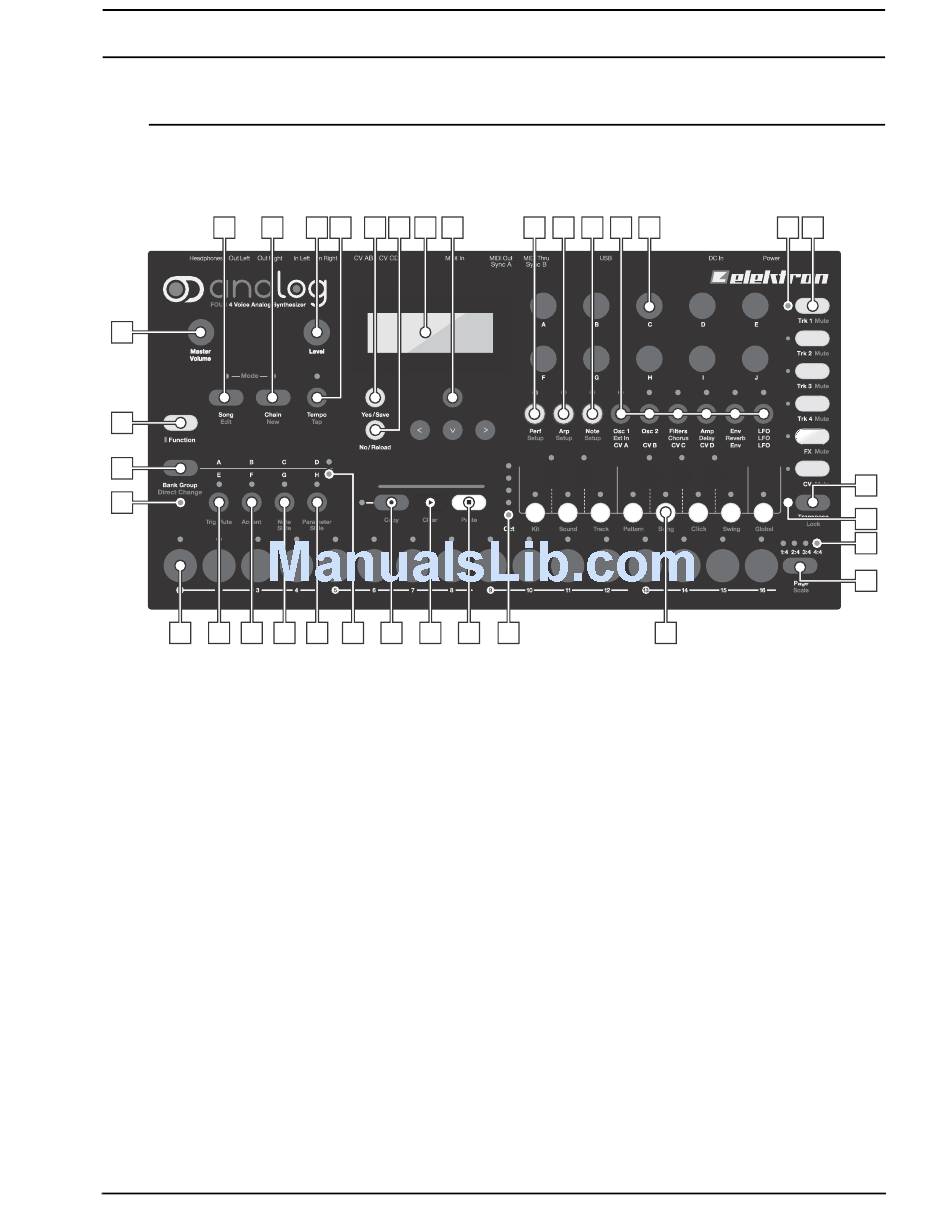

The Analog Four front panel.
1. MASTER VOLUME sets the volume for the main outputs and the headphones output.
2. [SONG] activates SONG mode.
3. [CHAIN] activates CHAIN mode.
4. LEVEL sets the overall volume level of the active track. Also used for scrolling in menus and setting various
parameter values.
5. [TEMPO] opens the TEMPO menu. [FUNCTION] + [TEMPO] makes it possible to tap the tempo.
6. [YES/SAVE] key. Used for entering sub-menus and for confirming choices.
7. [NO/RELOAD] key. Used for exiting an active menu and for deselecting options.
8. The LCD window.
9. The [ARROW] keys. Used for menu navigation. They are called [UP], [DOWN], [LEFT] and [RIGHT].
10. [PERFORMANCE] opens a menu where parameter macros can be set up.
11. [ARP] key. Controls for the arpeggiator is found here.
12. [NOTE] key. Settings relating to notes are made here.
13. [PARAMETER] keys switch between the PARAMETER pages of the active track. The upper white text leg-
end indicates the pages for the four synth tracks. The gray text is for the FX track pages and the white text
line beneath indicates the CV track pages. Double pressing a [PARAMETER] key will in certain cases open
a secondary PARAMETER page.
14. DATA ENTRY knobs. Used for adjusting parameters.
15. <TRACK> LEDs indicating the active track and muted tracks.
16. The [TRACK] keys selects the active track. Four synth tracks, one FX track and one CV track are at hand.
[FUNCTION] + [TRACK] mutes a track.
17. [TRANSPOSE] transposes the octave for the mini-keyboard and the note trigs.
18. The <TRANSPOSE> LED indicates if the transpose lock functionality is activated or not.
