Appendix B: FX TRACK PARAMETERS

In this appendix, the parameters of the external input page and the three send effects are explained.

EXTERNAL IN

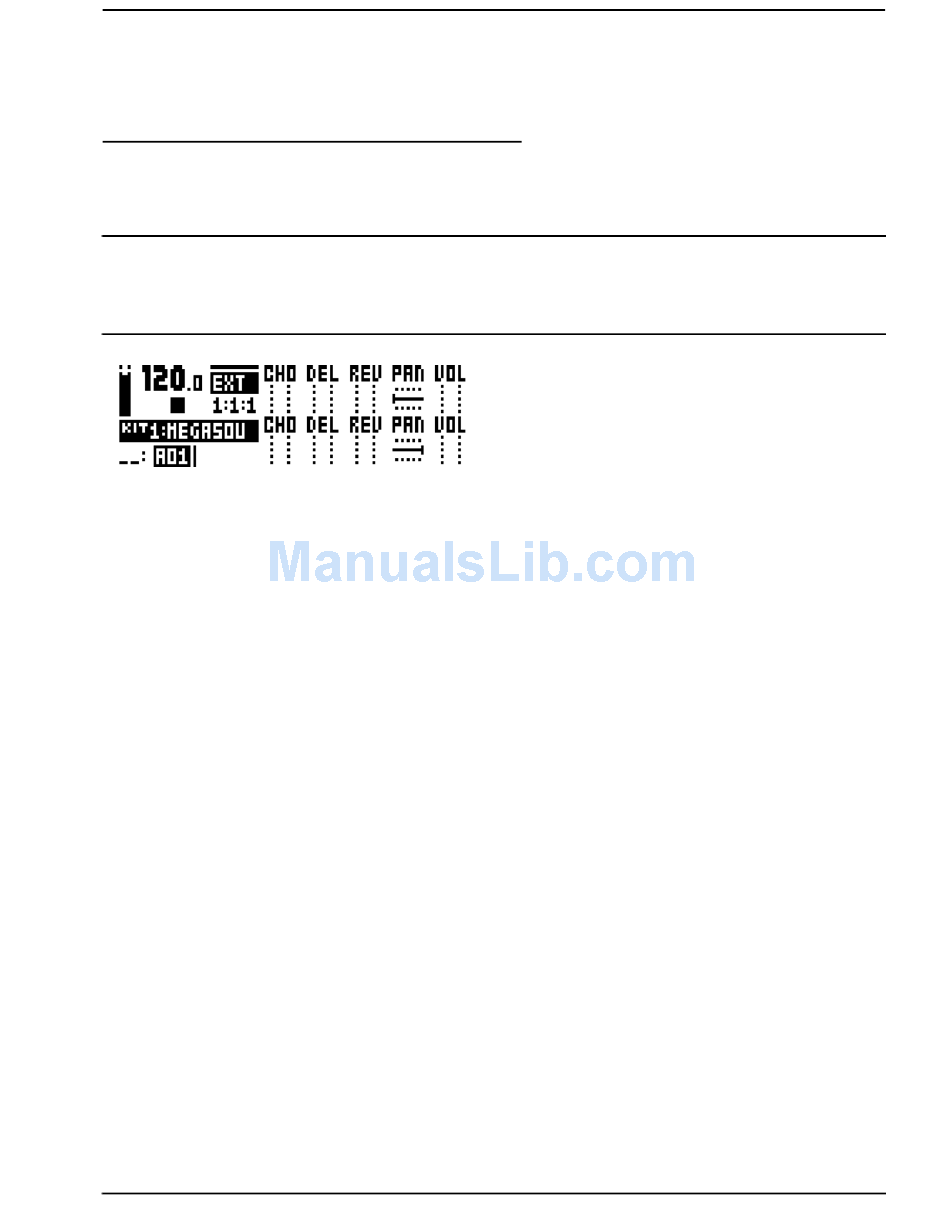

The EXT IN page controls the signal path from the two audio inputs to the main mixer. These external signals can be
routed to the effects and panned just like the four synth tracks.
EXT
CHO (Ext. L Chorus) controls how much of the signal coming
from the left external input that should be sent to the Wideshift
Chorus effect.
DEL (Ext. L Delay) controls how much of the signal coming from
the left external input that should be sent to the Saturator Delay
effect.
REV (Ext. L Reverb) controls how much of the signal coming
from the left external input that should be sent to the Supervoid
reverb effect.
PAN (Ext. L Pan) positions the signal coming from the left exter-
nal input in the stereo field. When using the audio inputs as a
stereo pair, it would be normal to pan this signal hard left.
VOL (Ext. L Volume) adjusts the volume of the signal coming
from the left external input.
CHO (Ext. R Chorus) controls how much of the signal coming
from the right external input that should be sent to the Wideshift
Chorus effect.
DEL (Ext. R Delay) controls how much of the signal coming from
the right external input that should be sent to the Saturator Delay
effect.
REV (Ext. R Reverb) controls how much of the signal coming
from the right external input that should be sent to the Supervoid
reverb effect.
PAN (Ext. R Pan) positions the signal coming from the right
external input in the stereo field. When using the audio inputs as
a stereo pair, it would be normal to pan this signal hard right.
VOL (Ext. R Volume) adjusts the volume of the signal coming
from the right external input.
