PANEL LAYOUT AND CONNECTORS

PANEL LAYOUT AND CONNECTORS
FRONT PANEL
1 2
Master
Volume
46
45
44
43
42
41
40
39
38
37
36
- +
35
34 33 32 31 30

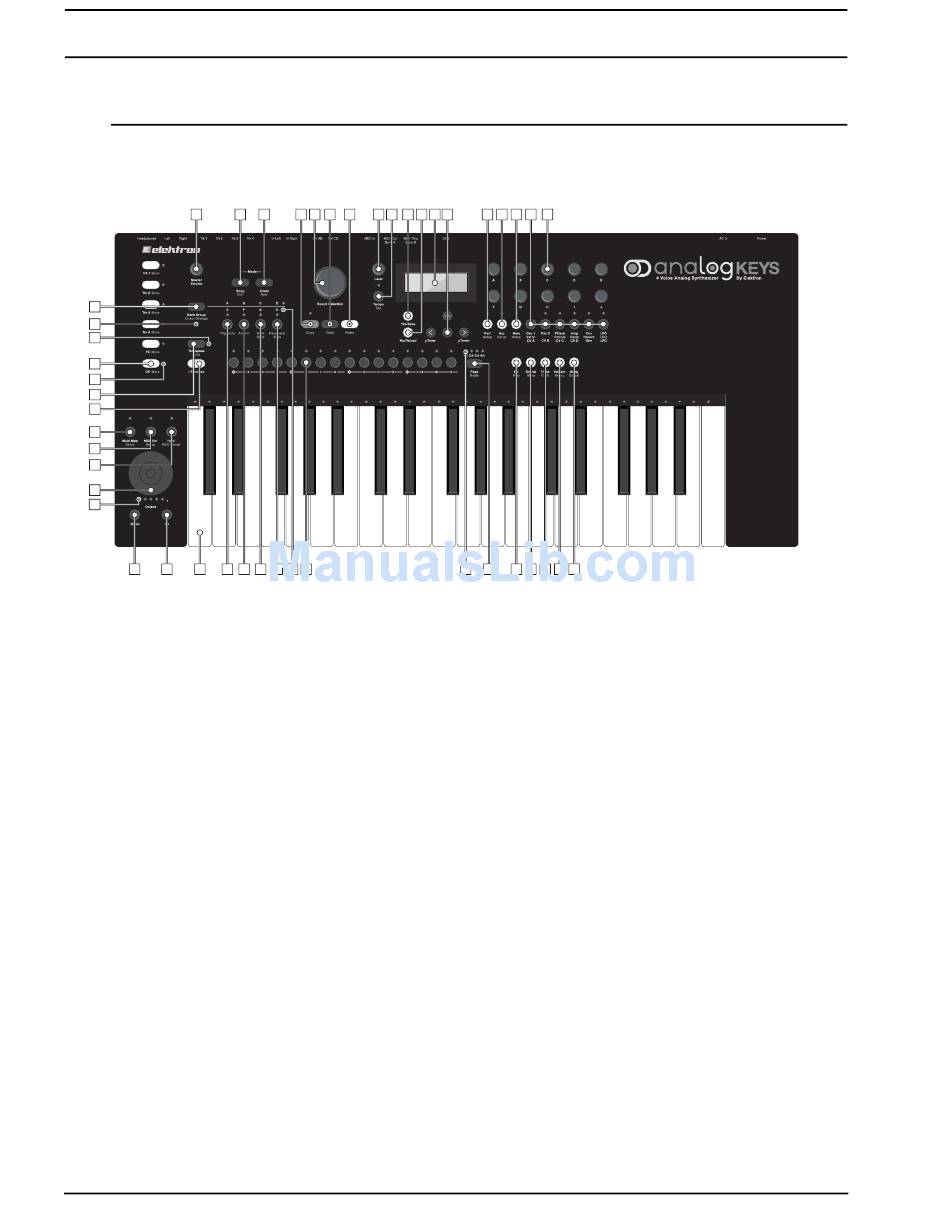

The Analog Keys Front Panel.
1. MASTER VOLUME sets the volume for the main outputs and the headphones output.
2. [SONG MODE] activates/deactivates SONG mode.
3. [CHAIN MODE] activates/deactivates CHAIN mode.
4. [RECORD] key. activates/deactivates GRID RECORDING mode. Starts LIVE RECORDING if held while
pressing [PLAY]. The secondary function is a copy operation.
5. SOUND SELECTION wheel allows quick access to Sounds. It is also used to scroll through menus and set
some parameter values.
6. [PLAY] starts the playback of the sequencer. The secondary function is a clear operation.
7. [STOP] stops playback. The secondary function is a paste operation.
8. LEVEL sets the overall volume level of the active track.
9. [TEMPO] opens the TEMPO menu. [FUNCTION] + [TEMPO] makes it possible to tap the tempo.
10. [YES/SAVE] key. Used for entering sub-menus and for confirming choices.
11. [NO/RELOAD] key. Used for exiting an active menu and backing one step.
12. The LCD window.
13. The [ARROW] keys. Used for menu navigation. They are called [UP], [DOWN], [LEFT] and [RIGHT].
14. [PERFORMANCE] enters PERFORMANCE mode.
15. [ARP] key. Controls for the arpeggiator of the active track are found here.
16. [NOTE] key. Note settings for the active track are made here.
17. [PARAMETER] keys switch between the PARAMETER pages of the active track. The upper white text leg-
end indicates the pages for the four synth tracks. The gray text is for the FX track pages and the white text
line beneath indicates the CV track pages. A second press on the [PARAMETER] key will open secondary
PARAMETER pages. <PARAMETER> LED indicates if the first (red) or second (green) page is active.
18. DATA ENTRY knobs. Used for adjusting parameters.
4
3 5 9 11
4 6 7 8 10 12
29 28 27 26
13 14 15 16 17 18
25 24 23 22 21 20 19
