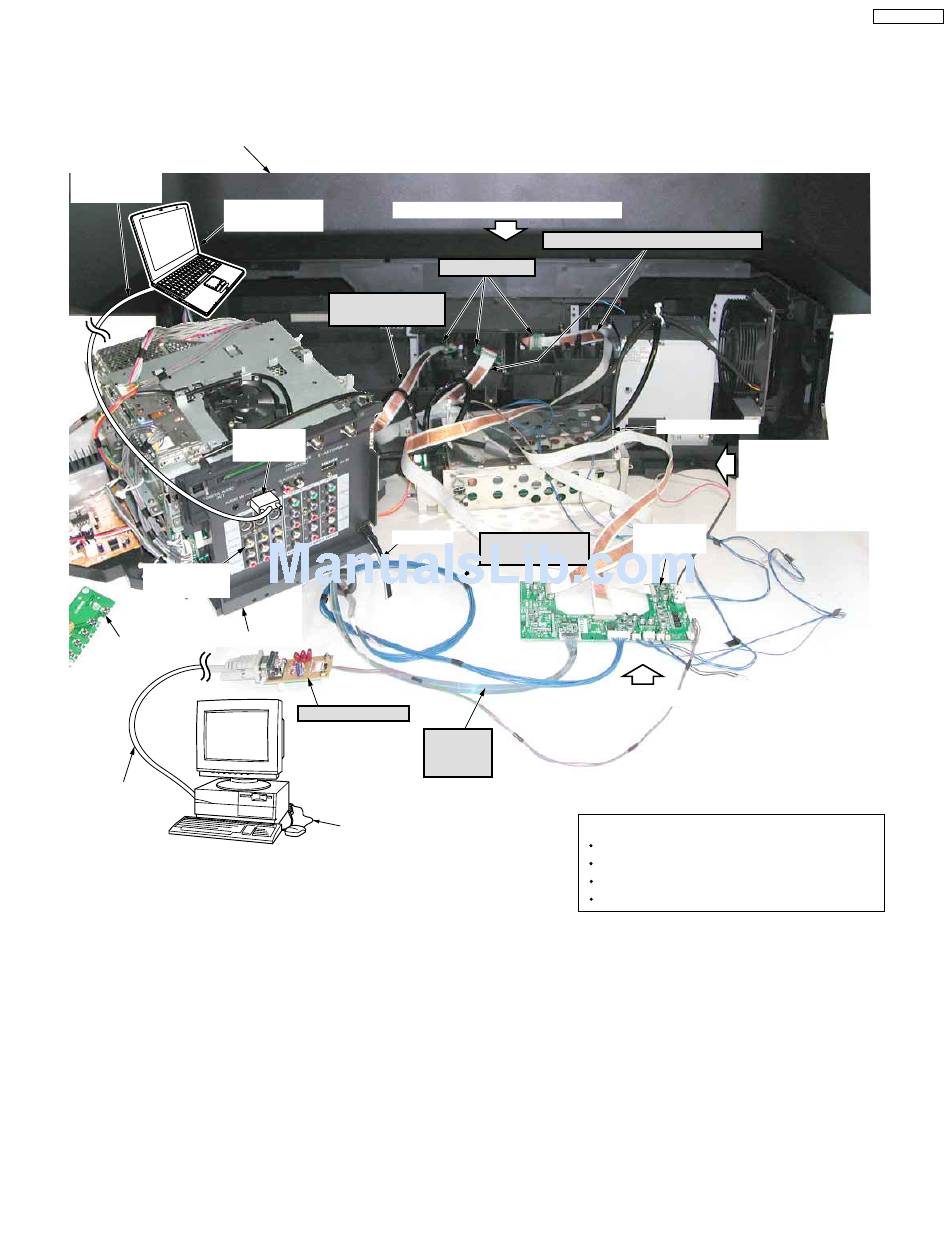

<The Projection Unit is placed into the Cabinet>
Cabinet
D-Sub 15 Pin
RGB Cable
PC (2) for Test
Pattern Signal
RGB Input
1 Terminal
Video Input 1
Terminal
TV/Tuner Unit
Operation
C.B.A.
D-Sub 9 Pin
Serial (RS232C)
Cable
CAUTION:
When disconnecting/reconnecting the LCD Panel Flexible Cables, be sure to unplug the AC Cord. Because when
disconnecting/reconnecting with AC plugged in, the LCD/Prism Unit may be damaged or broken.
For more details, See Fig. S2-6.
Relay P.C.B.s
LCD Panel Flat
Extension Cables
AC Cord
RS232C I/F Tool
Signal
Extension
Cable
PC (1) for LCD Drive
C.B.A. Adjustment
Fig. S2-5
35
LCD Panel Flat Extension Cables
Ballast C.B.A.
LCD Drive
Power
C.B.A.
Extension Cable
For more details, See Fig. S2-7.
The following original parts are not connected:
Thermistor 1 C.B.A.
Thermistor 2 C.B.A.
20-pin Cable
Cover Switch C.B.A.
PT-60LCX64-K
For more details,
See Fig. S2-8, S2-9,
S2-10.
