Installation

Installation, cont'd

Rear Panel Connectors

120-240VAC
50/60 Hz
1.2A MAX.
1

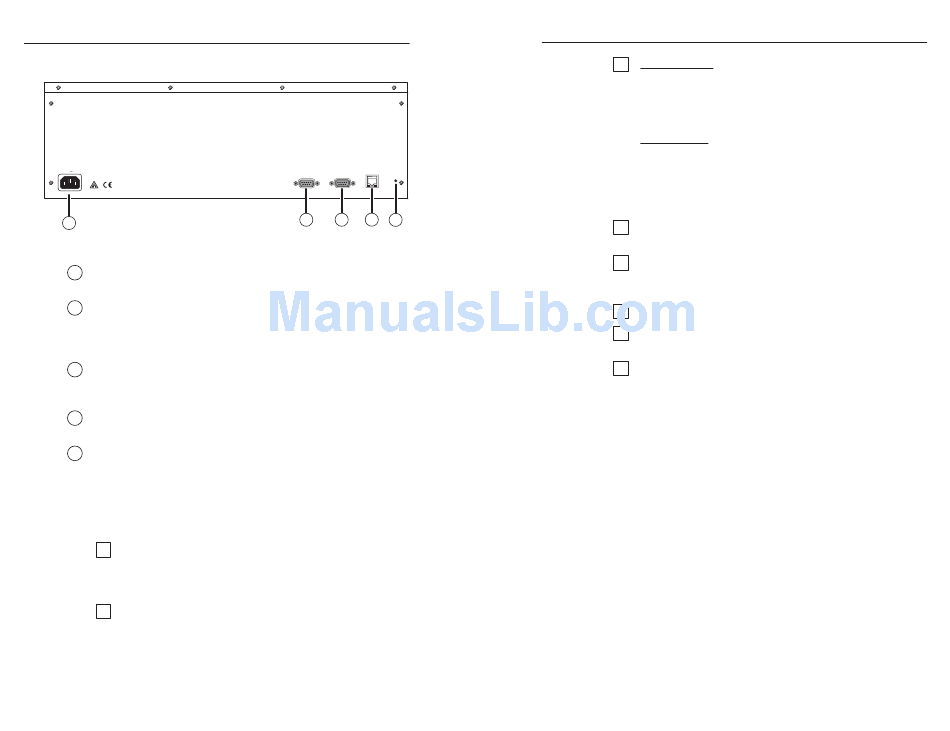

Figure 2-1 — RCP 2000 rear panel
AC power connector — Plug a standard IEC power cord from a
1
100 to 240 VAC, 50/60 Hz power source into this connector.
To Switcher port — This 9-pin female D connector provides for
2
two-way RS-232 serial communications with the SGS or ISS
switcher. Connect an RS-232 cable from this port to the
switcher's RS-232 port.
RS-232 port — This 9-pin female D connector provides for two-
3
way RS-232 serial communication with the computer to control
the RCP 2000.
RJ-45 connector — Connect the RCP 2000 to an ISS 108/408
4
over an Ethernet LAN using this female RJ-45 connector.
Reset button — Use an Extron Tweeker or a small screwdriver
5
to press this recessed button to reset the RCP 2000 unit. See
Resetting the Unit in chapter 3 for additional information.
Installation
To install and set up the RCP 2000, follow these steps:
Turn all of the equipment off. Make sure that the
1
ISS 108/408 or SGS 408 and all attached devices are
turned off and, if applicable, disconnected from the power
source.
Set the RCP 2000 on a table or other flat surface.
2
2-2
RCP 2000 • Installation
ETHERNET
TO SWITCHER
RS-232
RESET
ACT
LINK
2
3
4
5
SGS Switcher:
3
Attach one of the RS-232 cables provided with the RCP
2000 between the RS-232 Remote port on the rear panel of
the SGS and the To Switcher port on the rear panel of the
RCP 2000.
ISS Switcher:
Attach one of the RS-232 cables provided with the RCP
2000 between the RS-232 port on the rear panel of the ISS
and the To Switcher port on the rear panel of the RCP
2000; or attach a network cable between the ISS and RCP
2000 rear panel Ethernet ports.
Continue the procedure for installing the ISS 108/408 or
4
SGS 408.
Attach power cords and plug the ISS/SGS seamless
5
switcher, the input devices, and the output devices into a
grounded AC source.
Attach the power cord to the RCP 2000.
6
Select an input using the RCP 2000 top panel Program
7
input buttons. The image should now appear.
If the image does not appear, do the following:
8
Ensure that all devices are plugged in and receiving
power.
Check the cabling and make adjustments as needed.
Select a different input to check for an image.
RCP 2000 • Installation
2-3
