Manual IP Setup

The RCP 2000 unit ships with default server (ISS) and client
(RCP) IP addresses, as well as Subnet Mask and Gateway
Address, already set. These default IP addresses can be
changed to conform to the IP address format required for your
network or designated by your network administrator.

Changing the IP addresses

To change the IP addresses:
1. Press the four effects buttons (Wipe, Disolve,
Cut, and Take) simultaneously until the LCD
screen shows the RCP unit's MAC address
(xx-xx-xx-xx-xx-xx), and the Cut button lights.
PICTURE CONTROLS
COLOR CONT
SIZE CENTER DETAIL
BRIGHT
TINT
PROGRAM
2 3 4 5 6 7 8 9 10 11 12
2 3 4 5 6 7 8 9 10 11 12
PREVIEW
ION

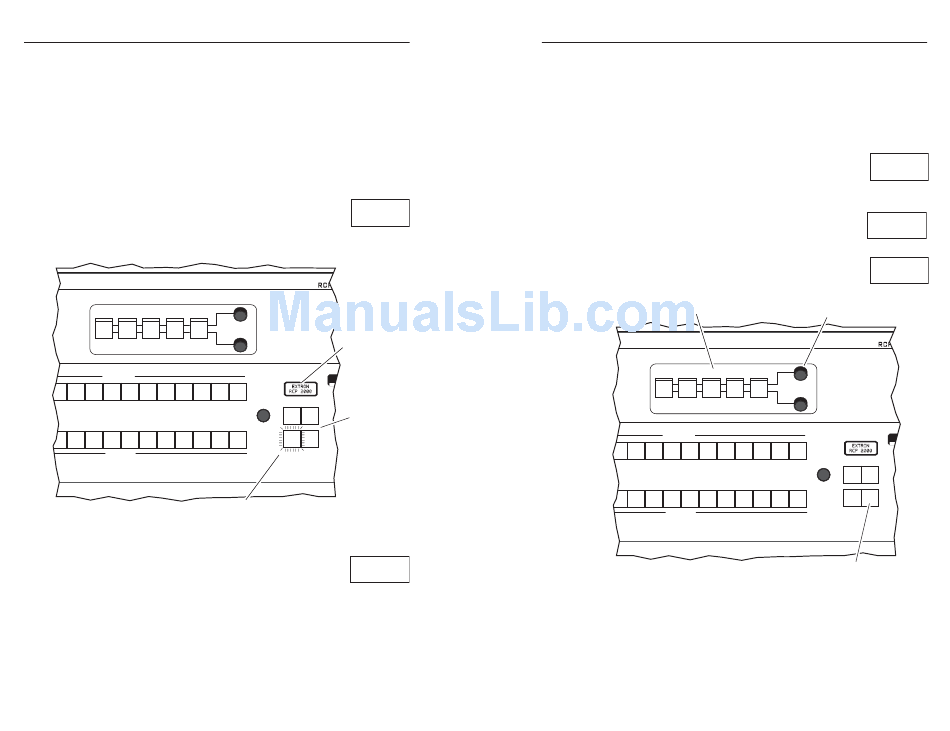

Figure 4-1 — Setting up for an IP address change
Press the Take button. The Cut button stays
2.
on, the Take, Cont/Bright, Size, and Center
buttons light, and the Color/Tint button
blinks. The client IP address (IP) is visible
on the LCD screen.
Using the H adjust knob, change the first block of the IP
3.
address. Then do one or more of the following::
• Press the Cont/Bright button and use the H adjust
knob to change the second block of the address.
4-2 RCP 2000 • Remote Control
X X - X X - X X
X X - X X - X X
H
2. After 2 seconds,
V
the display shows
the MAC address.
ADJUST
1. Press and hold
WIPE DISOLVE
all four buttons.
CUT TAKE
3. The CUT button is lit.
I 1 9 2 . 1 6 8 .
P 1 2 8 . 1 2 8
• Press the Size button and use the H adjust knob to
change the third block of the address.
• Press the Center button and use the H adjust knob to
change the fourth block of the address.
Press the Take button again. The server IP address (SI) is
4.
now visible on the LCD screen. Repeat step 3 to change
the server IP address.
5. Press the Take button again. The Subnet
Mask (SM) is now visible on the LCD screen.
Repeat step 3 to change the Subnet Mask.
6. Press the Take button again. The Gateway
(GM) is now visible on the LCD screen.
Repeat step 3 to change the Gateway.
Press the Detail button to exit and to save all
7.
address changes.
3. Use the Picture Controls buttons
2. Use the H adjust knob to
to move between address blocks.
PICTURE CONTROLS
COLOR CONT
SIZE CENTER DETAIL
TINT BRIGHT
PROGRAM
2 3 4 5 6 7 8 9 10 11 12
2 3 4 5 6 7 8 9 10 11 12
PREVIEW
ION
Figure 4-2 — Making the IP address change
RCP 2000 • Remote Control
S 1 9 2 . 1 6 8 .
I 1 2 8 . 1 2 8
S 2 5 5 . 2 5 5 .
M 2 5 5 . 1 2 8
G 2 5 5 . 2 5 5 .
M 2 5 5 . 2 5 5
change the address block.
H
V
ADJUST
WIPE DISOLVE
CUT TAKE
1. Press the TAKE button to
move between IP addresses.
4-3
