Quick Start Guide — RCP 2000
Step 1
Turn the equipment off and disconnect it from the power source.
Make sure that the ISS 108/408 or SGS 408 and all attached devices
are turned off and, if applicable, disconnected from the power
source.
Step 2
Set the RCP 2000 on a table or other flat surface.
Step 3
SGS Switcher:
Attach one of the RS-232 cables provided with the RCP 2000 between
the RS-232 Remote port on the rear panel of the SGS and the
To Switcher port on the rear panel of the RCP 2000.
ISS Switcher:
Attach one of the RS-232 cables provided with the RCP 2000 between
the RS-232 port on the rear panel of the ISS and the To Switcher port
on the rear panel of the RCP 2000; or attach a network cable between
the ISS and RCP 2000 rear panel Ethernet ports.
Projector
Extron
ISS 408
Seamless Switcher
8
7
R
6
R
UTS 5
INP R G
4
R G
3
R
2 G B
R
1 G B
R
G B V
R H/H
G B V
H/H
G B V
H/H
G B V
H/H
B H/H V
8
B H/H V 7
H/H V 6
Hz
50/60 H/H V 5
100- 240 1.2A MAX. 4
3
2
1
DVD Player
Codec
Extron
VCR RGB 109xi
Interface
Laptop
Podium PC

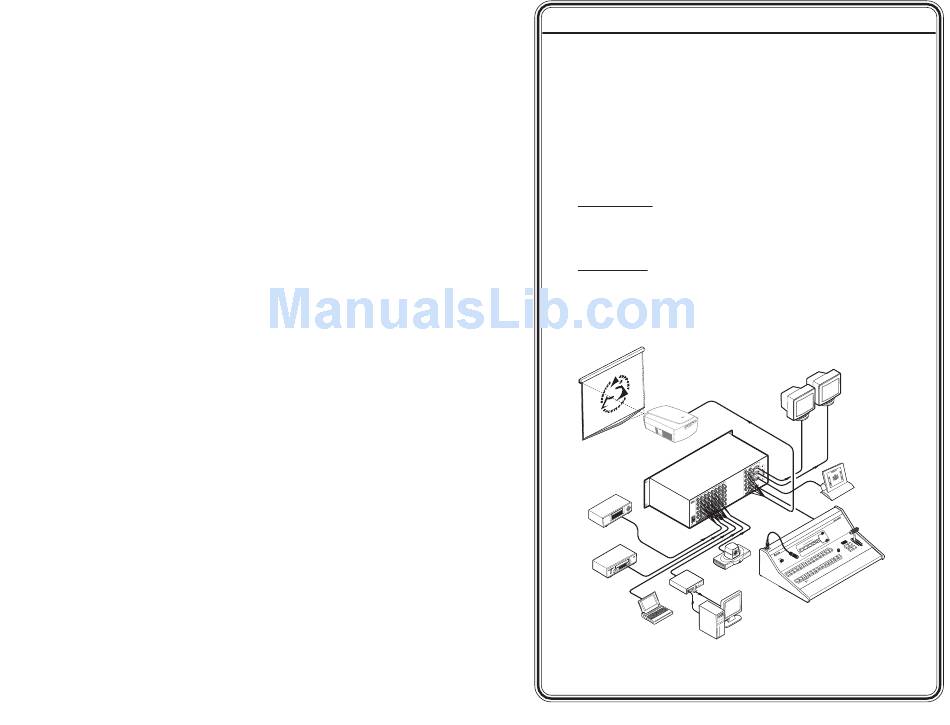

RCP 2000 to ISS connection diagram
RCP 2000 • Quick Start Guide
Preview
Monitor
Program
Monitor
M
GRA
W PRO
TS VIE OUT System
OU TPU PRE DVI
AM
PRO GR R VIEW
PRE
R
G Control
32
G RS-2
B
B
V
H/H ERN ET
ETH
V
H/H V
V
Extron
RCP 2000
Remote Control Panel
QS-1
