Access Control - Draytek Vigor2110 Series User Manual

4 . 1 3 . 4 A c c e s s
4 . 1 3 . 4 A c c e s
For additional security of wireless access, the Access Control facility allows you to restrict
the network access right by controlling the wireless LAN MAC address of client. Only the
valid MAC address that has been configured can access the wireless LAN interface. By

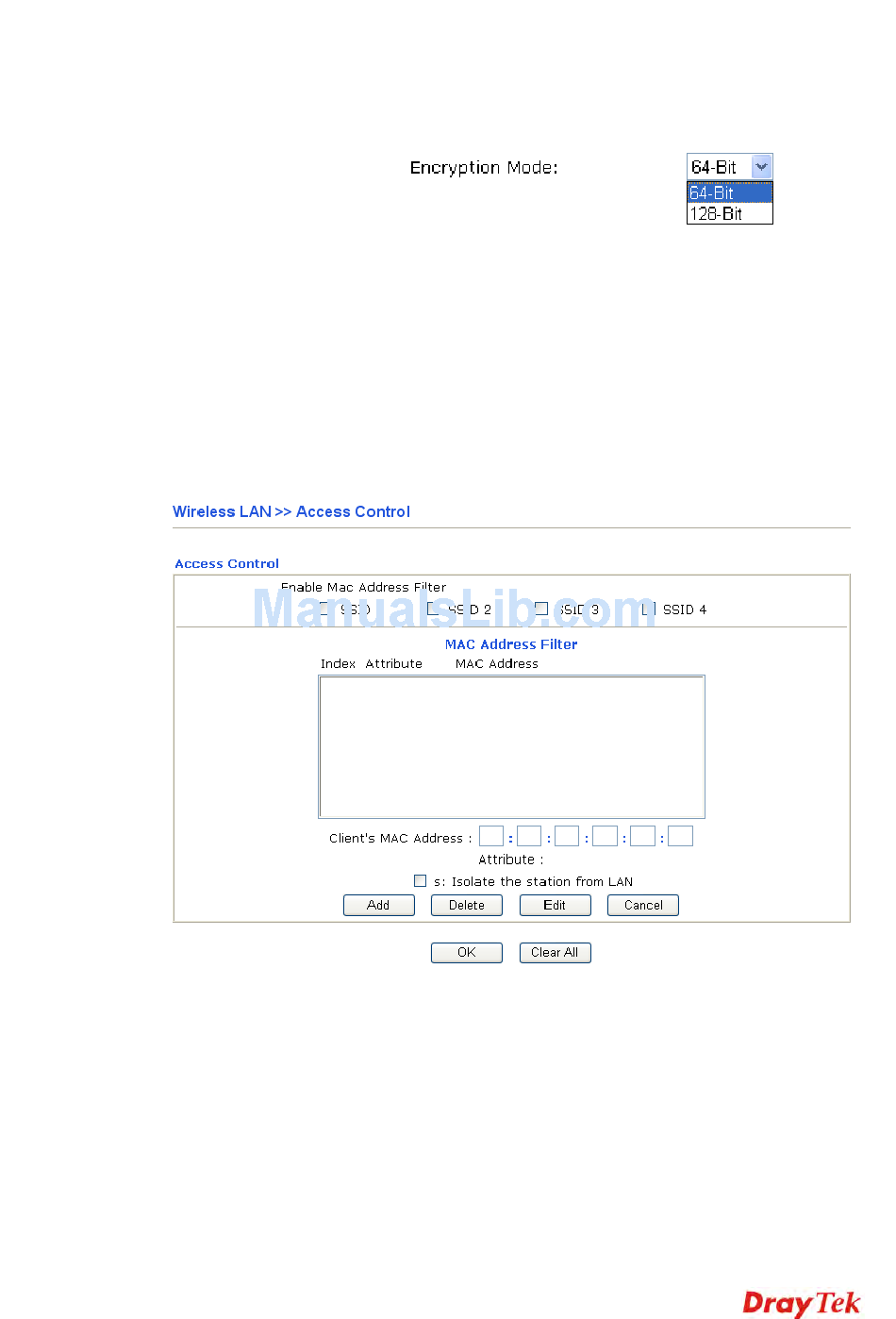

clicking the Access Control, a new web page will appear, as depicted below, so that you
could edit the clients' MAC addresses to control their access rights.
Enable Max Access Filter
MAC Address Filter
Client's MAC Address
Attribute
Vigor2110 Series User's Guide
C o n t r o l
s C o n t r o l
128-Bit - For 128 bits WEP key, either 13 ASCII
characters, such as ABCDEFGHIJKLM (or 26
hexadecimal digits leading by 0x, such as
0x4142434445464748494A4B4C4D).
All wireless devices must support the same WEP
encryption bit size and have the same key. Four keys can
be entered here, but only one key can be selected at a time.
The keys can be entered in ASCII or Hexadecimal. Check
the key you wish to use.
Select to enable the MAC Address filter for wireless LAN
identified with SSID 1 to 4 respectively. All the clients
(expressed by MAC addresses) listed in the box can be
grouped under different wireless LAN. For example, they
can be grouped under SSID 1 and SSID 2 at the same time
if you check SSID 1 and SSID 2.
Display all MAC addresses that are edited before.
Manually enter the MAC address of wireless client.
s: Isolate the station from LAN - select to isolate the
wireless connection of the wireless client of the MAC
address from LAN.
203
