TX rate (kbps)
RX rate (kbps)
Sessions
Action
4 . 1 5 . 7 P i n g D i a g
4 . 1 5 . 7 P i n g D i a g

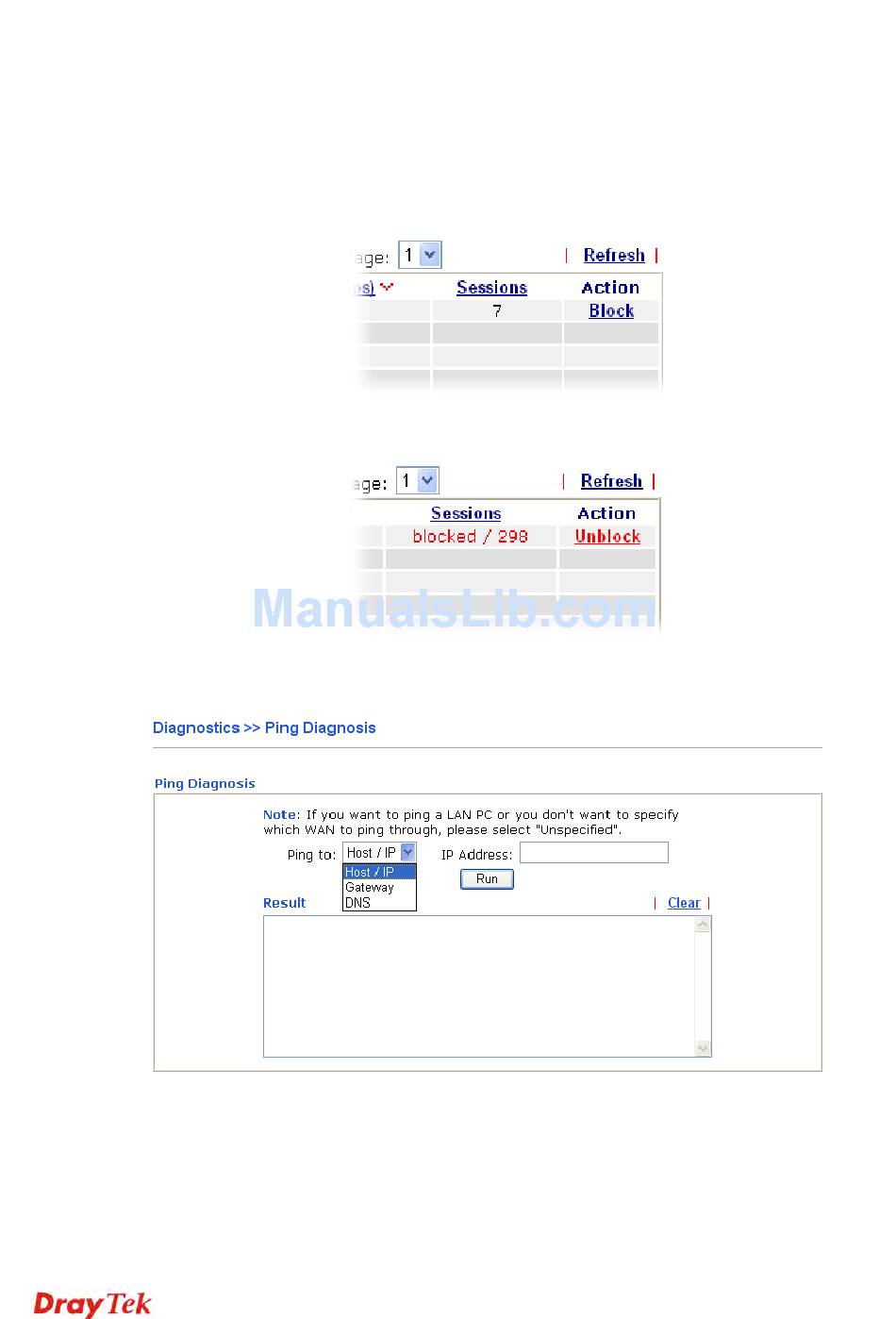

Click Diagnostics and click Ping Diagnosis to pen the web page.
Ping to
IP Address
Run
Display the transmission speed of the monitored device.
Display the receiving speed of the monitored device.
Display the session number that you specified in Limit Session web
page.
Block - can prevent specified PC accessing into Internet within 5
minutes.
Unblock – the device with the IP address will be blocked in five
minutes. The remaining time will be shown on the session column.
n o s i s
n o s i s
Use the drop down list to choose the destination that you want to
ping.
Type in the IP address of the Host/IP that you want to ping.
Click this button to start the ping work. The result will be displayed
on the screen.
