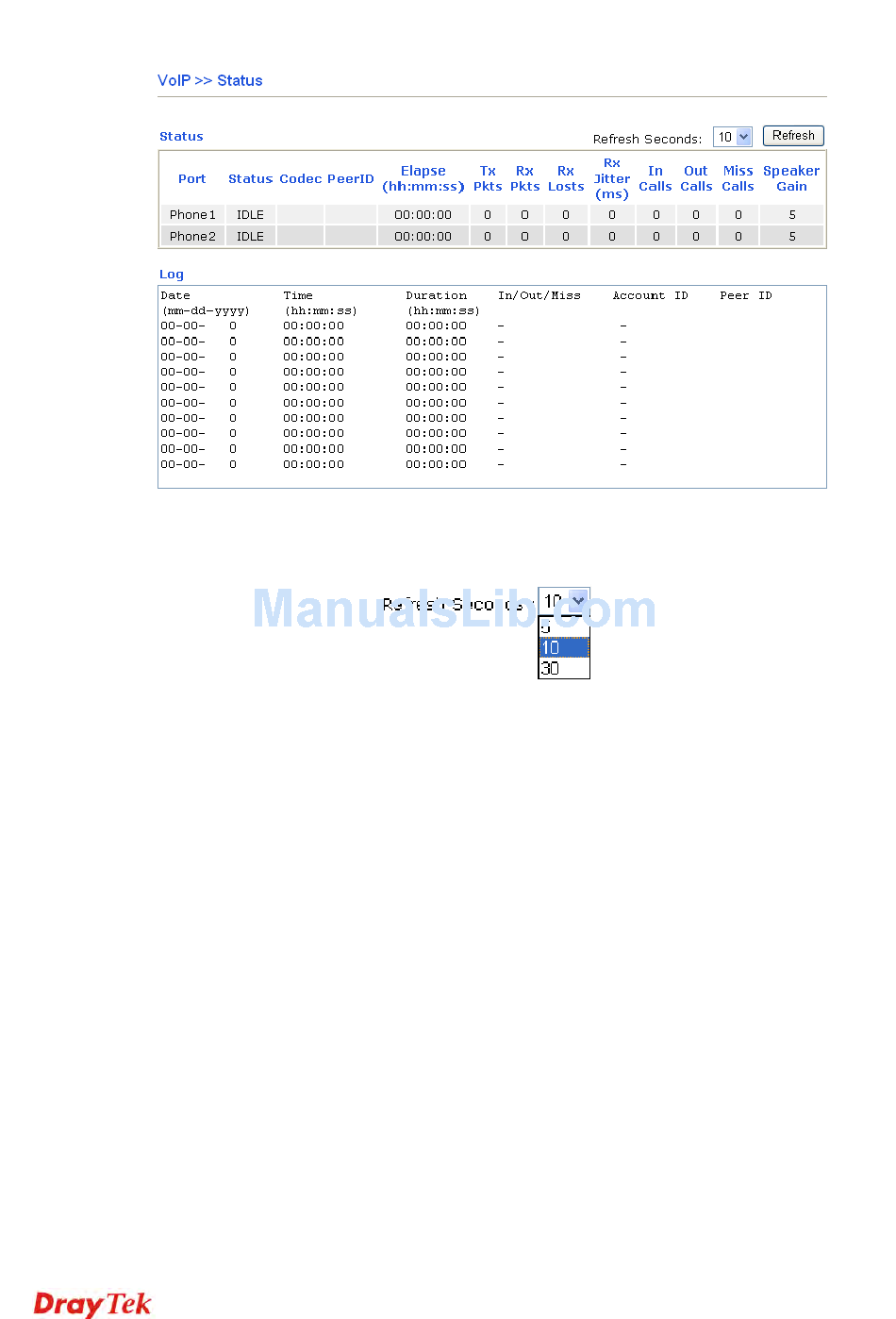

Refresh Seconds
Port
Status
Codec
PeerID
Elapse
Tx Pkts
Rx Pkts
Rx Losts
Rx Jitter
Specify the interval of refresh time to obtain the latest VoIP
calling information. The information will update immediately
when the Refresh button is clicked.
It shows current connection status for the port of Phone1 and
Phone2.
It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established
(busy tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and
waiting for remote user's answer.
ALERTING - Indicates that a call is coming.
ACTIVE-Indicates that the VoIP connection is launched.
Indicates the voice codec employed by present channel.
The present in-call or out-call peer ID (the format may be IP or
Domain).
The format is represented as hours:minutes:seconds.
Total number of transmitted voice packets during this
connection session.
Total number of received voice packets during this connection
session.
Total number of lost packets during this connection session.
The jitter of received voice packets.
