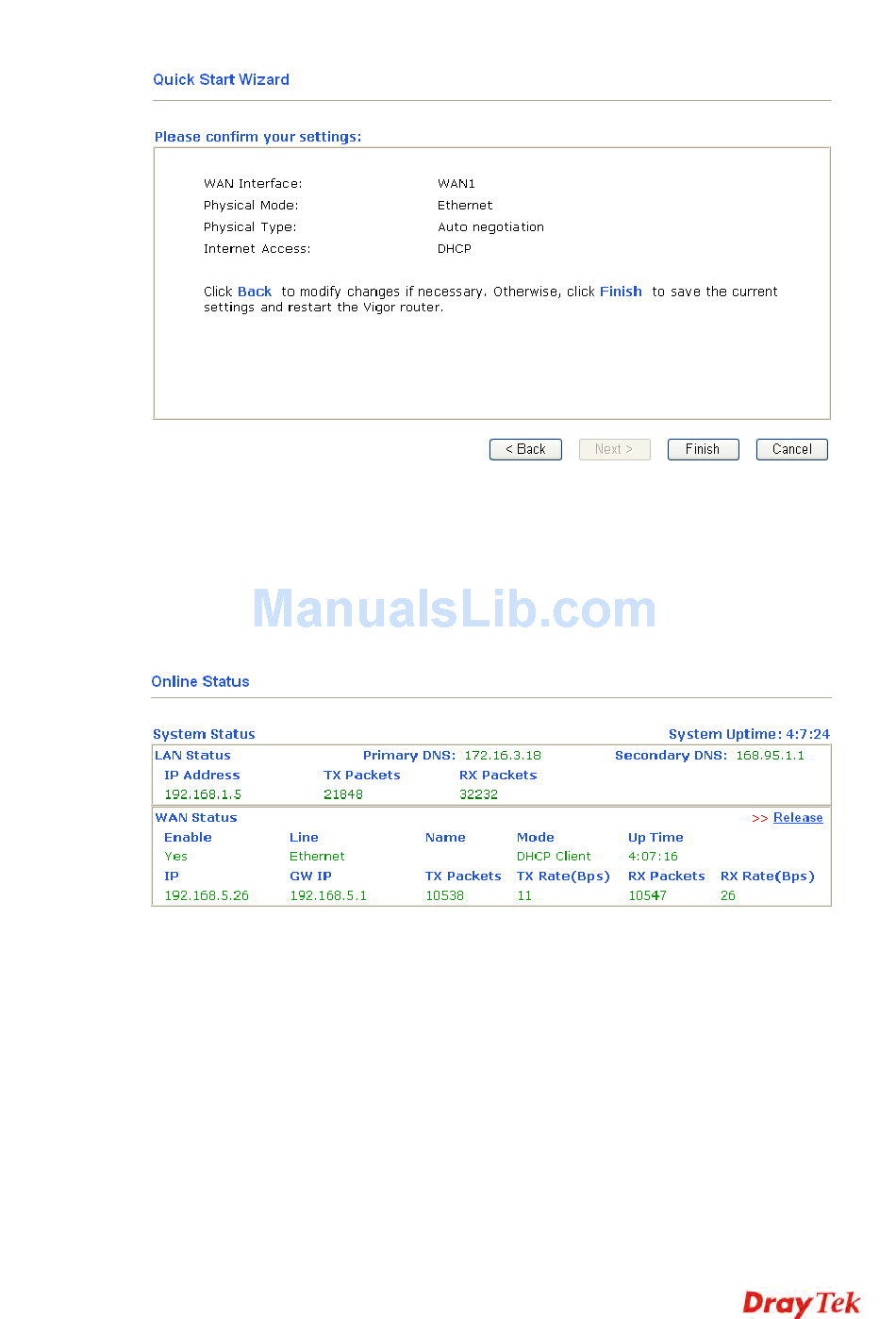

Click Finish. Then, the system status of this protocol will be shown.
2
.
5
O
n
l
i
n
e
S
t
a
2
.
5
O
n
l
i
n
e
S
t
a
The online status shows the system status, WAN status, and other status related to this router
within one page. If you select PPPoE/PPPoA as the protocol, you will find out a link of Dial
PPPoE or Drop PPPoE in the Online Status web page.
Online status for DHCP
Detailed explanation is shown below:
Primary DNS
Secondary DNS
LAN Status
IP Address
TX Packets
RX Packets
WAN Status
Line
Vigor2110 Series User's Guide
t
u
s
t
u
s
Displays the IP address of the primary DNS.
Displays the IP address of the secondary DNS.
Displays the IP address of the LAN interface.
Displays the total transmitted packets at the LAN interface.
Displays the total number of received packets at the LAN interface.
Displays the physical connection (Ethernet) of this interface.
23
