Remote Dial-In User - Draytek Vigor2110 Series User Manual

Profile Name
Accept Any Peer ID
Accept Subject Alternative
Name
Accept Subject Name
4 . 1 0 . 5 R e m o t
4 . 1 0 . 5 R e m o t
You can manage remote access by maintaining a table of remote user profile, so that users can
be authenticated to dial-in via VPN connection. You may set parameters including specified
connection peer ID, connection type (VPN connection - including PPTP, IPSec Tunnel, and
L2TP by itself or over IPSec) and corresponding security methods, etc.

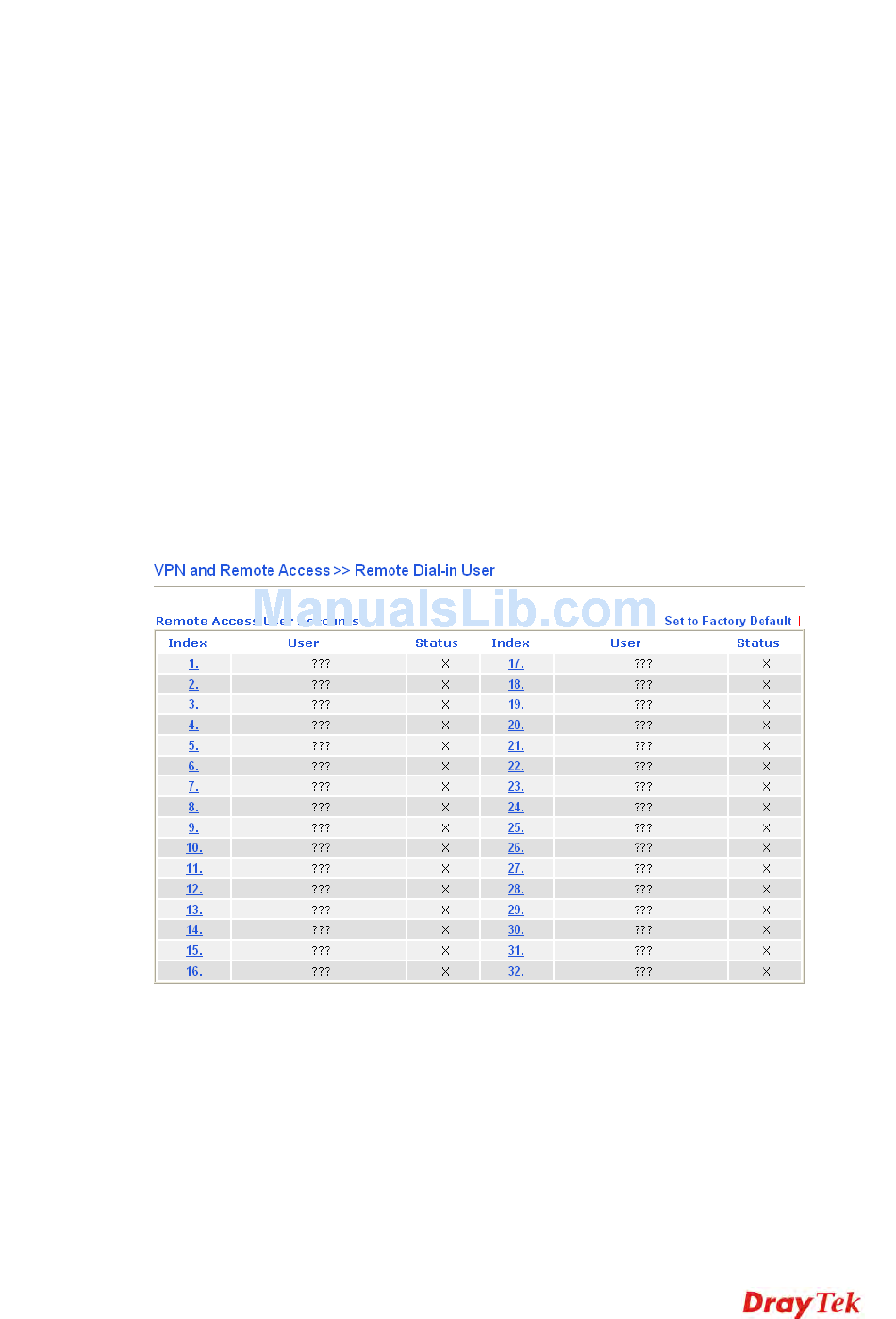

The router provides 32 access accounts for dial-in users. Besides, you can extend the user
accounts to the RADIUS server through the built-in RADIUS client function. The following
figure shows the summary table.
Set to Factory Default
Index
User
Status
Vigor2110 Series User's Guide
Type in .
Click to accept any peer regardless of its identity.
Click to check one specific field of digital signature to accept
the peer with matching value. The field can be IP Address,
Domain, or E-mail Address. The box under the Type will
appear according to the type you select and ask you to fill in
corresponding setting.
Click to check the specific fields of digital signature to accept
the peer with matching value. The field includes Country (C),
State (ST), Location (L), Organization (O), Organization
Unit (OU), Common Name (CN), and Email (E).
e D i a l - i n U s e r
e D i a l - i n U s e r
Click to clear all indexes.
Click the number below Index to access into the setting page of

Remote Dial-in User.

Display the username for the specific dial-in user of the
LAN-to-LAN profile. The symbol ??? represents that the
profile is empty.
Display the access state of the specific dial-in user. The
symbol V and X represent the specific dial-in user to be active
and inactive, respectively.
163
