3 . 8 . 2 P i n g D i a
3 . 8 . 2 P i n g D i a

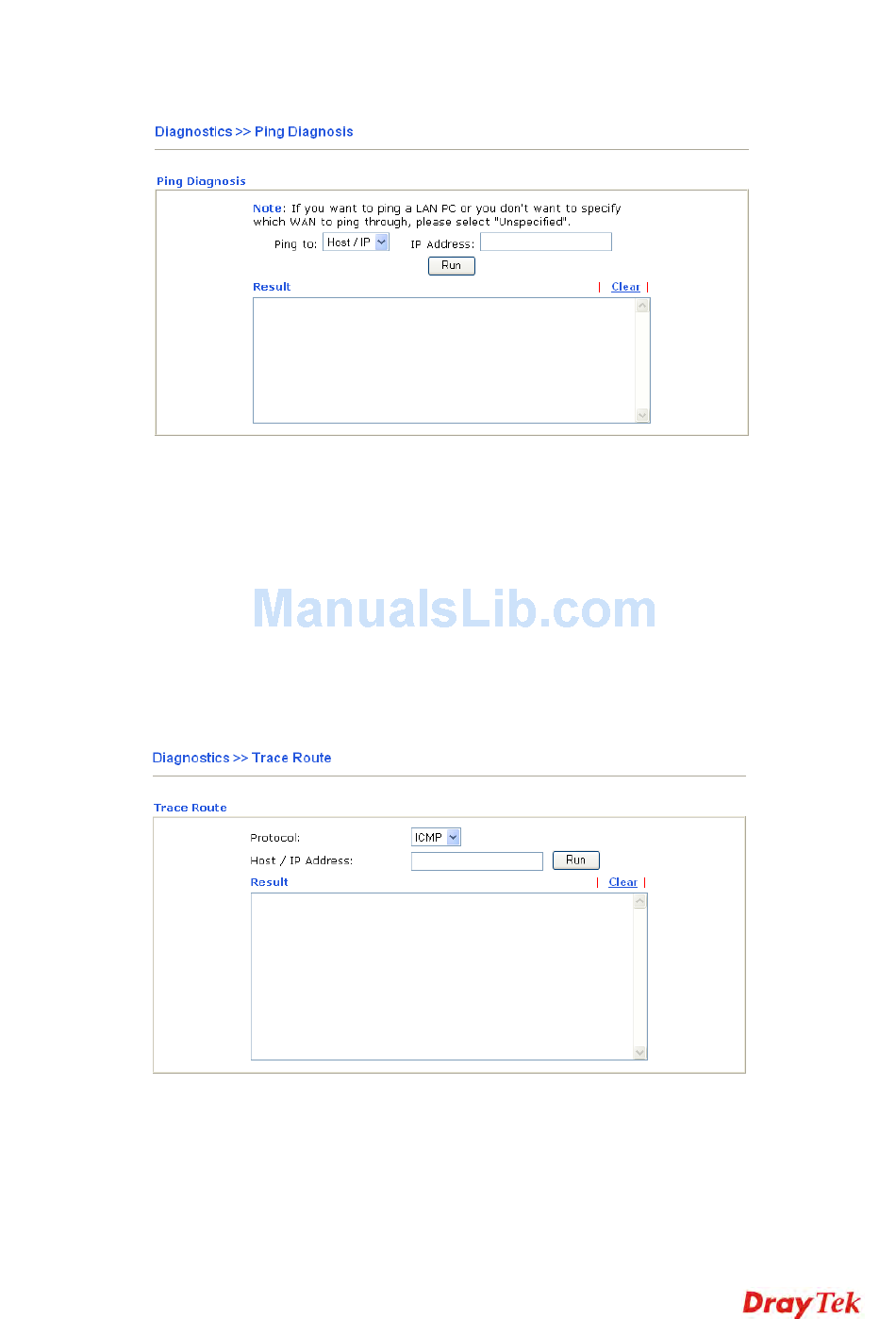

Click Diagnostics and click Ping Diagnosis to pen the web page.
Ping to
IP Address
Run
Clear
3 . 8 . 3 T r a c e R
3 . 8 . 3 T r a c e R
Click Diagnostics and click Trace Route to open the web page. This page allows you to trace
the routes from router to the host. Simply type the IP address of the host in the box and click
Run. The result of route trace will be shown on the screen.
Protocol
Host/IP Address
Run
Clear
Vigor2110 Series User's Guide
g n o s i s
g n o s i s
Use the drop down list to choose the destination that you want to
ping.
Type in the IP address of the Host/IP that you want to ping.
Click this button to start the ping work. The result will be displayed
on the screen.
Click this link to remove the result on the window.
o u t e
o u t e
Use the drop down list to choose the interface that you want to ping
through.
It indicates the IP address of the host.
Click this button to start route tracing work.
Click this link to remove the result on the window.
81
