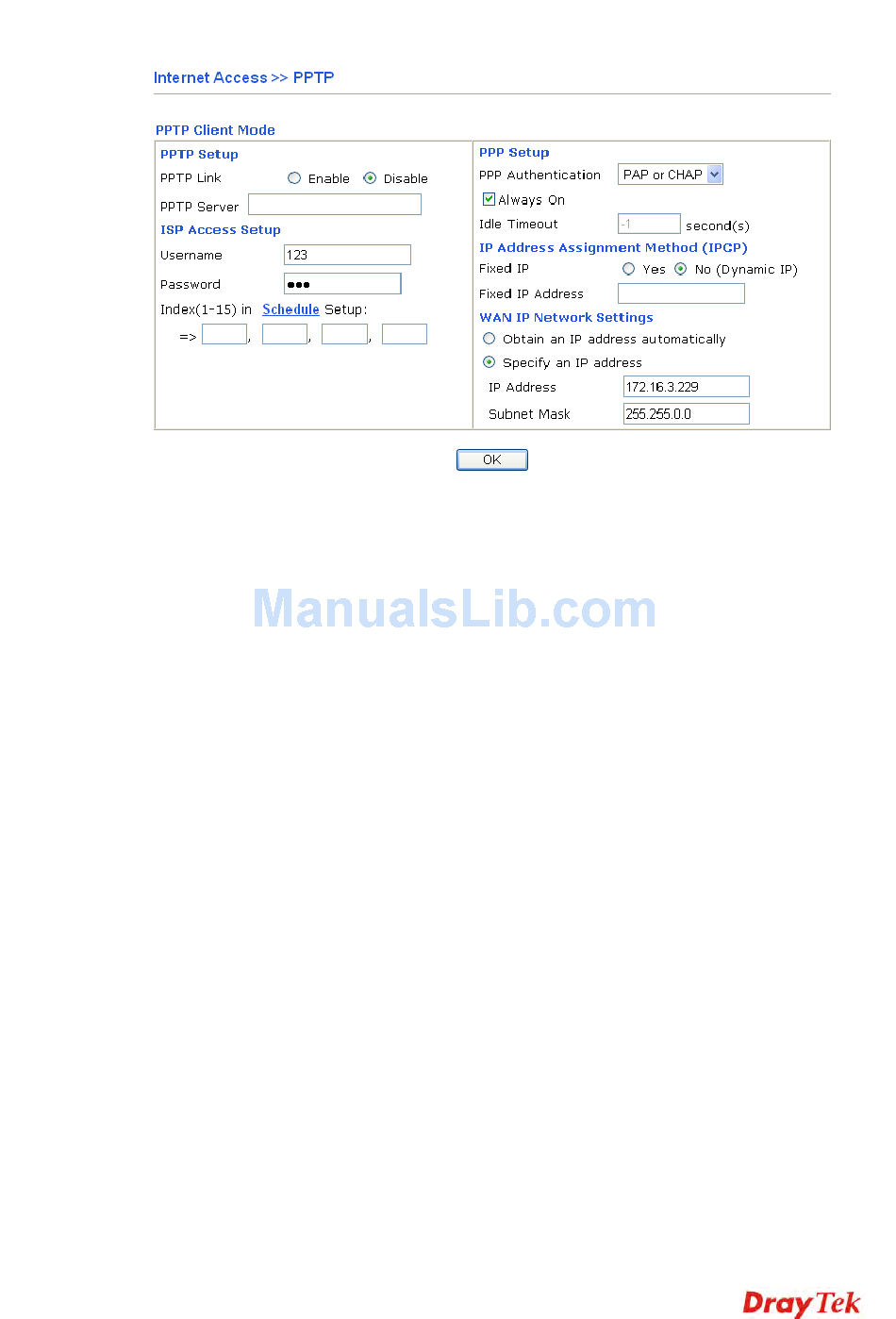

PPTP Setup
ISP Access Setup
PPP Setup
IP Address
Assignment
Method(IPCP)
WAN IP Network
Settings
Vigor2110 Series User's Guide
Enable - Click this radio button to enable a PPTP client to establish
a tunnel to a DSL modem on the WAN interface.
Disable – Click this radio button to close the connection through
PPTP.
PPTP Server - Specify the IP address of the PPTP/L2TP server if
you enable PPTP/L2TP client mode.
Username -Type in the username provided by ISP in this field.
Password -Type in the password provided by ISP in this field.
Index (1-15) in Schedule Setup - You can type in four sets of time
schedule for your request. All the schedules can be set previously in
Application – Schedule web page and you can use the number that
you have set in that web page.
PPP Authentication - Select PAP only or PAP or CHAP for PPP.
Idle Timeout - Set the timeout for breaking down the Internet after
passing through the time without any action.
Fixed IP - Usually ISP dynamically assigns IP address to you each
time you connect to it and request. In some case, your ISP provides
service to always assign you the same IP address whenever you
request. In this case, you can fill in this IP address in the Fixed IP
field. Please contact your ISP before you want to use this function.
Click Yes to use this function and type in a fixed IP address in the
box.
Fixed IP Address -Type a fixed IP address.
Obtain an IP address automatically – Click this button to obtain
the IP address automatically.
Specify an IP address – Click this radio button to specify some
data.
IP Address – Type the IP address.
Subnet Mask – Type the subnet mask.
