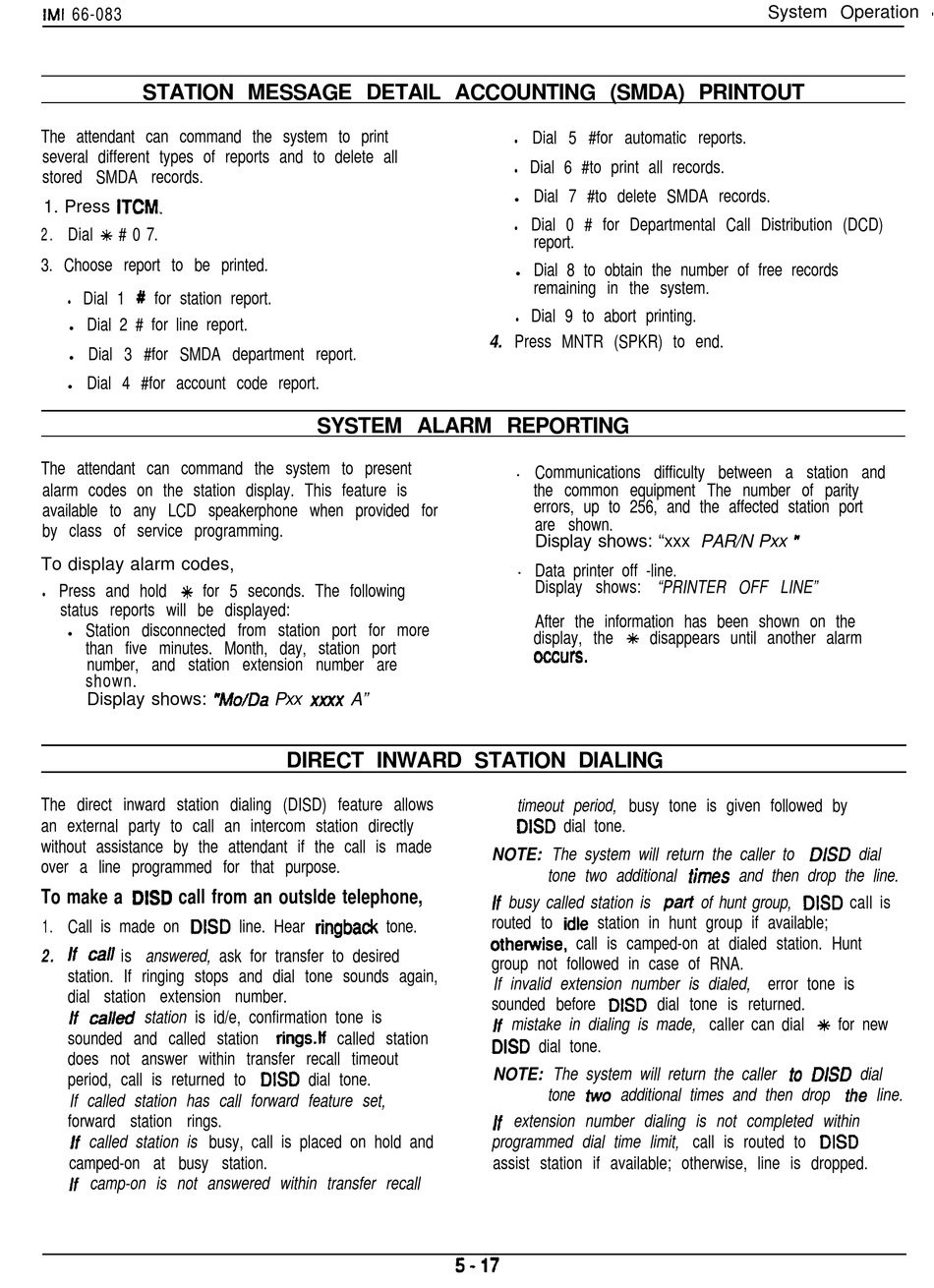

STATION MESSAGE DETAIL ACCOUNTING (SMDA) PRINTOUT

The attendant can command the system to print
several different types of reports and to delete all
stored SMDA records.
1. Press ITCM.
2 . Dial % # 0 7.
3. Choose report to be printed.
Dial 1 # for station report.
l
Dial 2 # for line report.
l
Dial 3 #for SMDA department report.
l
Dial 4 #for account code report.
l
The attendant can command the system to present
alarm codes on the station display. This feature is
available to any LCD speakerphone when provided for
by class of service programming.
To display alarm codes,
Press and hold ++ for 5 seconds. The following
l
status reports will be displayed:
Station disconnected from station port for more
l
than five minutes. Month, day, station port
number, and station extension number are
shown.
Display shows: "MO/Da Pxx xxxx A"
The direct inward station dialing (DISD) feature allows
an external party to call an intercom station directly
without assistance by the attendant if the call is made
over a line programmed for that purpose.
To make a DISD call from an outslde telephone,
1. Call is made on DISD line. Hear ringback tone.
2.
station. If ringing stops and dial tone sounds again,
dial station extension number.
sounded and called station rings.ff called station
does not answer within transfer recall timeout
period, call is returned to DISD dial tone.
If called station has call forward feature set,
forward station rings.
camped-on at busy station.

SYSTEM ALARM REPORTING

DIRECT INWARD STATION DIALING

Dial 5 #for automatic reports.
l
Dial 6 #to print all records.
l
Dial 7 #to delete SMDA records.
l
Dial 0 # for Departmental Call Distribution (DCD)
l
report.
Dial 8 to obtain the number of free records
l
remaining in the system.
Dial 9 to abort printing.
l
4. Press MNTR (SPKR) to end.
.
Communications difficulty between a station and
the common equipment The number of parity
errors, up to 256, and the affected station port
are shown.
Display shows: "xxx PAR/N Pxx "
.
Data printer off -line.
Display shows: "PRINTER OFF LINE"
After the information has been shown on the
display, the * disappears until another alarm
timeout period, busy tone is given followed by
NOTE: The system will return the caller to DISD dial
tone two additional fimes and then drop the line.
routed to idle station in hunt group if available;
group not followed in case of RNA.
If invalid extension number is dialed, error tone is
sounded before DISD dial tone is returned.
NOTE: The system will return the caller to DISD dial
tone two additional times and then drop the line.
programmed dial time limit, call is routed to DISD
assist station if available; otherwise, line is dropped.
System Operation s
