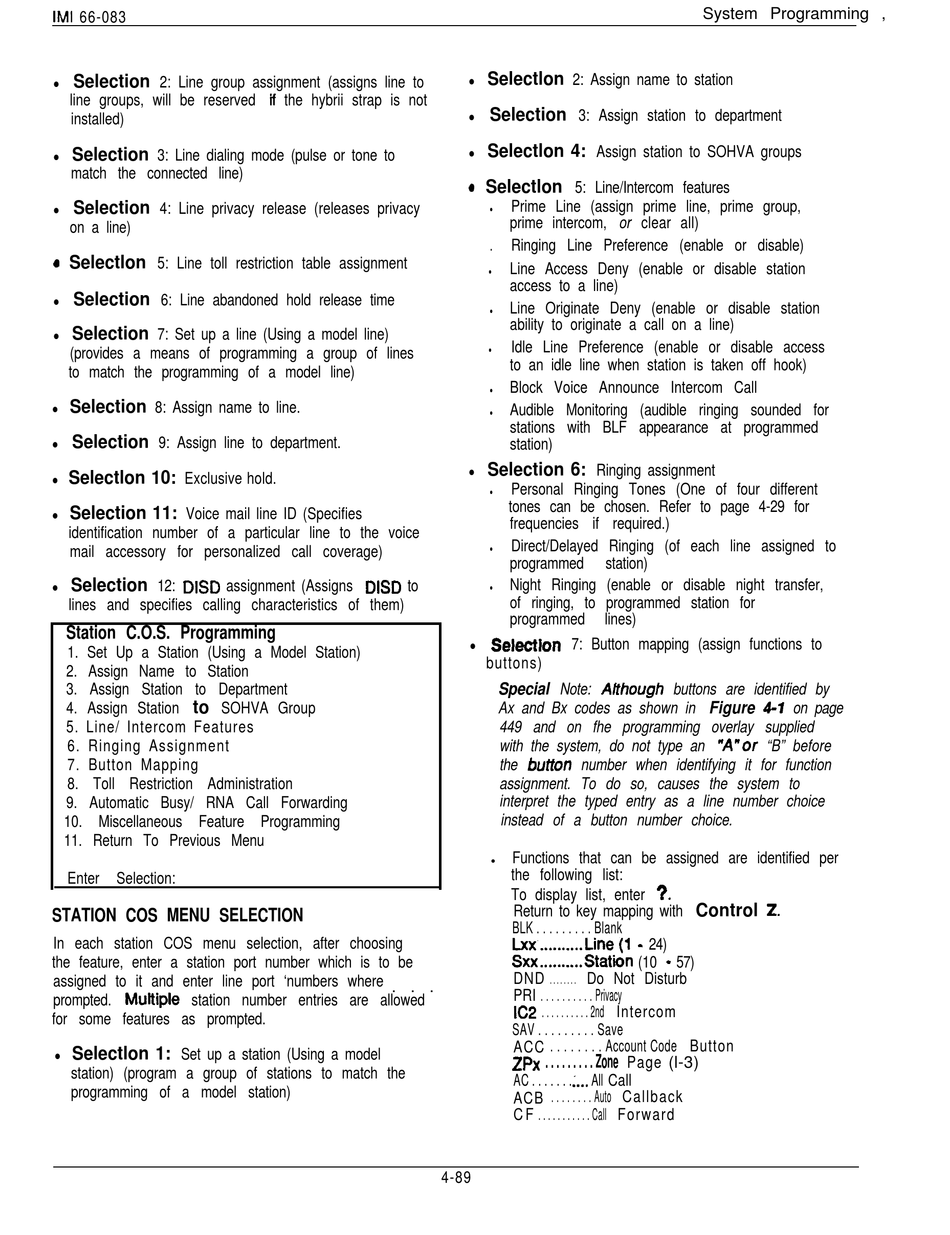

Station Cos Menu Selections - Comdial DIGITECH System Manual

Selection
2: Line group assignment (assigns line to
l
line groups, will be reserved if the hybrii strap is not
installed)
Selection
3: Line dialing mode (pulse or tone to
l
match the connected line)
Selection
4: Line privacy release (releases privacy
l
on a line)
5: Line toll restriction table assignment
Selection
6: Line abandoned hold release time
l
Selection
7: Set up a line (Using a model line)
l
(provides a means of programming a group of lines
to match the programming of a model line)
Selection
8: Assign name to line.
l
Selection
9: Assign line to department.
l
Selectlon 10:
Exclusive hold.
l
Selection 11:
Voice mail line ID (Specifies
l
identification number of a particular line to the voice
mail accessory for personalized call coverage)
Selection
12: DISD assignment (Assigns DISD to
l
lines and specifies calling characteristics of them)
Station C.O.S. Programming
1. Set Up a Station (Using a Model Station)
2. Assign Name to Station
3. Assign Station to Department
to
4. Assign Station SOHVA Group
5. Line/ Intercom Features
6. Ringing Assignment
7. Button Mapping
8. Toll Restriction Administration
9. Automatic Busy/ RNA Call Forwarding
10. Miscellaneous Feature Programming
11. Return To Previous Menu
Enter Selection:
STATION COS MENU SELECTION
In each station COS menu selection, after choosing
the feature, enter a station port number which is to be
assigned to it and enter line port 'numbers where . . .
prompted. Muttiple station number entries are allowed
for some features as prompted.
Selectlon 1:
Set up a station (Using a model
l
station) (program a group of stations to match the
programming of a model station)
Selectlon
2: Assign name to station
l
Selection
3: Assign station to department
l
Selectlon 4:
Assign station to SOHVA groups
l
5: Line/Intercom features
Prime Line (assign prime line, prime group,
l
prime intercom, or clear all)
. Ringing Line Preference (enable or disable)
Line Access Deny (enable or disable station
l
access to a line)
Line Originate Deny (enable or disable station
l
ability to originate a call on a line)
Idle Line Preference (enable or disable access
l
to an idle line when station is taken off hook)
Block Voice Announce Intercom Call
l
Audible Monitoring (audible ringing sounded for
l
stations with BLF appearance at programmed
station)
Selection 6:
Ringing assignment
l
Personal Ringing Tones (One of four different
l
tones can be chosen. Refer to page 4-29 for
frequencies if required.)
Direct/Delayed Ringing (of each line assigned to
l
programmed station)
Night Ringing (enable or disable night transfer,
l
of ringing, to programmed station for
programmed lines)
7: Button mapping (assign functions to
l
buttons)
Special Note: Affhough
Ax and Bx codes as shown in Figure 4-l on page
449 and on fhe programming overlay supplied
with the system, do not type an *A"or "B" before
the buffon number when identifying it for function
assignment. To do so, causes the system to
interpret the typed entry as a line number choice
instead of a button number choice.
Functions that can be assigned are identified per
l
the following list:
To display list, enter ?.
Return to key mapping with
BLK . . . . . . . . . Blank
Line (1 - 24)
DND . . . . . . . . Do Not Disturb
PRI . . . . . . . . . . Privacy
SAV . . . . . . . . . Save
ACC . . . . . . . . Account Code Button
. . . . . . . . . Zone
AC . . . . . . . ;... All Call
ACB . . . . . . . . Auto Callback
C F . . . . . . . . . . . Call Forward
4-89
System Programming ,
buttons are identified by
Control 2.
Page (l-3)
