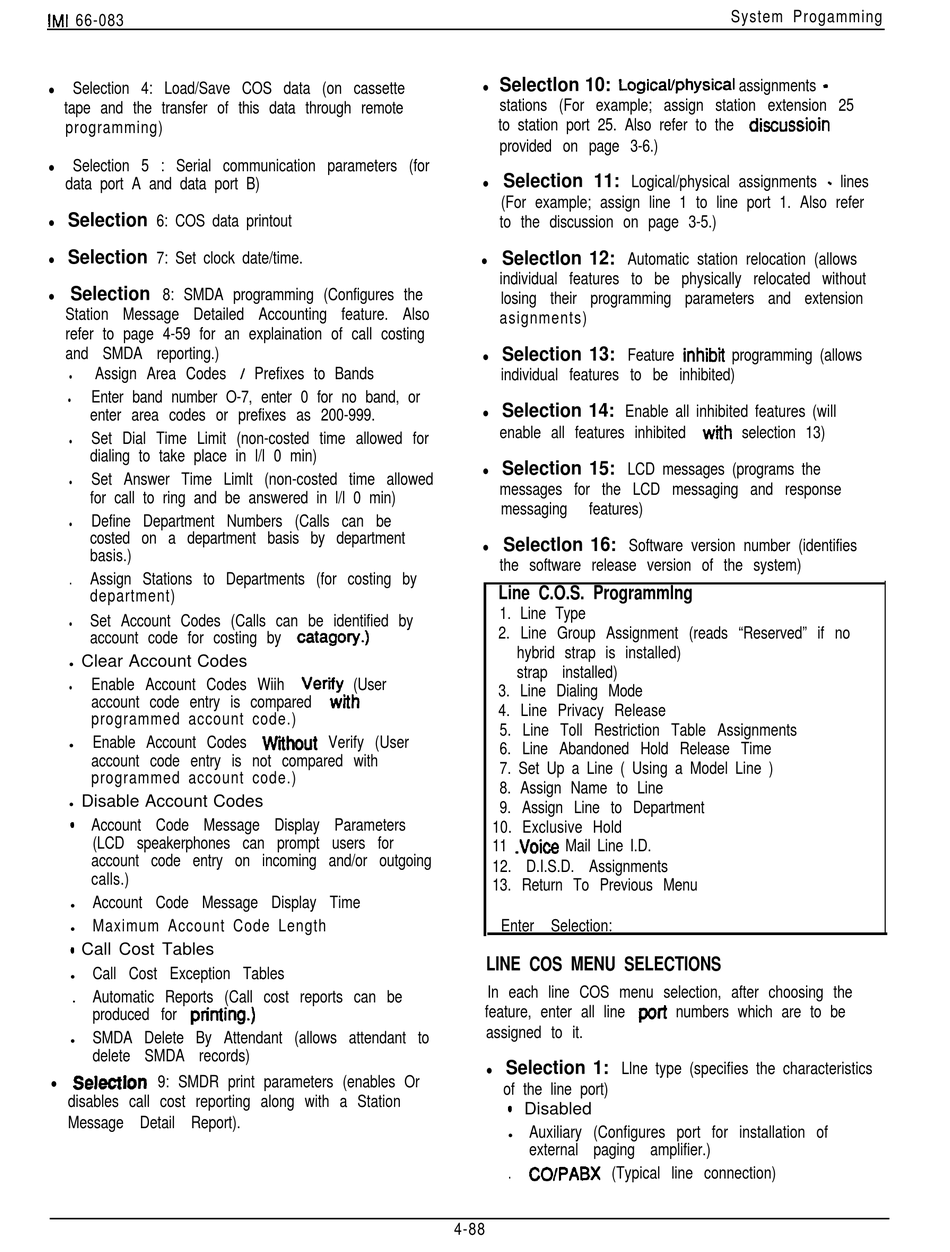

Line Cos Menu Selections - Comdial DIGITECH System Manual

Selection 4: Load/Save COS data (on cassette
l
tape and the transfer of this data through remote
programming)
Selection 5 : Serial communication parameters (for
l
data port A and data port B)
Selection
6: COS data printout
l
Selection
7: Set clock date/time.
l
Selection
8: SMDA programming (Configures the
l
Station Message Detailed Accounting feature. Also
refer to page 4-59 for an explaination of call costing
and SMDA reporting.)
Assign Area Codes / Prefixes to Bands
l
Enter band number O-7, enter 0 for no band, or
l
enter area codes or prefixes as 200-999.
Set Dial Time Limit (non-costed time allowed for
l
dialing to take place in l/l 0 min)
Set Answer Time Limlt (non-costed time allowed
l
for call to ring and be answered in l/l 0 min)
Define Department Numbers (Calls can be
l
costed on a department basis by department
basis.)
. Assign Stations to Departments (for costing by
department)
Set Account Codes (Calls can be identified by
l
account code for costing by catagory.)
Clear Account Codes
l
Enable Account Codes Wiih Verify (User
l
account code entry is compared
programmed account code.)
Enable Account Codes Without
l
account code entry is not compared with
programmed account code.)
Disable Account Codes
l
(LCD speakerphones can prompt users for
account code entry on incoming and/or outgoing
calls.)
Account Code Message Display Time
l
Maximum Account Code Length
l
Call Cost Exception Tables
l
. Automatic Reports (Call cost reports can be
produced for prfnting.)
SMDA Delete By Attendant (allows attendant to
l
delete SMDA records)
9: SMDR print parameters (enables Or
l
disables call cost reporting along with a Station
Message Detail Report).
Selectlon 10:
l
stations (For example; assign station extension 25
to station port 25. Also refer to the discussioin
provided on page 3-6.)
Selection 11:
l
(For example; assign line 1 to line port 1. Also refer
to the discussion on page 3-5.)
Selectlon 12:
l
individual features to be physically relocated without
losing their programming parameters and extension
asignments)
Selection 13:
l
individual features to be inhibited)
Selection 14:
l
enable all features inhibited with selection 13)
Selection 15:
l
messages for the LCD messaging and response
messaging
Selectlon 16:
l
the software release version of the system)
Line C.O.S. Programmlng
1. Line Type
2. Line Group Assignment (reads "Reserved" if no
hybrid strap is installed)
strap installed)
3. Line Dialing Mode
4. Line Privacy Release
5. Line Toll Restriction Table Assignments
Verify (User
6. Line Abandoned Hold Release Time
7. Set Up a Line ( Using a Model Line )
8. Assign Name to Line
9. Assign Line to Department
10. Exclusive Hold
11 .Voice Mail Line I.D.
12. D.I.S.D. Assignments
13. Return To Previous Menu
Enter Selection:

LINE COS MENU SELECTIONS

In each line COS menu selection, after choosing the
feature, enter all line port numbers which are to be
assigned to it.
Selection 1:
l
of the line port)
l
. COlPABX
4-88
Logical/physical assignments - lines
Automatic station relocation (allows
Feature inhibit programming (allows
Enable all inhibited features (will
LCD messages (programs the
features)
Software version number (identifies
Llne type (specifies the characteristics
Auxiliary (Configures port for installation of
external paging amplifier.)
(Typical line connection)
System Progamming
assignments -
