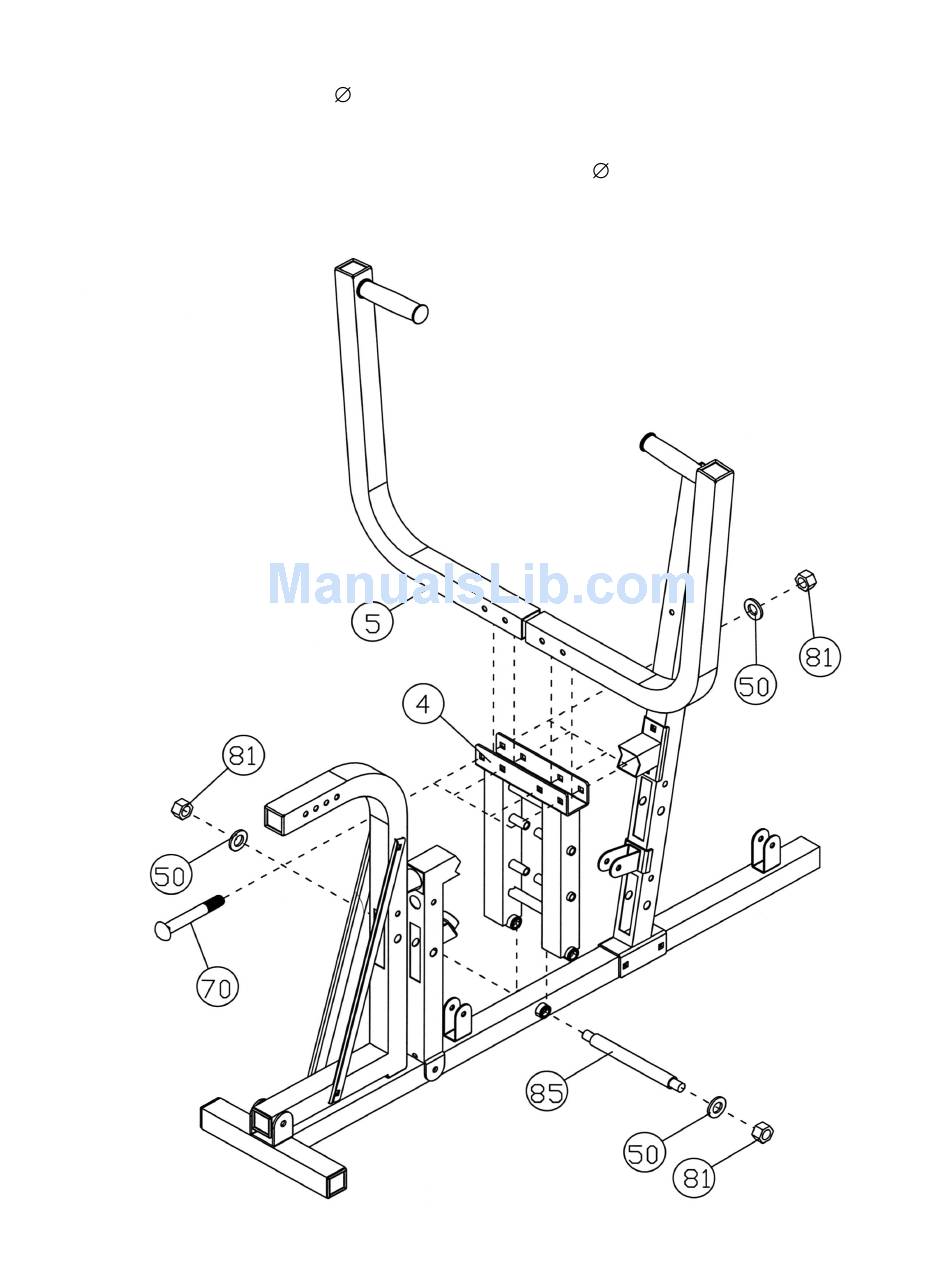

STEP 5 (See Diagram 5)
A.) Attach the Front Press Base (#4) to the Right Base Frame (#3). Secure it with a
M10 x 9 ¼" Axle (#85), two
(#81).
B.) Attach the two Front Presses (#5) to the Front Press Base (#4). Secure each
Front Press with two M10 x 2 ¾" Carriage Bolts (#70),
M10 Aircraft Nuts (#81).
¾" Washers (#50), and two M10 Aircraft Nuts
8
¾" Washers (#50), and
DIAGRAM 5
