Impex MWM 1800 Owner's Manual page 7

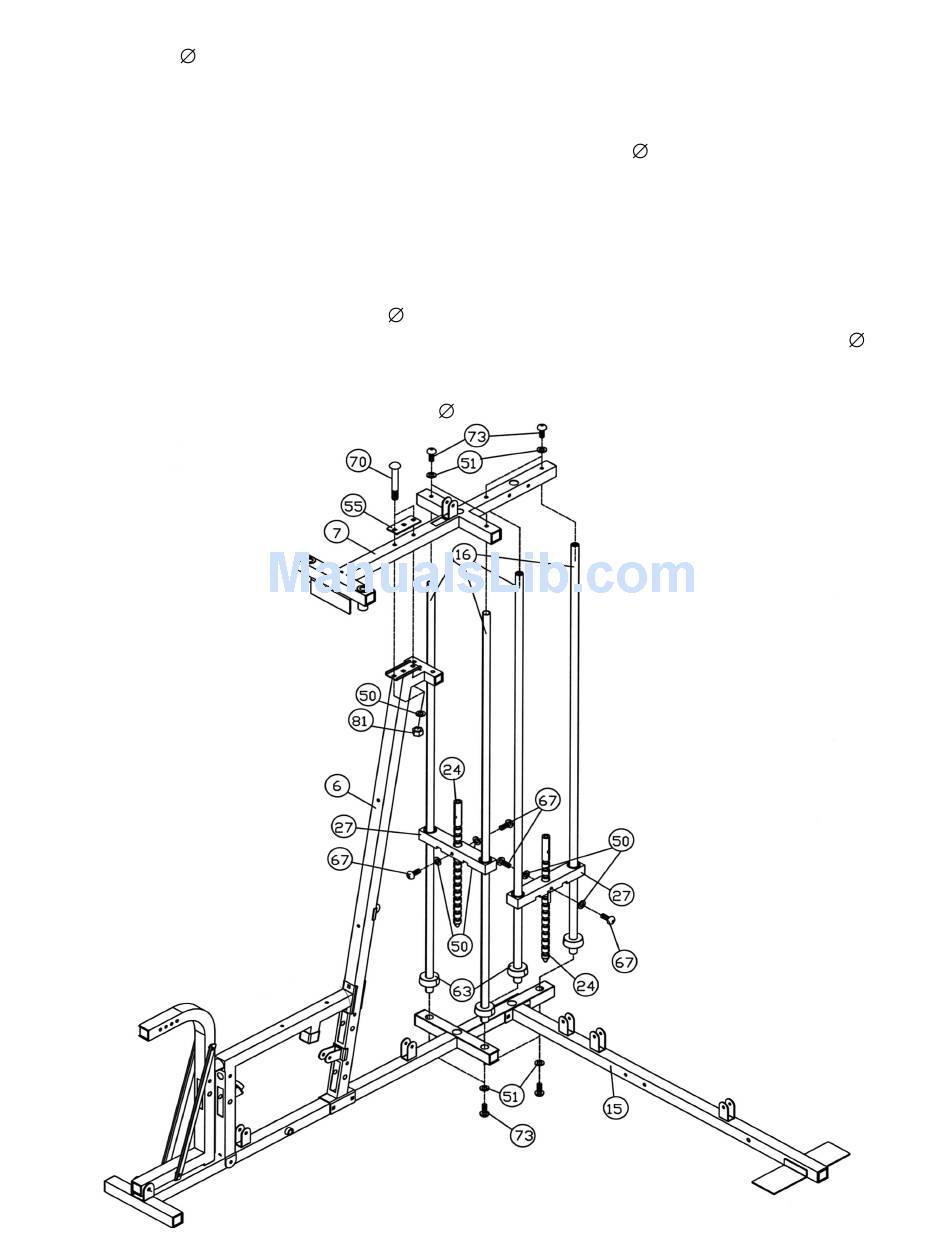

STEP 3 (See Diagram 3)
A.) Align four 1" Rubber Bumpers (#63) to the holes on the Right Base Frame (#3). Insert the
four Guide Rods (#16) through the Rubber Bumpers into the holes on the Right Base Frame
(#3). Slide two Selector Stems (#27) onto the Guide Rods. Insert a Selector Rod (#24)
through the hole on each Selector Stem (#27). Secure each Selector Rod (#24) to the
Selector Stem (#27) with two M10 x 1" Allen Bolts (#67) and
note this machine comes with 18 plates, 9 to each stack. You can purchase another 5 more
plates (Model no. WK51) in the future to increase the weights. It is strongly recommended to
spay lubricant such as WD-40 on the two Guide Rods to minimize friction.
B.) Attach the Right Upper Frame (#7) to the top of Right Vertical Beam (#6), and the four Guide
Rods (#16). Make sure the Guide Rods are inserted into the holes on the Upper Frame.
C.) Secure the Upper Frame (#7) to the Right Vertical Beam (#6) with one Bracket (#55), two
M10 x 2 ¾" Carriage Bolts (#70),
D.) Secure the Upper Frame to the Guide Rods with four M12 x 1" Allen Bolts (#73) and
Washers (#51).
E.) Carefully tip over the machine with a help of another person. Secure the Guide Rods (#16)
to the Right Base Frame (#3) with four
¾" Washers (#50), and M10 Aircraft Nuts (#81).
1" Washers (#51) and M12 x 1" Allen Bolts (#73).
6
¾" Washers (#50). Please
1"
