ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.
STEP 1
(See Diagram 1)
A.) Attach the Left Base Frame (#15) to the Right Base Frame (#3). Secure them with one
Bracket (#55), two M10 x 2 ¾" Carriage Bolts (#70), two
Aircraft Nuts (#81).
¾" Washers (#50), and two M10
4

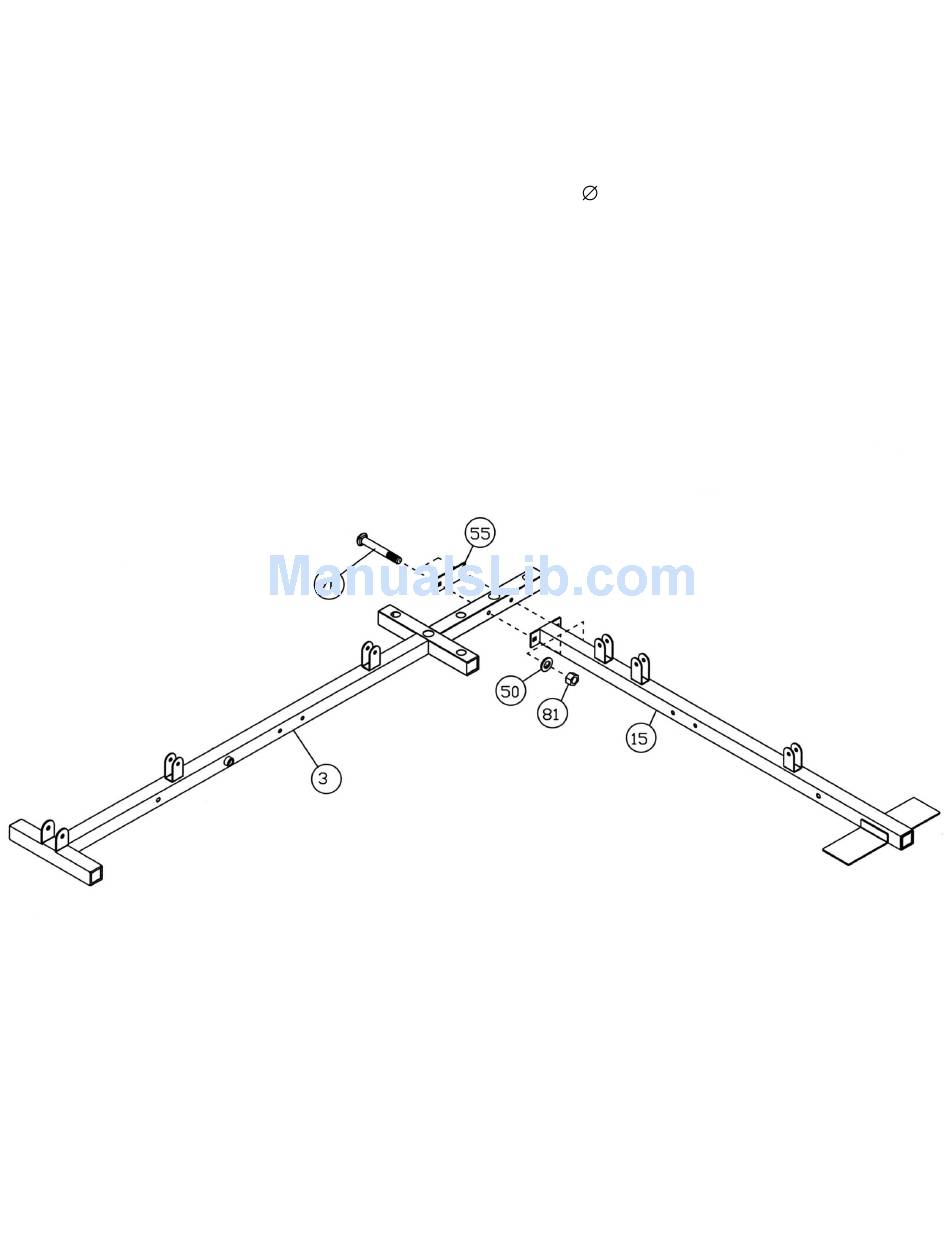

DIAGRAM 1
