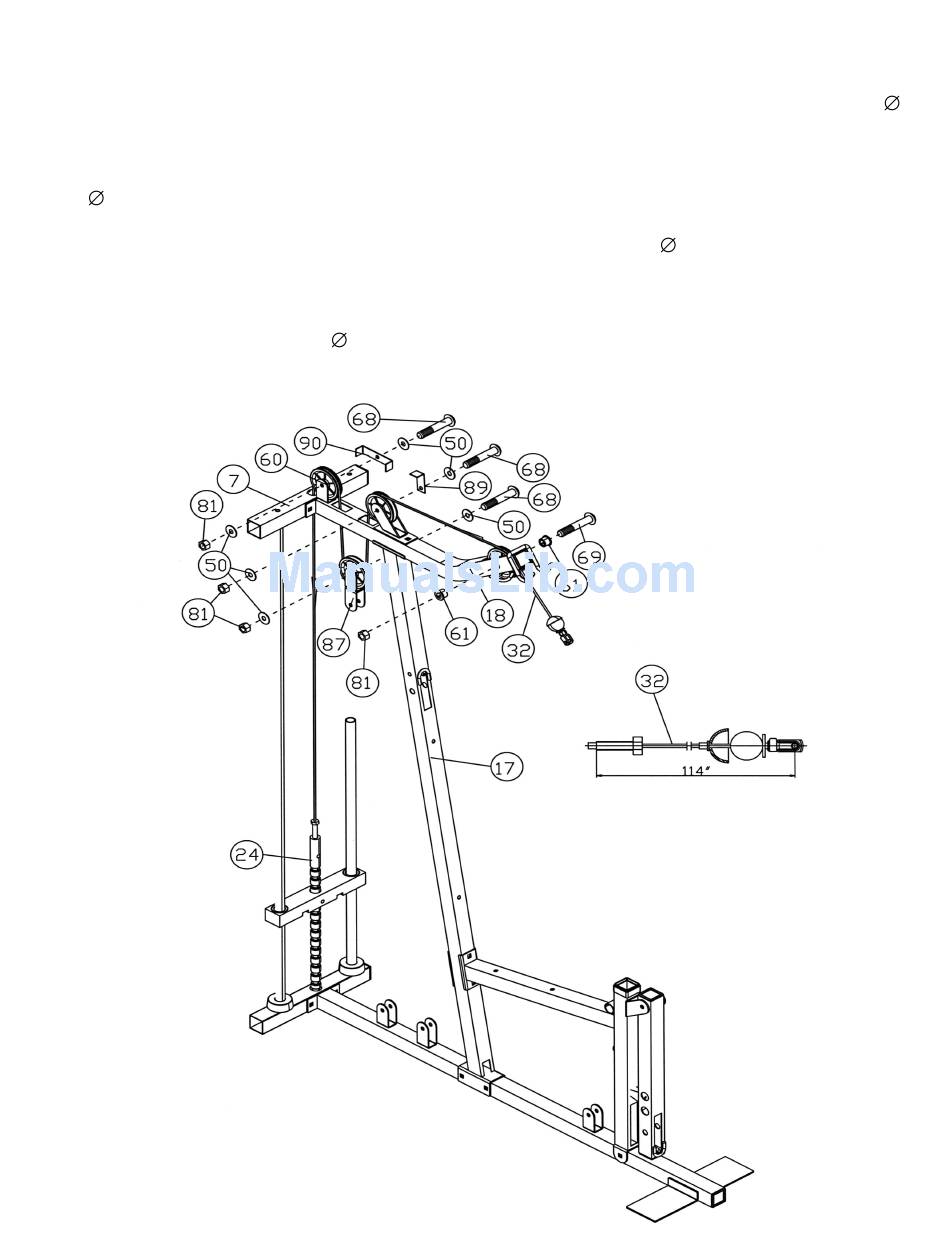

STEP 10 (See Diagram 10 & Cable Loop Diagram)
A.) Attach the 114" Upper Cable (#32) to the front opening on the Left Upper Frame (#18).
NOTE: The Ball Stopper on the Cable needs to be underneath the Frame.
B.) Attach a Pulley (#60) to the opening. Secure it with one M10 x 2 ½" Allen Bolt (#69), two
7/8" x ½" Pulley Bushings (#61), and one M10 Aircraft Nut (#81).
C.) Draw the Cable towards the back of the machine to the Pulley Bracket (#20). Install a Pulley
to the Bracket. Secure it with one M10 x 2" Allen Bolt (#68), one L-shaped Bracket (#89), two
¾" Washers (#50), and one M10 Aircraft Nut (#81).
D.) Pull the Cable over the Pulley then downward. Attach a Pulley to a Double Floating Pulley
Bracket (#87). Secure it with one M10 x 2" Allen Bolt (#68), two
one M10 Aircraft Nut (#81). Let the Pulley hanging for now.
E.) Pull the Cable around the Pulley then upward to the open bracket on the back of the Upper
Frame (#18). Attach a Pulley to the bracket. Secure it with one M10 x 2" Allen Bolt (#68), U-
shaped Bracket (#90), two
F.) Pull the Cable around the Pulley then downward to the Selector Rod (#24). Thread the bolt
tip of the Cable into the Selector Rod.
¾" Washers (#50), and one M10 Aircraft Nut (#81).
15
¾" Washers (#50), and
