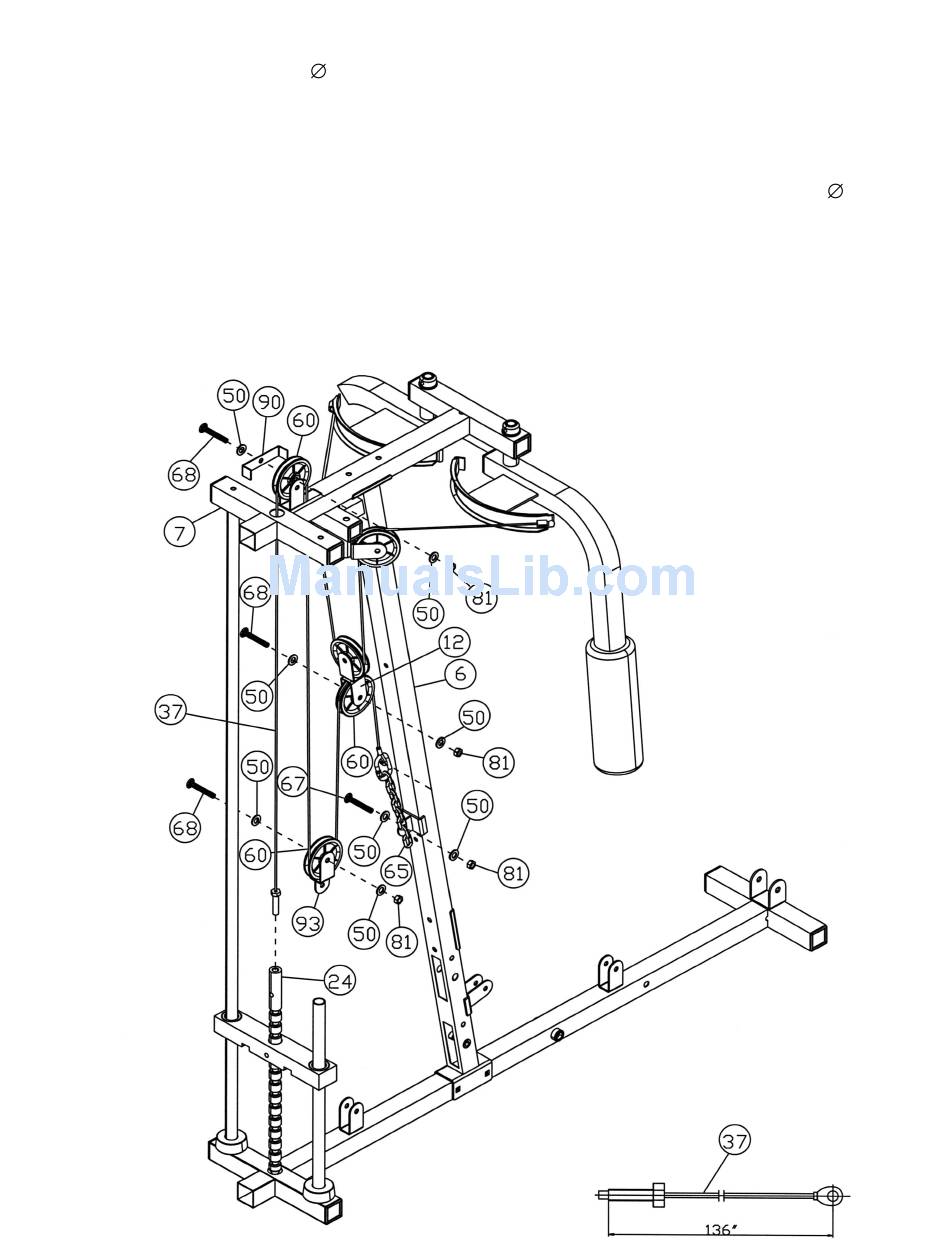

STEP 8 (See Diagram 8 & Cable Loop Diagram)
A.) Attach a Chain (#65) to the Right Vertical Beam (#6). Secure the Chain with one M10 x
1" Allen Bolt (#67), two
one end of the 136" Butterfly Support Cable (#37) to the Chain using a C-clip (#39).
NOTE: After complete installing all the cables, check the tightness of the cable loop
system. If the cable is too loose, shorten the chain.
B.) Draw the Cable to the Angled Double Pulley Bracket (#12) previously installed.
C.) Attach a Pulley to the Bracket. Secure it with one M10 x 2" Allen Bolt (#68), two
Washers (#50), and one M10 Aircraft Nut (#81).
D.) Pull the Cable around the Pulley then downward. Repeat Step C above to install a
Pulley to the Single Floating Pulley Bracket (#93). Draw the Cable underneath the
Pulley then upward through the Right Upper Frame (#7) to the open Bracket on the top.
E.) Attach a U-shaped Bracket (#90) to the Bracket. Repeat Step C above to install a
Pulley. Draw the Cable over the Pulley then pull the Cable downward to the Selector
Rod (#24). Thread the tip bolt of the Cable into the Selector Rod.
3/4" Washers (#50), and one M10 Aircraft Nut (#81). Attach
12
¾"
